HUBBELL WIRING DEVICE-KELLEMS HBL415W Straight Blade Receptacle, 5-15R, 15 A,

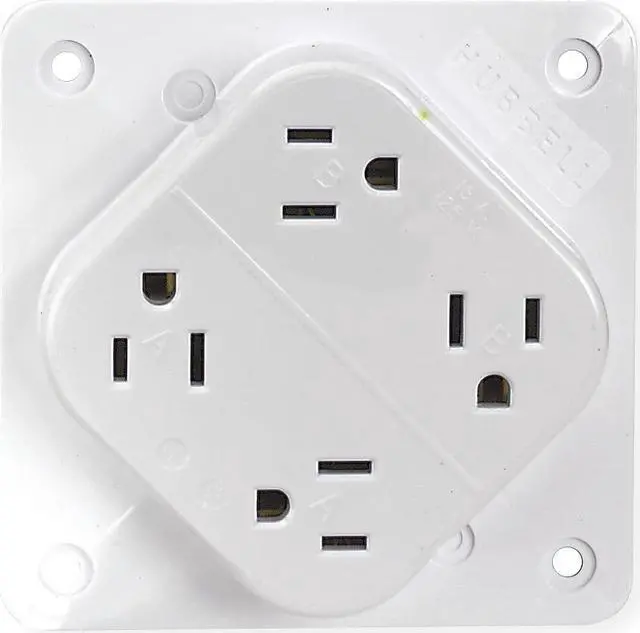

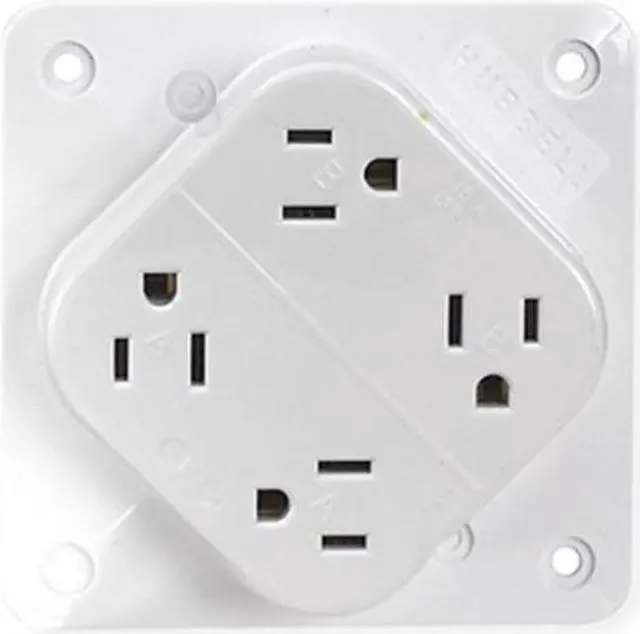

The HUBBELL 4-PLEX Quad Receptacle is a surface mount electrical outlet suitable for commercial and industrial applications. It provides four NEMA 5-15R outlets, rated for 15A and 125V AC, enabling connection of up to four devices at one outlet. The receptacle features screw terminal connections with anchor hole and loop design for secure terminations, triple wipe brass contacts for reliable connectivity, and accessible break-off tabs for split wiring configurations.

Key Features of the HUBBELL 4-PLEX Quad Receptacle:

• Outlet Configuration: Four NEMA 5-15R straight blade outlets in a quad arrangement


• Amperage/Voltage Rating: Rated for 15A at 125V AC


• Mounting Type: Surface mount installation suitable for indoor dry locations


• Material Construction: Polycarbonate housing with brass power contacts


• Wiring Method: Back-wired screw terminals accommodate #1412 AWG copper conductors


• Grounding: Grounded device with #8-32 brass ground screw


• Circuit Options: Accessible break-off tabs for split wiring configurations across all four outlets if needed


• Performance Ratings: Dielectric voltage withstands up to 2,000V minimum; current interrupting capability tested at fault level of 1000A per UL498; flammability rated UL94 V-2


• Standards Compliance: Listed to UL Standard 498 File E2186; CSA Certified C22.2 No.42 File 285; NEMA WD-6 compliant
