HUBBELL WIRING DEVICE-KELLEMS HBL8200SGRA Duplex Straight Blade Receptacle,
- The brand for this item is HUBBELL WIRING DEVICE-KELLEMS
- Orders $75 or more ship free
- This item ships directly from Zoro
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

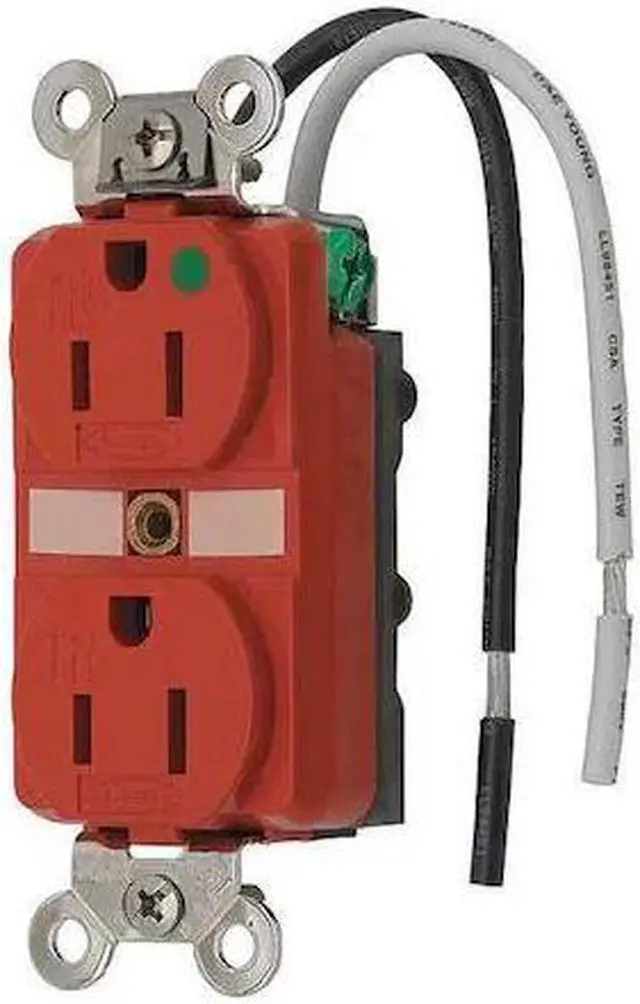

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R RD is an extra heavy duty, hospital grade duplex receptacle suitable for use in commercial and institutional settings. It features a tamper-resistant mechanism and integral wire leads.
Key Features of the HUBBELL 15A Duplex Receptacle:
- Amperage/Voltage: Rated for 15 A at 125 VAC
- NEMA Configuration: 5-15R, standard duplex outlet type
- Device Grade: Extra heavy duty hospital grade specification
- Tamper Resistant: Built-in tamper-resistant style
- Grounding System: Four-point grounded design with one-piece nickel-plated brass ground strap
- Wire Connection Type: Integral wire leads support fast installation; accommodates #12#10 AWG copper wire only
- Mounting Type: Flush mount with included mounting hardware
- Material & Construction: Impact resistant thermoplastic housing and face; UL94V-0 flammability rating
- Operating Temperature Range: -40°F to +167°F (maximum continuous use at 75°C)
- Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL498 File E2186 listed
