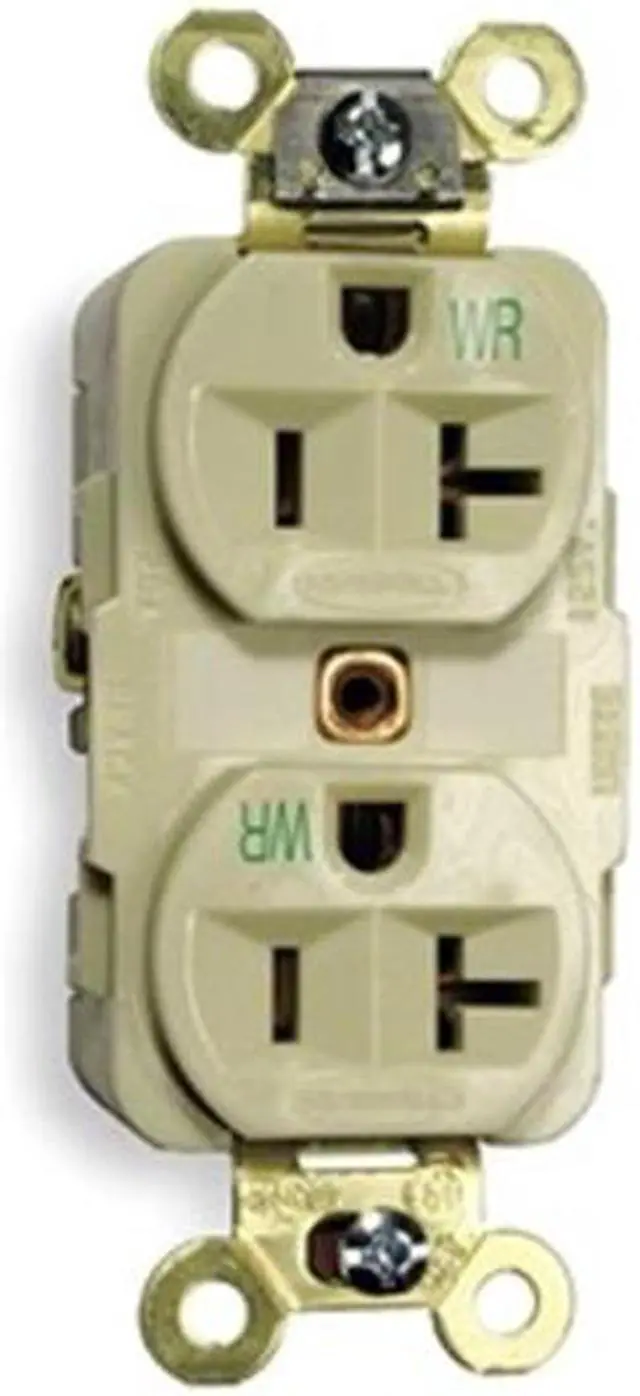

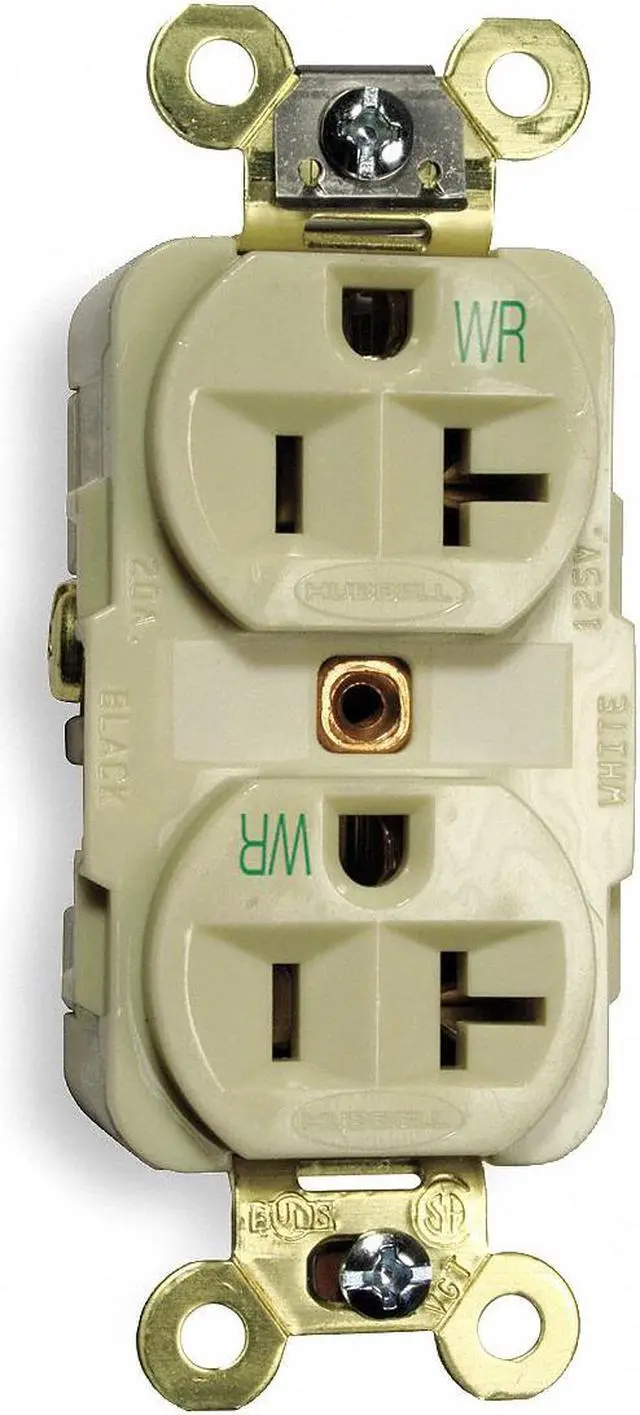

HUBBELL WIRING DEVICE-KELLEMS HBL5362IWR Duplex Straight Blade Receptacle,

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R IV is a traditional duplex straight blade receptacle suitable for heavy-duty applications in accordance with specification-grade requirements. It includes weather-resistant construction; intended for use in industrial environments as specified by manufacturer guidelines. The device supports both back and side wiring methods with screw terminals, accommodates #12 to #10 AWG copper wire, and provides grounding via an integral ground strap. This receptacle meets multiple industry standards including UL, CSA, Federal Specification W-C-596, and NEMA WD-6.

Key Features of the HUBBELL 20A Duplex Receptacle 125VAC 5-20R IV:

• Amperage/Voltage: Rated for 20 A at 125 VAC


• NEMA Configuration: 5-20R (2-pole, 3-wire grounded)


• Weather Resistant: Rated as weather resistant per manufacturer specifications


• Material Construction: Nylon face/top with reinforced PET base; nickel-plated brass contacts


• Wiring Method: Back and side wired screw terminals support stranded or solid copper wire (#12#10 AWG)


• Mounting Type: Flush mount with included mounting hardware


• Face Style: Face includes groove pattern for identification purposes


• Circuit ID Face & Deep Body Design: Deep body design accommodates different installation scenarios


• Dielectric Strength: Withstands minimum of 2,000V dielectric voltage


• Certain Certifications Met: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification W-C-596G compliant
