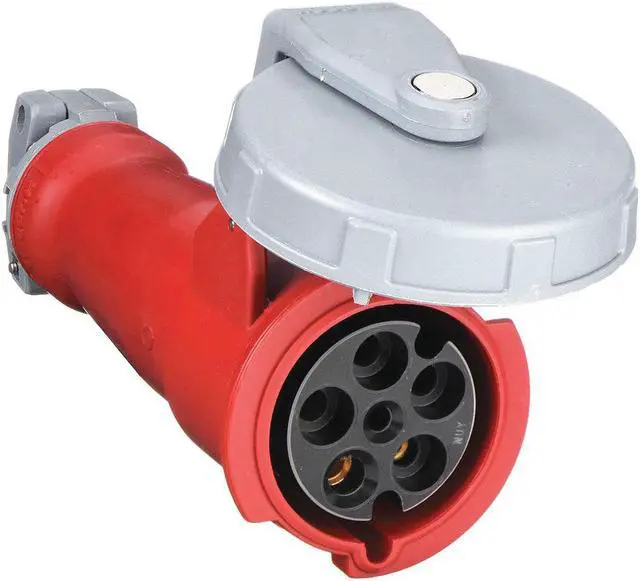

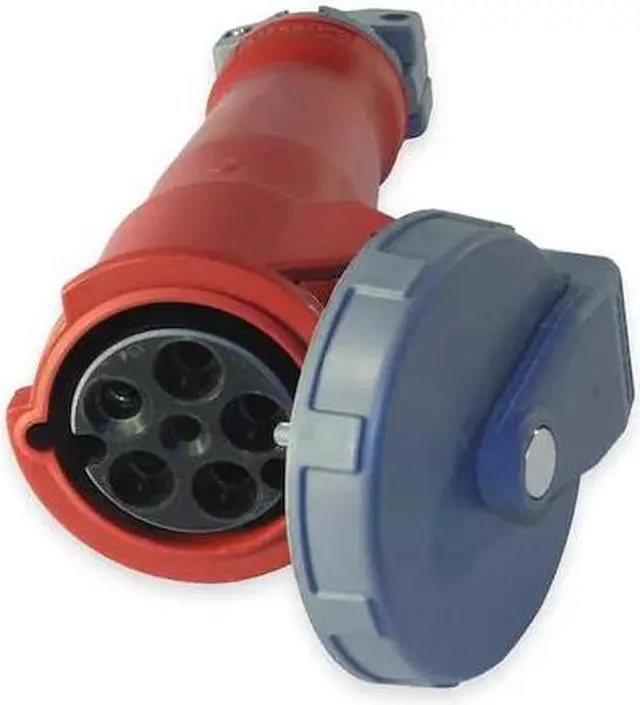

HUBBELL WIRING DEVICE-KELLEMS HBL560C7W Watertight Pin & Sleeve Connector, 60

The HUBBELL IEC Pin and Sleeve Connector is a rated for 60A and 277/480V AC applications in industrial environments. It features an insulated non-metallic housing made from Zytel 801 nylon and includes a self-closing gasketed cover. It accommodates #8 AWG to #2 AWG conductors with pressure terminal screws for secure connectivity, supports three-phase (3Y) wiring configurations with five-wire grounding.

Key Features of the HUBBELL IEC Pin and Sleeve Connector:

• Current/Voltage Rating: Rated for 60 amps at 277/480V AC


• Body Material: Housing made from Zytel 801 nylon


• Environmental Protection: Meets IP68/IP69K standards


• Cable Compatibility: Accepts cable diameters from 0.5 in to 1.45 in; conductor range #8 AWG to #2 AWG


• Connection Type: Screw terminals provide reliable wire connection


• Features: Color-coded housing for identification, self-closing gasketed cover, shrouded contacts, spring-loaded cap


• Standards Compliance: CSA Certified LR280C; UL Classified to IEC 60309-1/-2; UL E146033 listed


• Temperature Range: Operates continuously from -40°C up to +75°C without impact (-25°C with impact)
