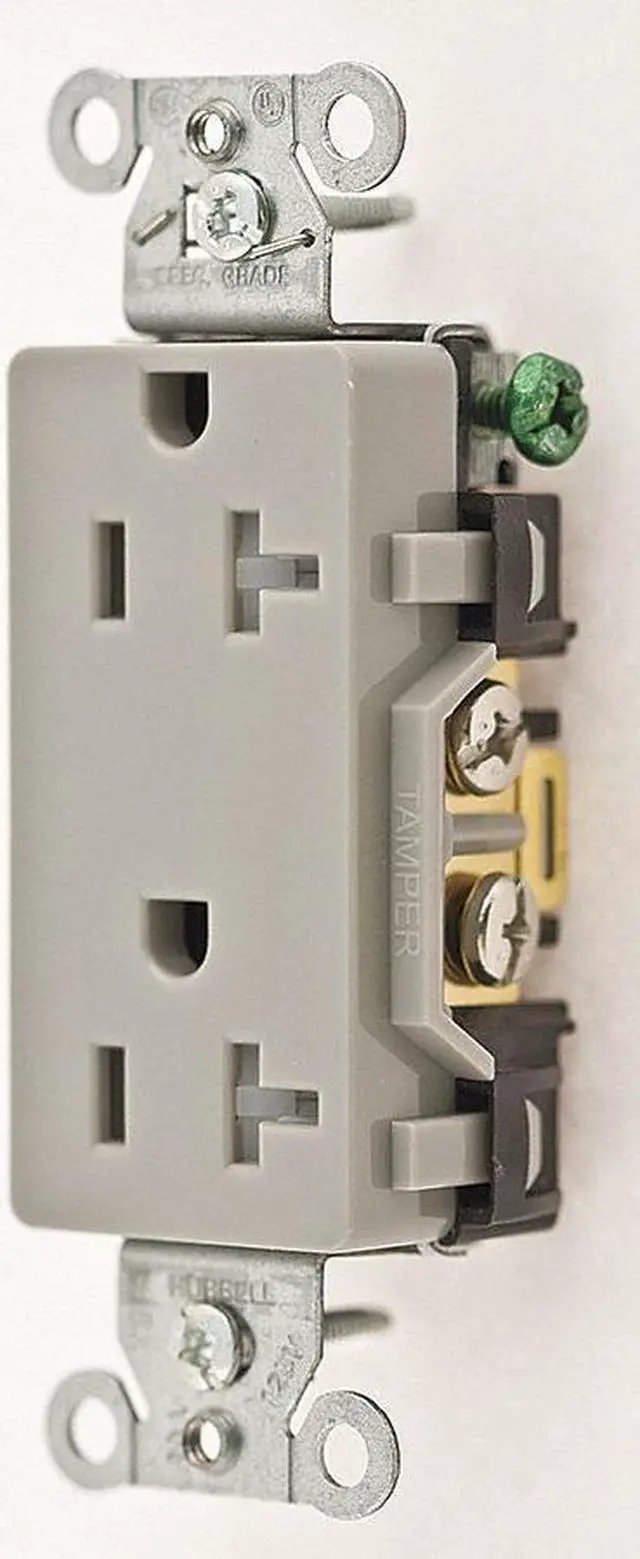

HUBBELL WIRING DEVICE-KELLEMS DR20GRYTR Duplex Straight Blade Receptacle,

The HUBBELL Receptacle is a 20A, 125V AC decorator duplex outlet suitable for flush mounting in commercial and industrial settings. It features a tamper-resistant shutter mechanism.

Key Features of the HUBBELL 5-20R Decorator Duplex Receptacle:

• Amperage/Voltage: Rated for 20A at 125V AC


• NEMA Configuration: 5-20R, single phase, polarized, grounded (2-pole, 3-wire)


• Tamper Resistant: Built-in shutters


• Mounting Type: Flush mount; includes grounding staple and mounting hardware


• Material Construction: Nylon housing and base; brass power contacts; steel-zinc plated mounting screws


• Wiring Method: Supports both back and side wiring for #12#10 AWG copper conductors


• Certification & Standards: UL Listed (File E2186), CSA Certified C22.2 No.42, NEMA WD-6 compliant


• Operating Temperature Range: -40°F to 167°F (-40°C to +75°C)
