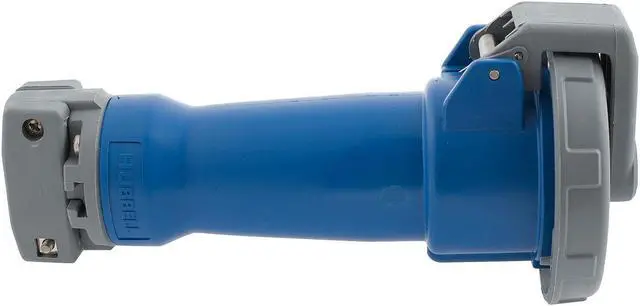

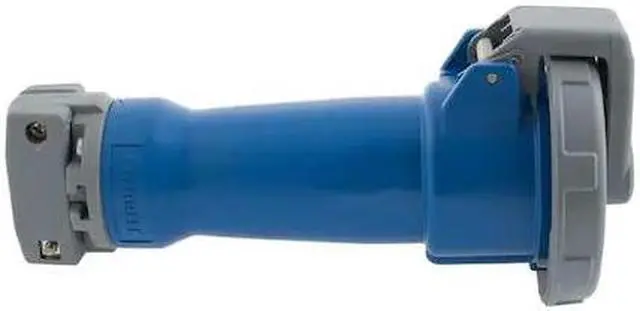

HUBBELL WIRING DEVICE-KELLEMS HBL330C6W Watertight Pin & Sleeve Connector, 30

The HUBBELL IEC Pin and Sleeve Connector is an electrical connector rated for 30A and 250V AC, intended for use in industrial environments. Rated for 30A and 250V AC, this connector features a rugged, insulated non-metallic housing made from Zytel 801 nylon and PBT, constructed with materials that are resistant to corrosion, impact, and moisture. It supports a conductor range of #12 AWG to #8 AWG with pressure terminal screws for secure connectivity. The device meets multiple industry standards including CSA Certified LR280C and UL Classified to IEC 60309-1/2.

Key Features of the HUBBELL IEC Pin and Sleeve Connector:

• Current/Voltage Rating: Rated for 30A at 250V AC single phase


• Ingress Protection: Rated IP68/IP69K


• Material: Insulated body with Zytel 801 nylon housing; corrosion-resistant self-closing gasketed cover


• External cord grip designed to provide strain relief on conductors


• Wire Connection Type: Screw terminals compatible with #12#8 AWG wire sizes


• Number of Poles/Wires: Two poles, three wires (3-wire grounding)


• Operating temperature range: -40°C to +75°C


• Color Coded Housing: Blue color coding per IEC standards allows easy voltage identification


• Standards Compliance: CSA Certified LR280C; UL Classified to IEC 60309-1/2; UL E146033 listed
