HUBBELL WIRING DEVICE-KELLEMS HBL8210GY Straight Blade Receptacle, 5-15R, 15 A,

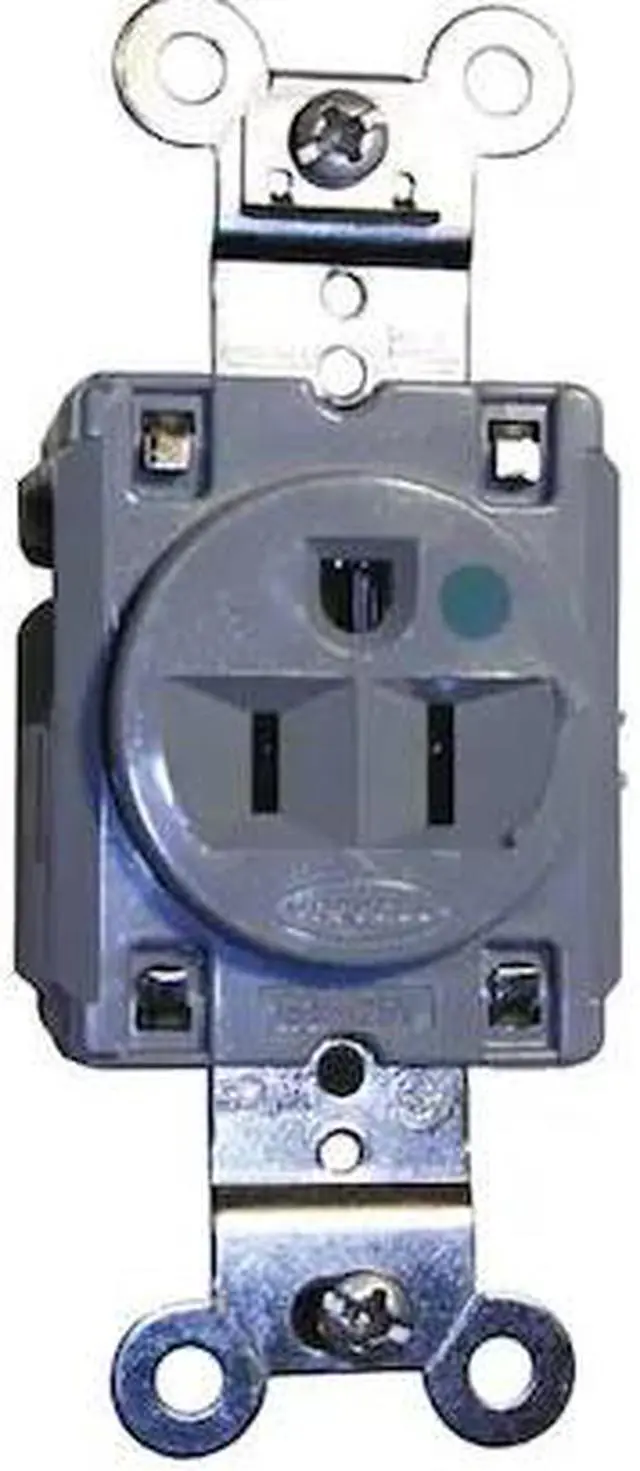

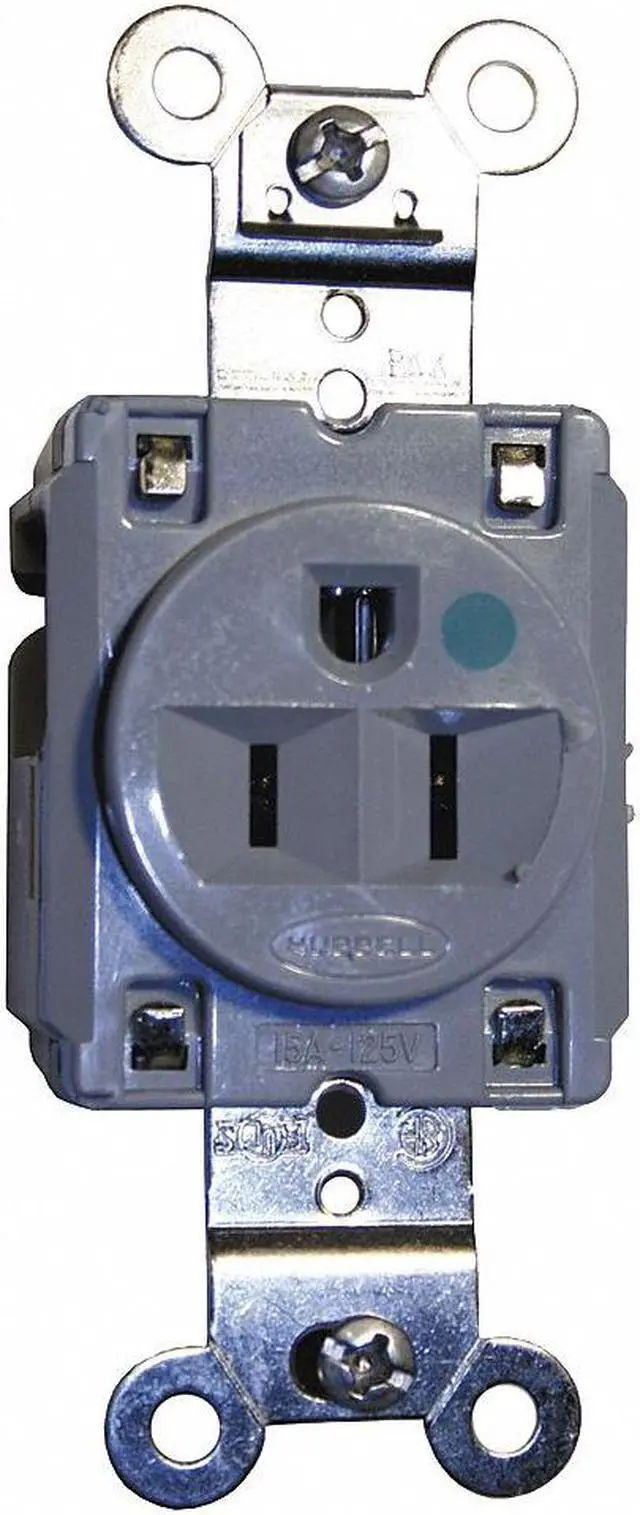

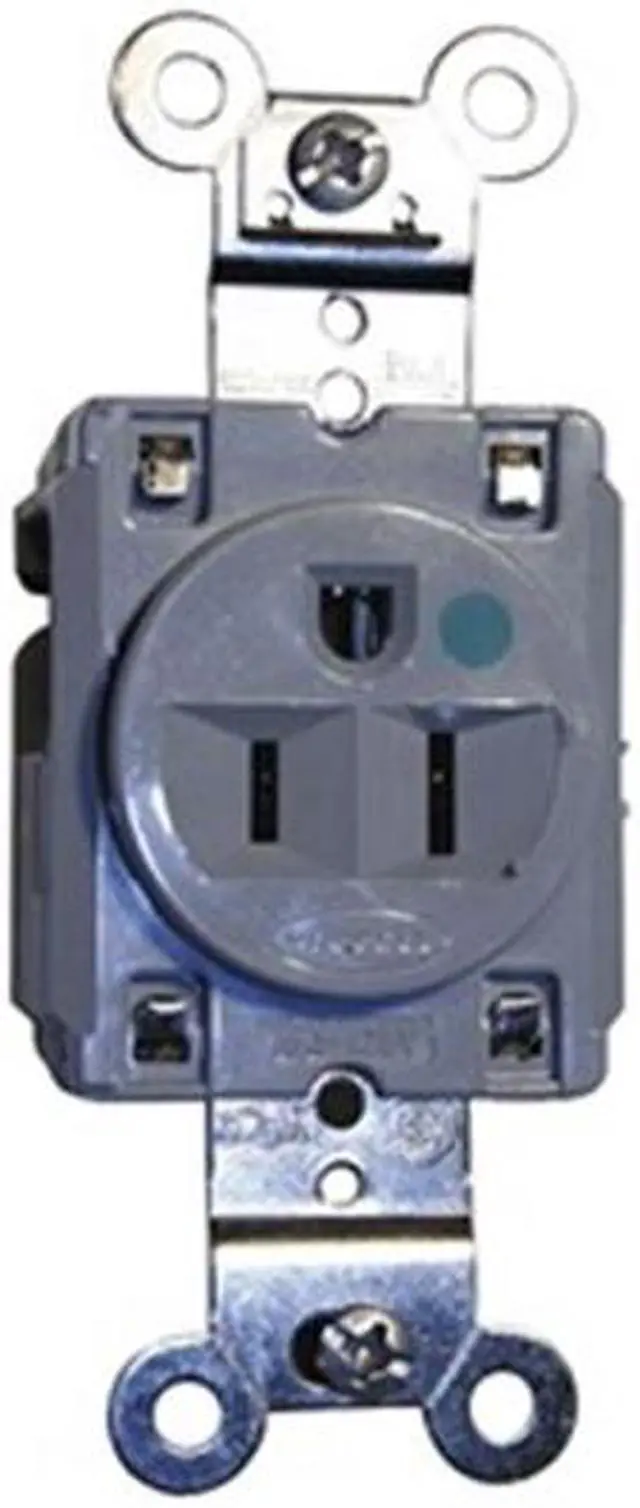

The HUBBELL Hospital Grade Single Receptacle is a 15A, 125V AC flush mount outlet suitable for installation in hospital and healthcare environments. This single NEMA 5-15R receptacle features a grounded design with both back and side wired screw terminals, supporting #14 to #10 AWG copper conductors. The device incorporates an impact-resistant nylon housing and complies with UL requirements for hospital grade devices.

Key Features of the HUBBELL Hospital Grade Single Receptacle:

• Amperage/Voltage: Rated for 15A at 125V AC


• NEMA Configuration: Single outlet, NEMA 5-15R


• Mounting Type: Flush mount with included mounting hardware


• Wiring Method: Back and side wired screw terminals accommodate #14#10 AWG copper wire


• Contact Material: Brass contacts with nickel-plated bypass contact design


• Grounding System: Four-point grounding system


• Material Construction: Impact modified PBT/reinforced PET body; nylon faceplate


• Dielectric Strength & Flammability Ratings: Dielectric strength: minimum 2,000V; Flammability ratings: faceplate UL94V-2; base UL94V-0 and UL94-5VA

KEY_TAB

- Operating Temperature Range: -40°C (w/o impact) to +75°C continuous operation

- Certifications & Standards: CSA Certified C22.2 No.42 File 285; Federal Specification W-C-596; NEMA WD-6; UL Listed to UL498 File E2186
