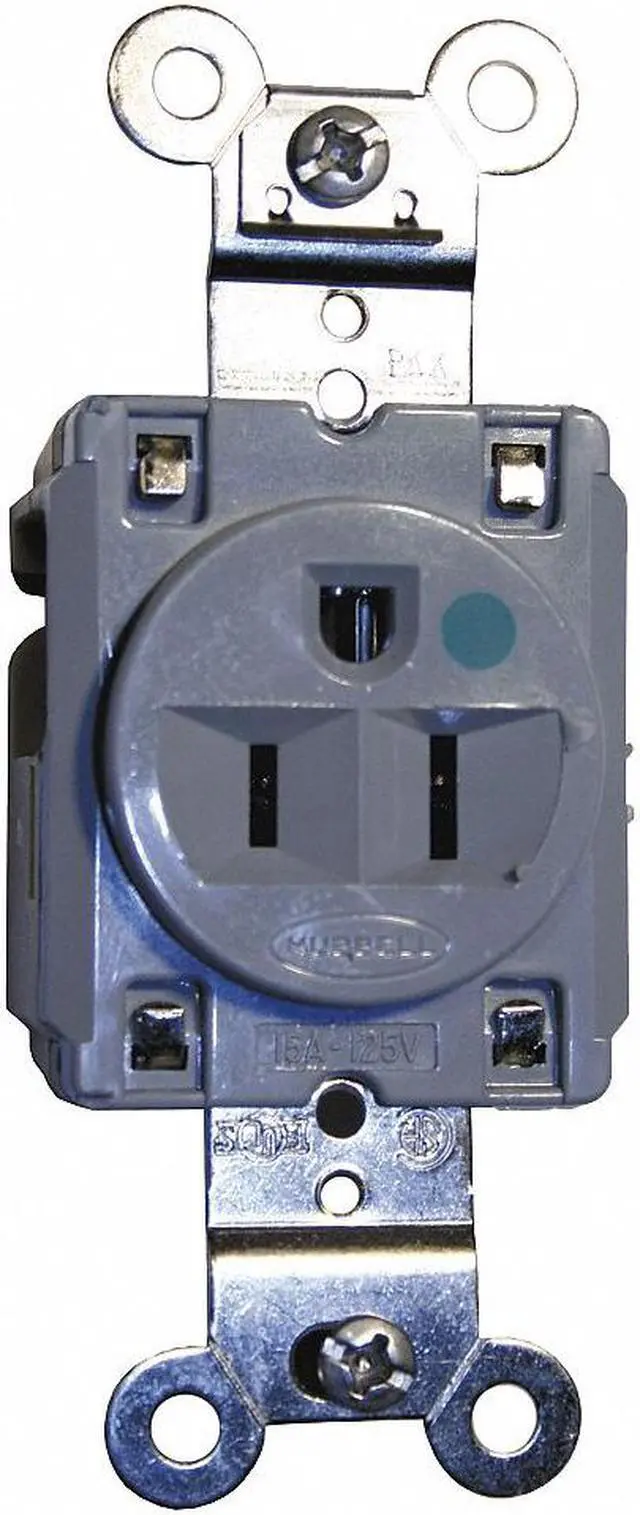

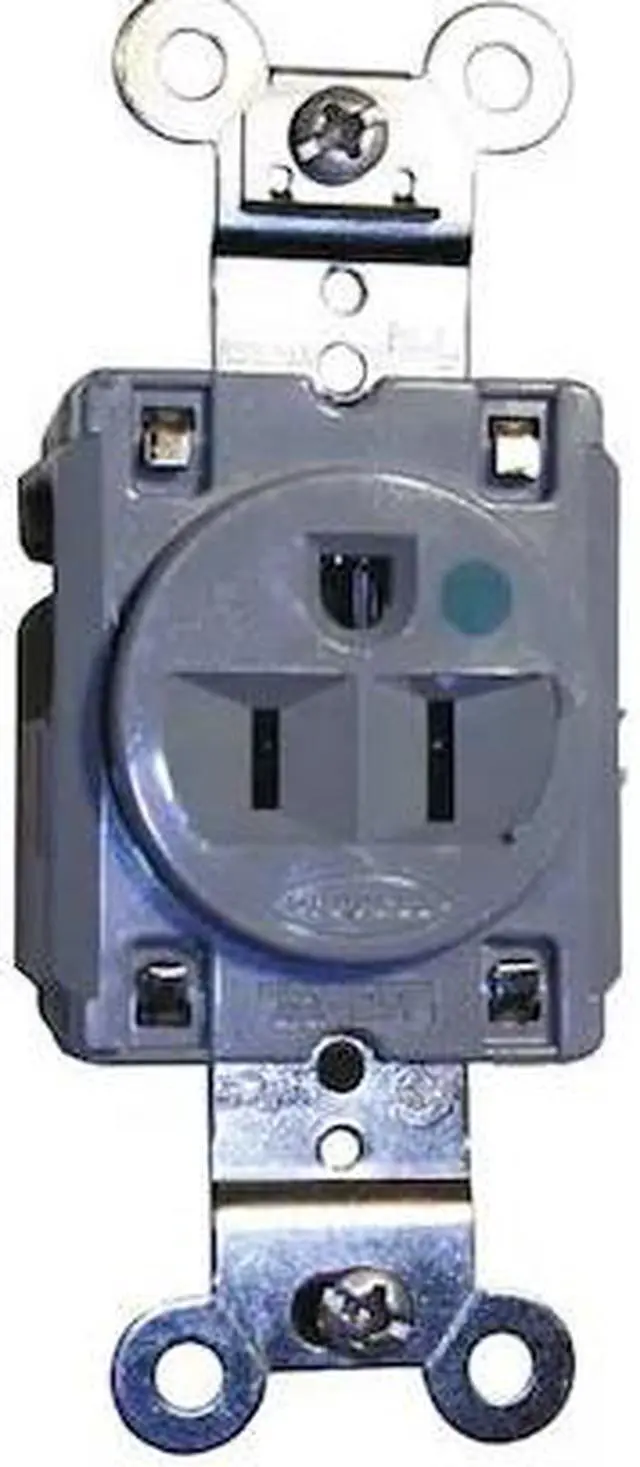

HUBBELL WIRING DEVICE-KELLEMS HBL8310GY Straight Blade Receptacle, 5-20R, 20 A,

The HUBBELL 5-20R Hospital Grade Receptacle is a single, flush-mount electrical outlet rated for 20A and 125V AC. Suitable for hospital-grade applications requiring heavy-duty performance, this receptacle features a grounding design and supports both back and side wiring with screw terminals. It meets UL requirements for hospital devices; includes a nickel-plated brass integral ground strap and bypass contact design.

Key Features of the HUBBELL 5-20R Hospital Grade Receptacle:

• Amperage/Voltage: Rated for 20A at 125V AC


• NEMA Configuration: Single outlet, NEMA 5-20R


• Mounting Type: Flush mount; includes mounting hardware


• Wiring Method: Back and side wired screw terminals accommodate #12#10 AWG copper wire


• Contact Material: Brass contacts with nickel-plated bypass contact design intended to maintain consistent contact pressure


• Grounding System: Four-point grounding system designed to support low-resistance ground continuity


• Material Construction: Nylon/reinforced thermoplastic polyester housing; deep face housing constructed from materials rated as impact resistant


• Operating Temperature Range: -40°C to +75°C (without impact)


• Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186
