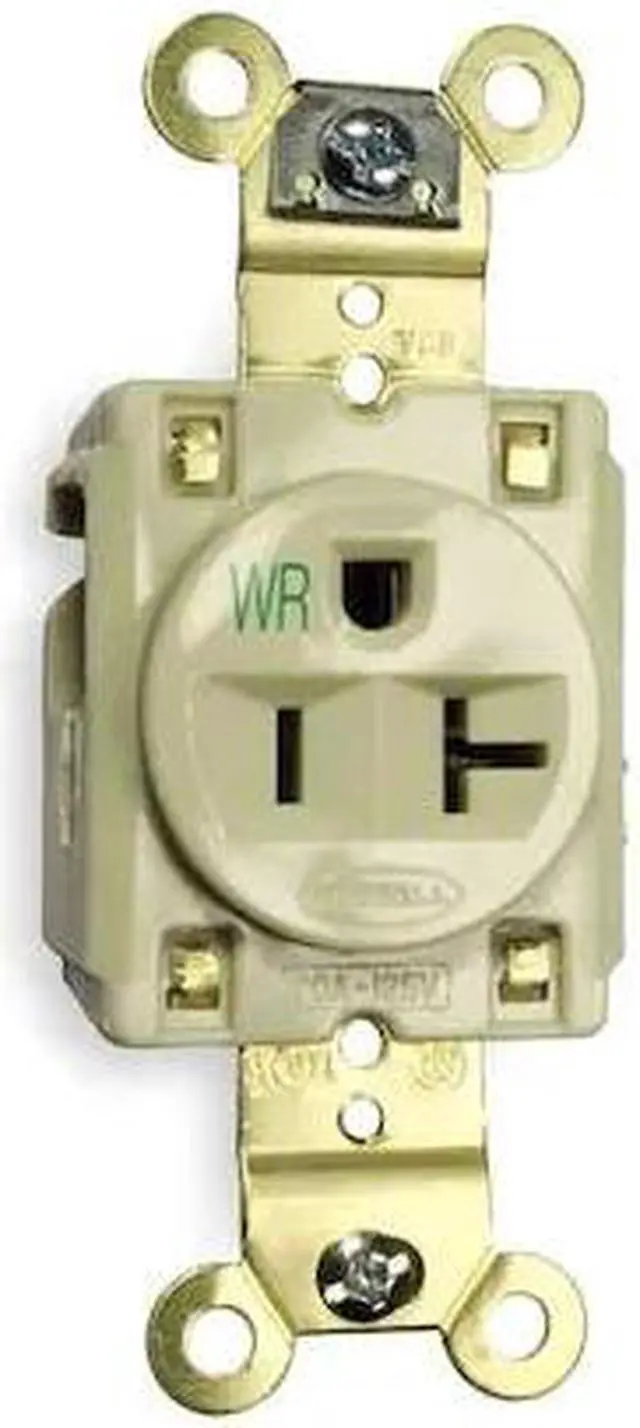

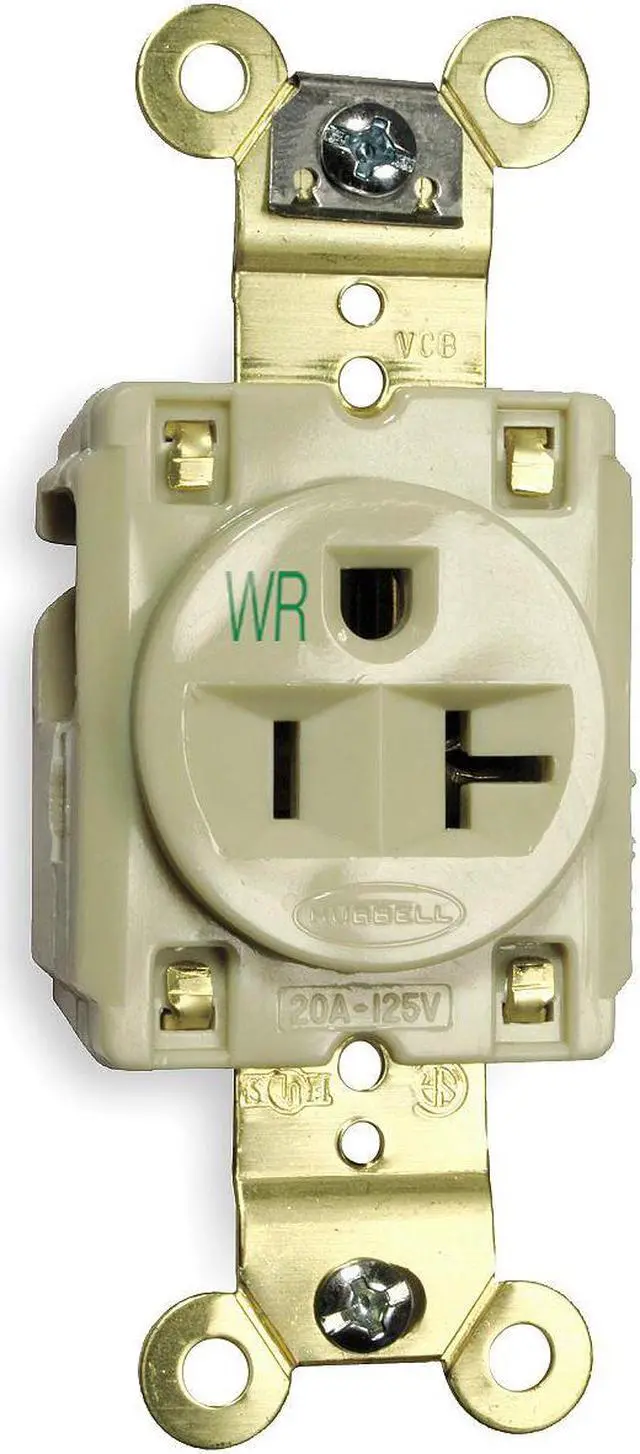

HUBBELL WIRING DEVICE-KELLEMS HBL5361IWR Straight Blade Receptacle, 5-20R, 20

The HUBBELL HBL5262 is a single, flush mount receptacle rated for 20A and 125V AC, and is intended for industrial applications. It features a NEMA 5-20R configuration and is constructed with a nylon face and reinforced PET base. The device supports both back and side wired screw terminals for flexible installation options and includes grounding capabilities.

Key Features of the HUBBELL HBL5262 Receptacle:

• Amperage/Voltage: Rated for 20A, 125V AC


• NEMA Configuration: 5-20R, single outlet


• Mounting Type: Flush mount with included mounting hardware


• Wiring Method: Back or side wired screw terminals; accommodates #12#10 AWG copper wire


• Material Construction: Nylon face, reinforced PET base; nickel-plated brass contacts


• Weather Resistant: Rated for use in specified environmental conditions as per manufacturer specifications


• Grounding: Includes stainless steel auto ground clip and grounding clip


• Certification & Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification W-C-601, NEMA WD-6 compliant


• Operating Temperature Range: -40°C to +75°C continuous operation without impact


• Dielectric Strength & Flammability Rating: Withstands minimum 2,000V; UL94 V-0/V-2 flammability rating on components
