HUBBELL WIRING DEVICE-KELLEMS HBL5361W Straight Blade Receptacle, 5-20R, 20 A,

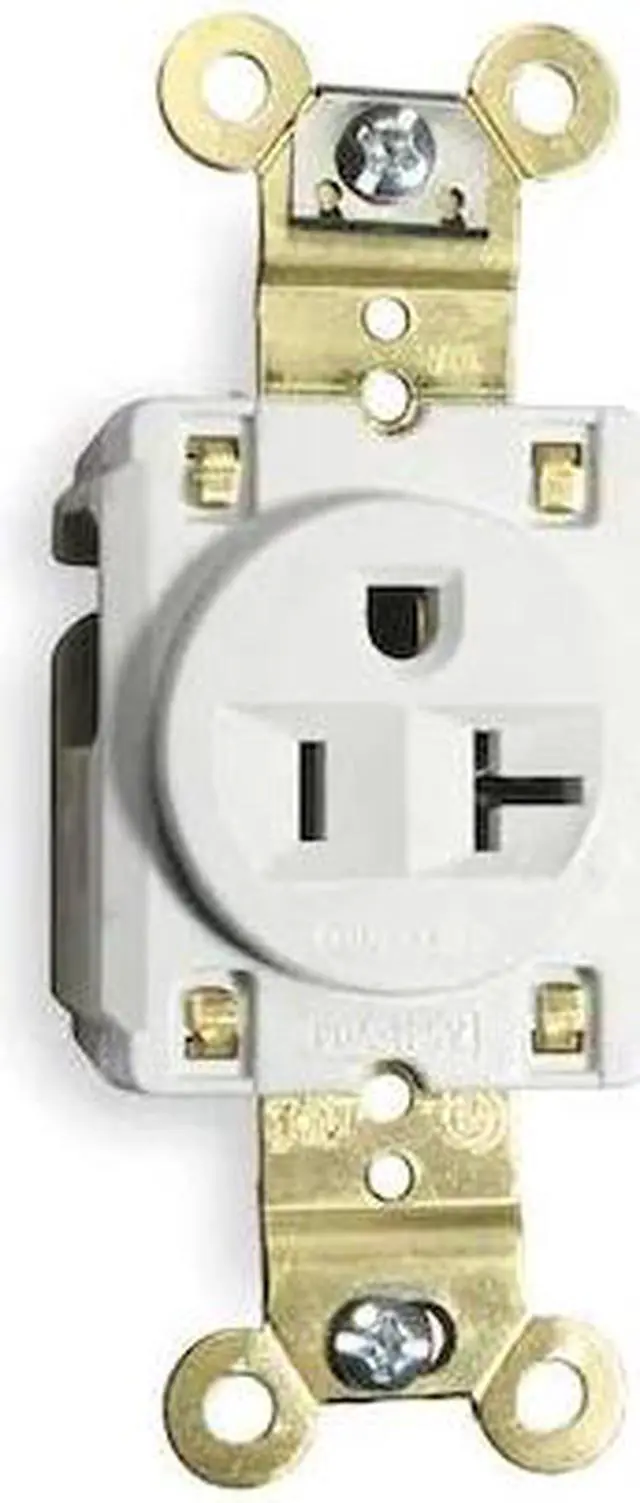

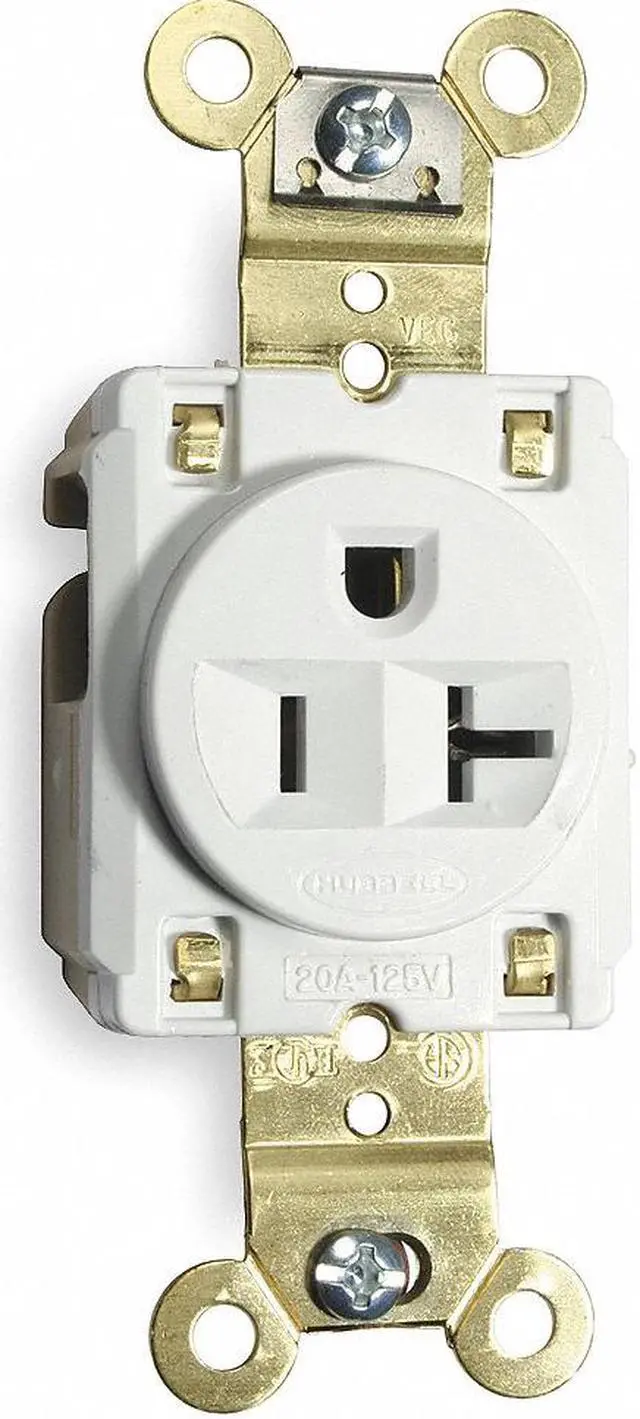

The HUBBELL HBL5262 is a single, flush mount receptacle rated for 20A and 125V AC, rated as specification grade. This NEMA 5-20R outlet features a traditional face style with finder groove design and is intended for use in industrial environments. It accommodates back and side wiring methods with screw terminals, accommodating #12 to #10 AWG copper conductors.

Key Features of the HUBBELL HBL5262 Receptacle:

• Amperage/Voltage: Rated for 20A, 125V AC


• NEMA Configuration: 5-20R, single outlet


• Mounting Type: Flush mount with included mounting hardware


• Wiring Method: Back and side wired screw terminals; accommodates #12#10 AWG copper wire


• Material Construction: Nylon face with reinforced PET base; nickel-plated brass contacts


• Grounding: Integral one-piece brass ground strap; includes grounding clip


• Operating Temperature Range: -40°C to +75°C (without impact)


• Dielectric Strength: Withstands minimum of 2,000V


• Circuit Interrupting Capability: Rated for operation at specified current


• Certifications & Standards: UL Listed (UL498), CSA C22.2 No.42 certified, Federal Specification W-C-596 compliant, NEMA WD-6 compliant
