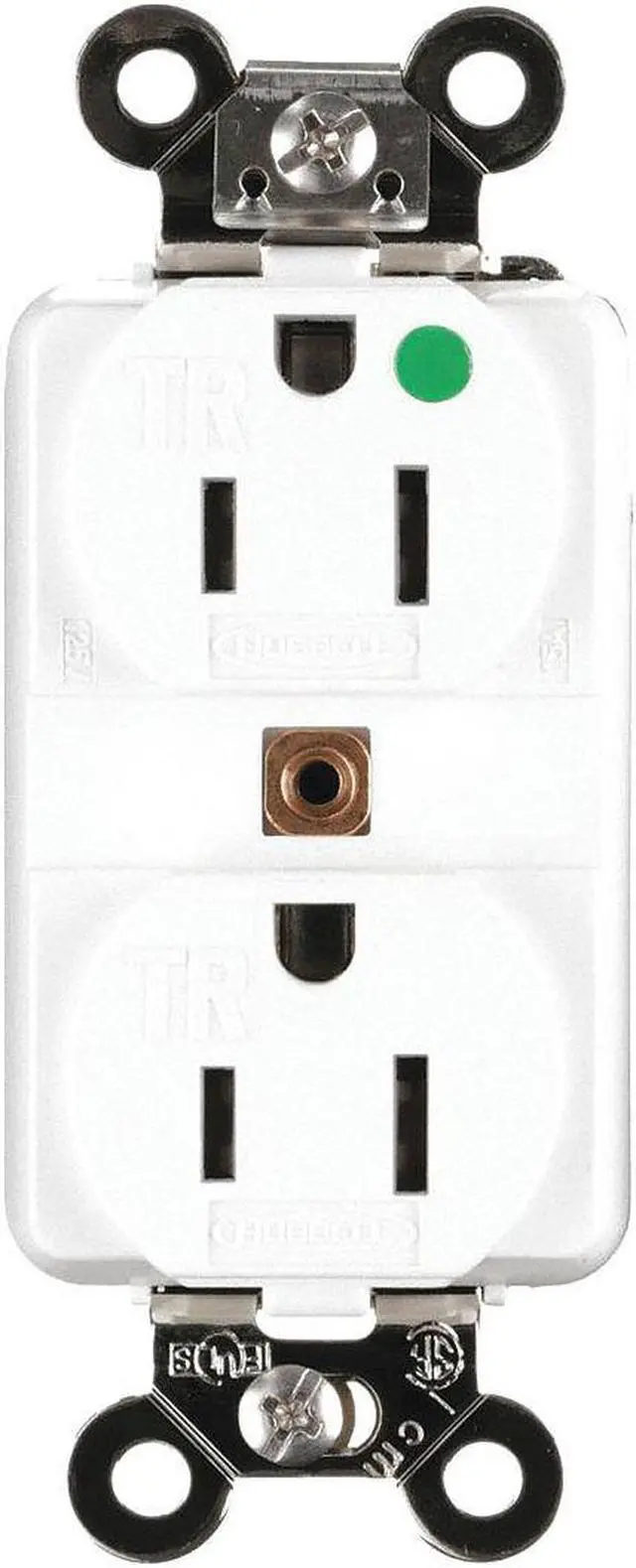

HUBBELL WIRING DEVICE-KELLEMS HBL8200SGWA 15A Duplex Receptacle 125VAC 5-15R WH

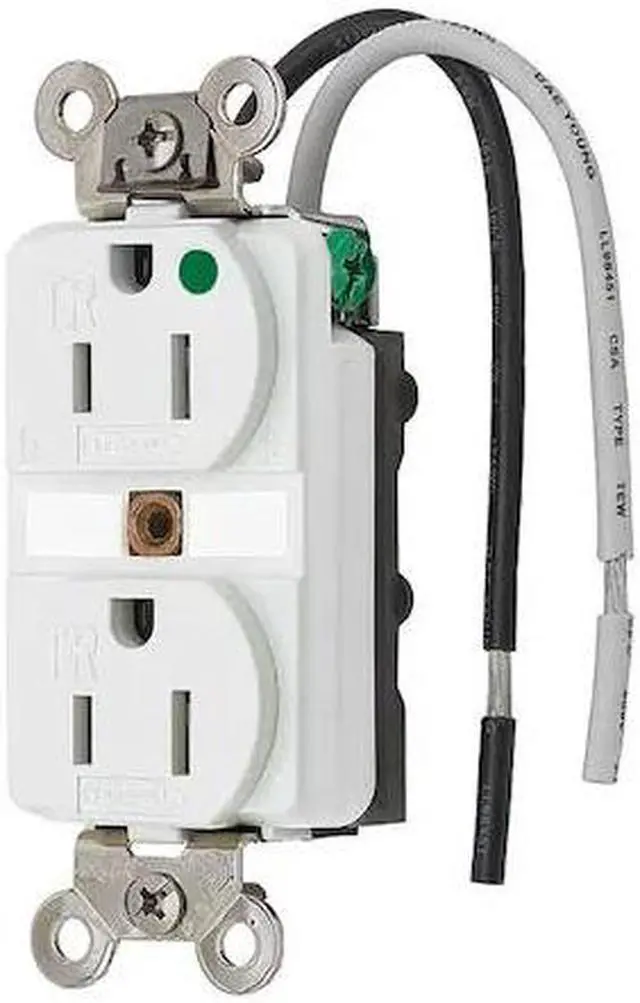

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R WH is a traditional duplex straight blade receptacle rated for extra heavy duty and hospital grade use. It features tamper-resistant contacts and integral wire leads to facilitate installation; no exposed live parts when installed as specified. The device is constructed from thermoplastic housing with nickel-plated brass contacts and includes a four-point grounding system.

Key Features of the HUBBELL 15A Duplex Receptacle:

• Amperage/Voltage: Rated for 15 A, 125 VAC operation


• NEMA Configuration: 5-15R, standard duplex outlet type


• Tamper Resistant: Contact mechanism is designed to limit access


• Grounding: Four-point grounded design; accommodates #12#10 AWG copper wire


• Wire Connection Type: Integral wire leads and screw terminals support back or side wiring methods


• Material Construction: Thermoplastic housing with nickel-plated brass contacts and one-piece ground strap


• Mounting Type: Flush mount; includes mounting hardware and grounding clip


• Performance Ratings: Withstands dielectric voltage of at least 2,000V; certified current interrupting at full rated current; UL94V-0 & UL94-5VA flammability rating; IP20 indoor suitability


• Standards Compliance: CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6, UL498 File E2186
