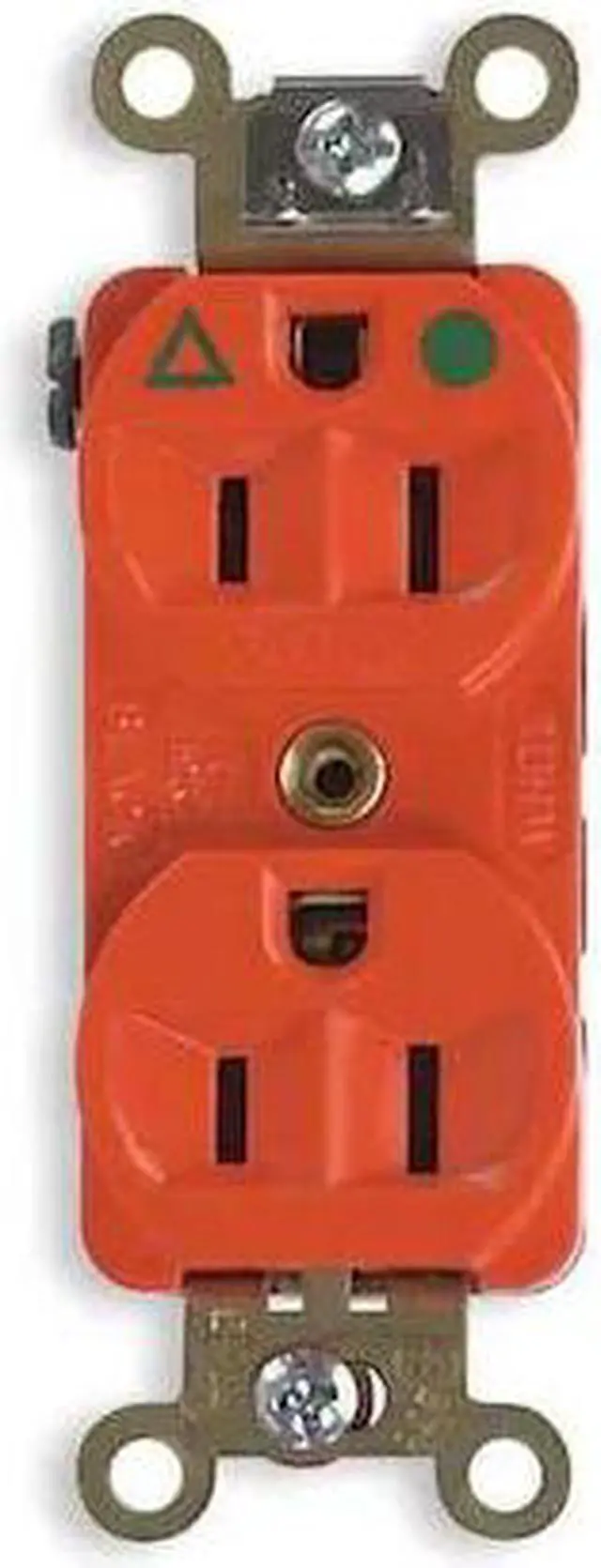

HUBBELL WIRING DEVICE-KELLEMS IG5362I Duplex Straight Blade Receptacle, 5-20R,

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R IV is a Specification grade duplex receptacle rated for commercial and industrial applications. This duplex receptacle features an isolated ground; ground contacts are separated from the mounting strap and conventional grounding system. It accommodates both back and side wiring with screw terminals, supports #12-#10 AWG stranded or solid copper wire, and is rated for 20 amps at 125 volts AC.

Key Features of the HUBBELL - 20A Duplex Receptacle:

• Isolated Ground: Triangle marking on face indicates isolated ground design for dedicated grounding paths.


• Amperage/Voltage Rating: Rated for 20A, 125V AC (NEMA 5-20R configuration).


• Wiring Method: Back and side wired screw terminals support #12#10 AWG copper wire only.


• Material Construction: Nylon housing with reinforced PET base; nickel-plated brass contacts; phosphor bronze power contacts.


• Mounting Type: Flush mount with included mounting hardware; fits standard gang boxes.


• Face Style: Finder Groove face is intended to assist with device identification during installation or maintenance.


• Circuit Certification & Standards: UL Listed to UL498 File E2186, CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6 compliant.


• Operating Temperature Range: Maximum continuous temperature of 75°C (167°F), minimum -40°C without impact.


• Dielectric Strength & Flammability Ratings: Withstands a dielectric voltage of at least 2,000V; top flammability rating UL94 V-2, base UL94 V-0 or better.
