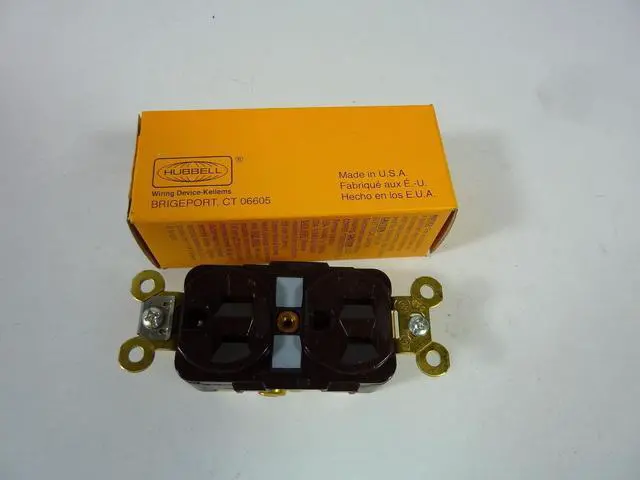

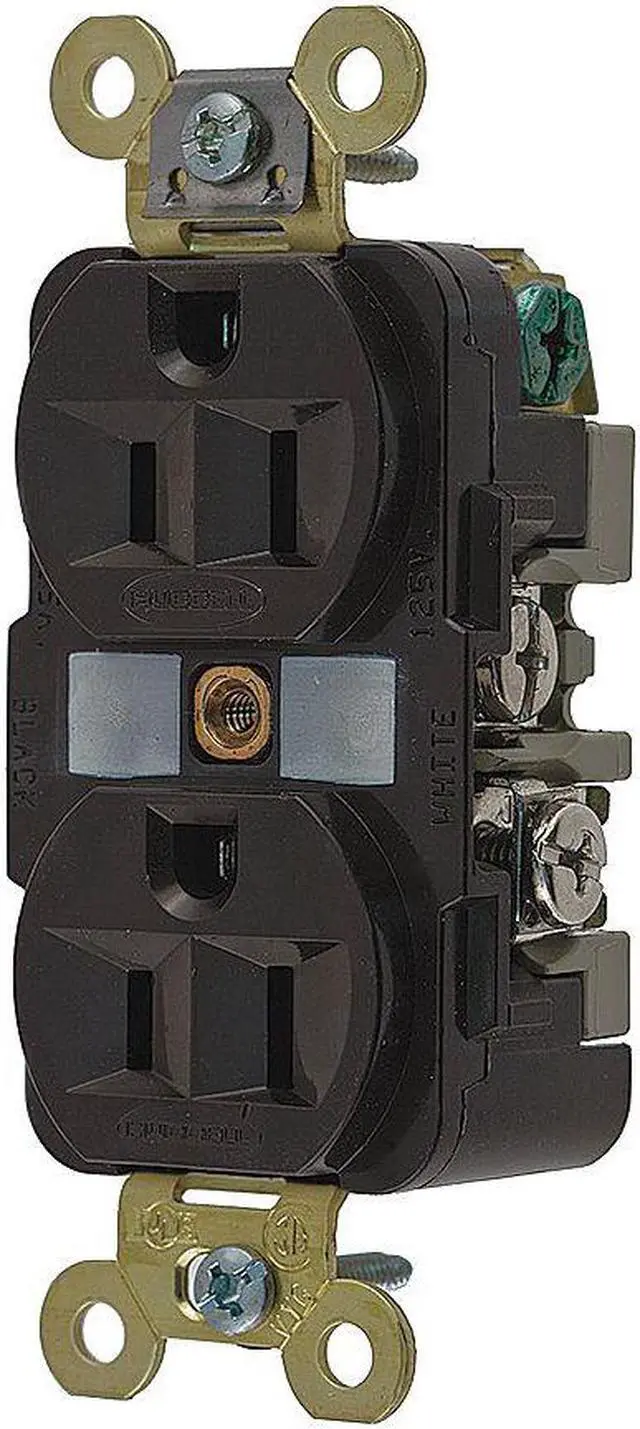

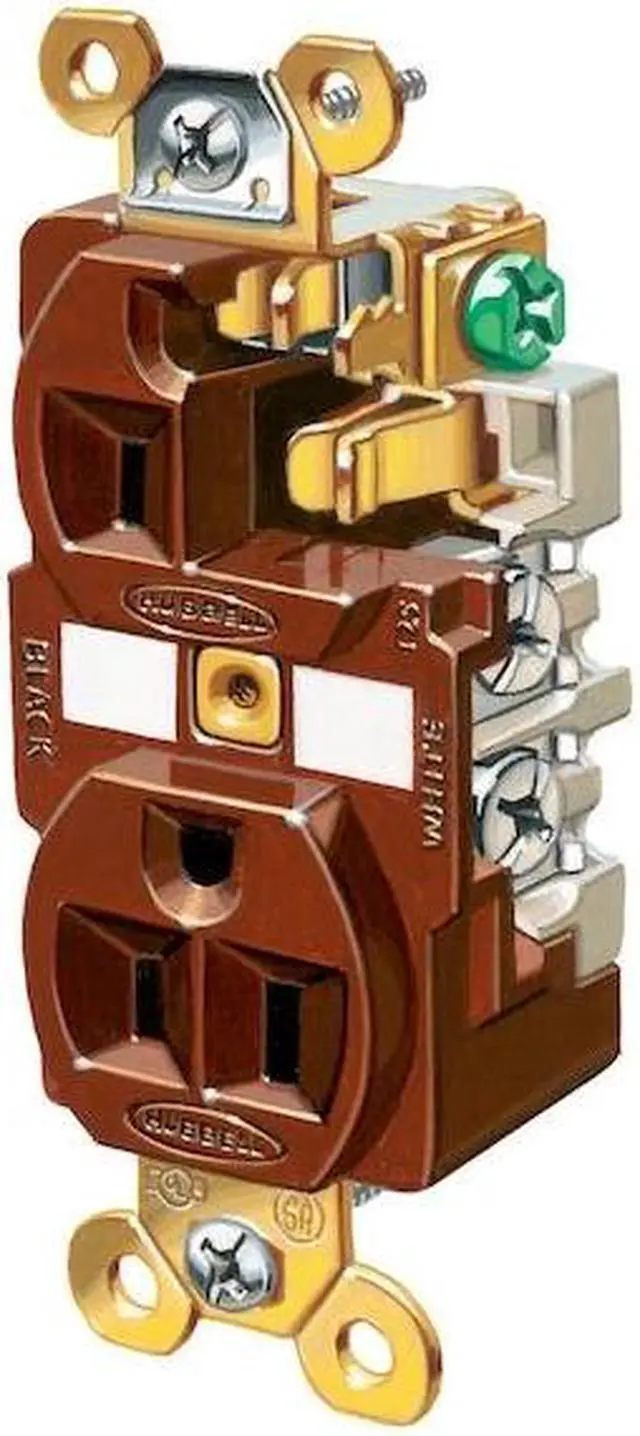

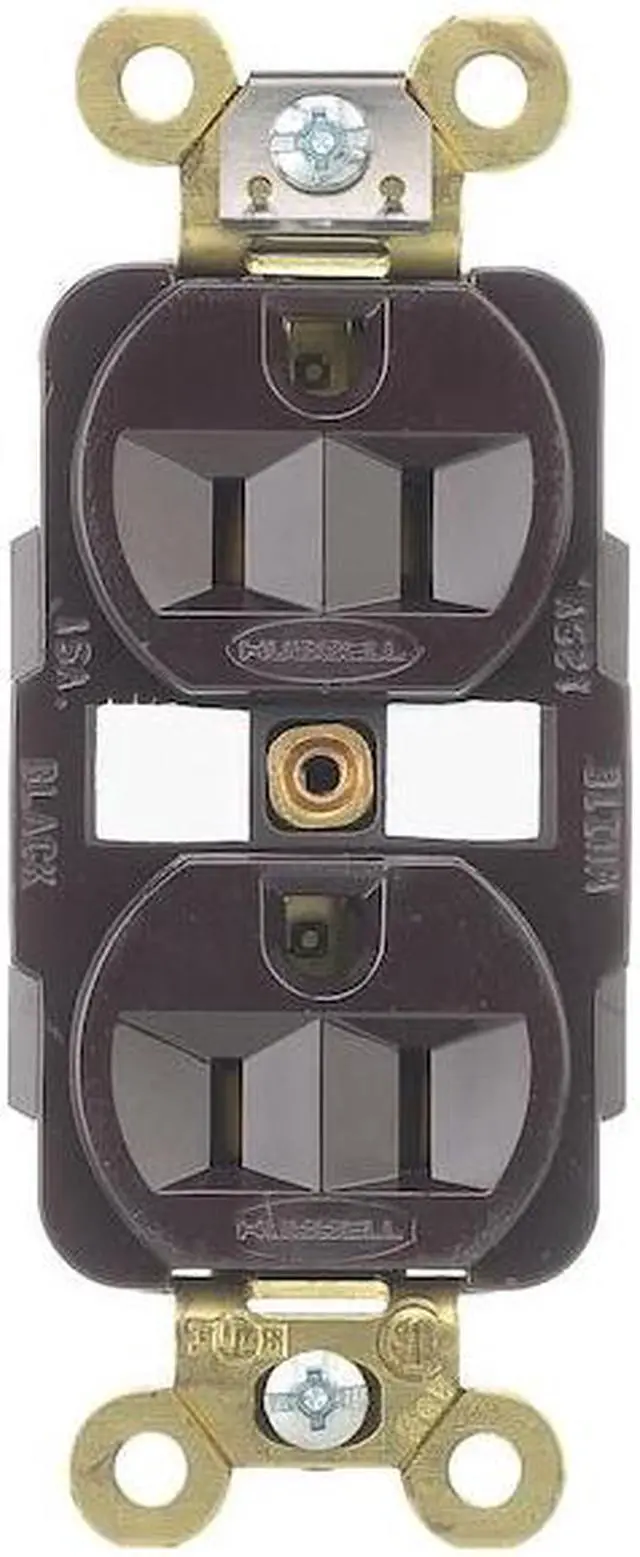

HUBBELL WIRING DEVICE-KELLEMS HBL5262 Duplex Straight Blade Receptacle, 5-15R,

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R BN is a traditional duplex straight blade receptacle suitable for specification grade applications. This device features a standard NEMA 5-15R configuration; rated for 15 amps and 125 volts AC. It is suitable for flush mounting in indoor dry locations and compatible with back and side wiring methods using screw terminals, accepts #14 to #10 AWG copper conductors.

Key Features of the HUBBELL - 15A Duplex Receptacle:

• Amperage/Voltage: Rated for 15 A, 125 VAC


• NEMA Configuration: Standard NEMA 5-15R duplex outlet

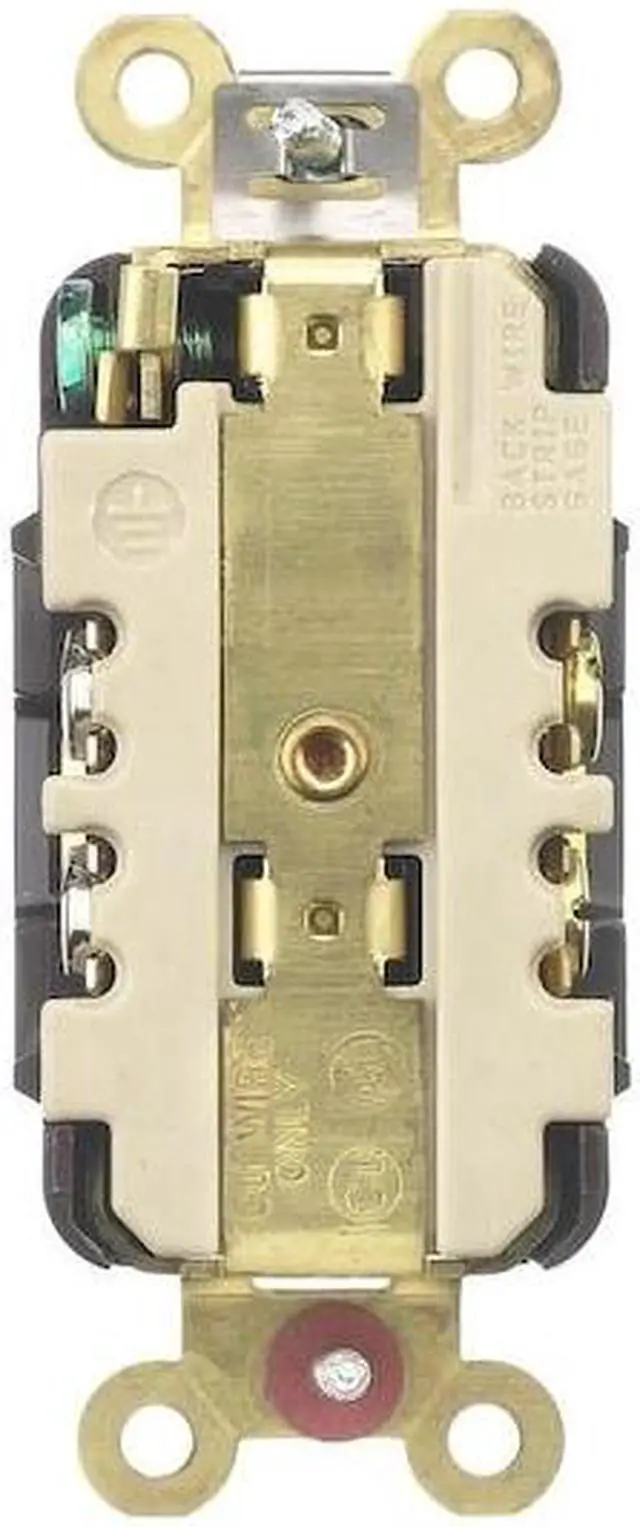

• Wiring Method: Back and side wired; accepts #14#10 AWG copper wire


• Material Construction: Nylon housing with reinforced PET base; nickel-plated brass contacts


• Mounting Type: Flush mount with included screw hardware


• Grounding: Includes stainless steel auto ground clip and silicon bronze ground screw


• Certification & Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification W-C-596, NEMA WD-6 compliant


• Operating Temperature Range: -40°C to +75°C


• Dielectric Strength & Flammability Rating: Withstands minimum of 2,000V; UL94 V0/V2 flammability rating
