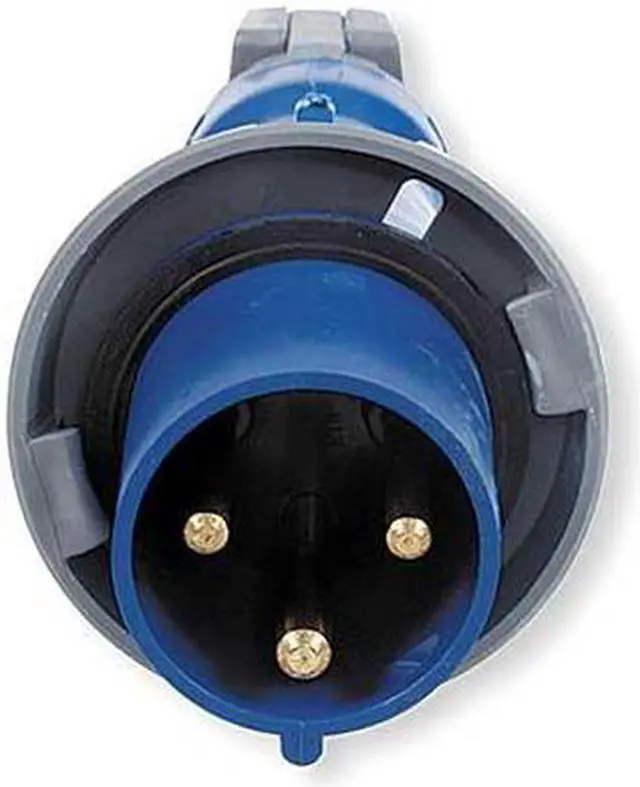

HUBBELL WIRING DEVICE-KELLEMS HBL360P6W Watertight Pin & Sleeve Plug, 60 A,

The HUBBELL IEC Pin and Sleeve Plug is a watertight electrical connector rated for operation up to 60A at 250V AC. This plug features a rugged, non-metallic Zytel 801 nylon housing and is intended for environments requiring moisture and impact resistance, as specified by product ratings. It accommodates single-phase power with two poles and three wires, using screw terminals provide a means of connecting wires for secure connection.

Key Features of the HUBBELL IEC Pin and Sleeve Plug:

• Current/Voltage Rating: Rated for 60 amps at 250V AC, single phase


• Watertight Construction: Gasketed sealing ring; IP67 ingress protection rating


• Material: Non-metallic Zytel 801 nylon body; rated for impact resistance per applicable standards


• Cord Compatibility: Accepts cable diameters from 0.83 in to 1.45 in; cord mounted design


• Wire Size Range: Supports #8 AWG to #2 AWG conductors via pressure terminal screws


• Operating Temperature Range: -40°C to +75°C (continuous)


• Standards Compliance: Meets CSA Standard C22.2 No.182.1, UL Classified to IEC60309-1, UL Listed (File E146032)


• Grounding Style: IEC grounding configuration with shrouded contacts for added protection
