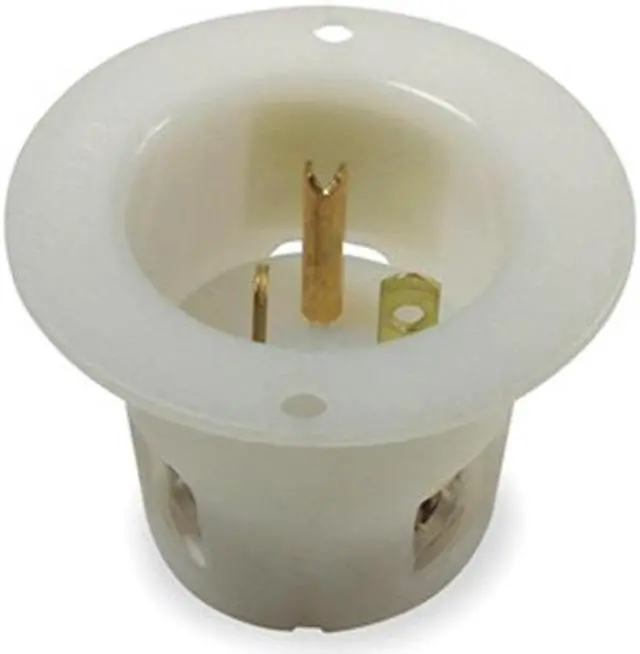

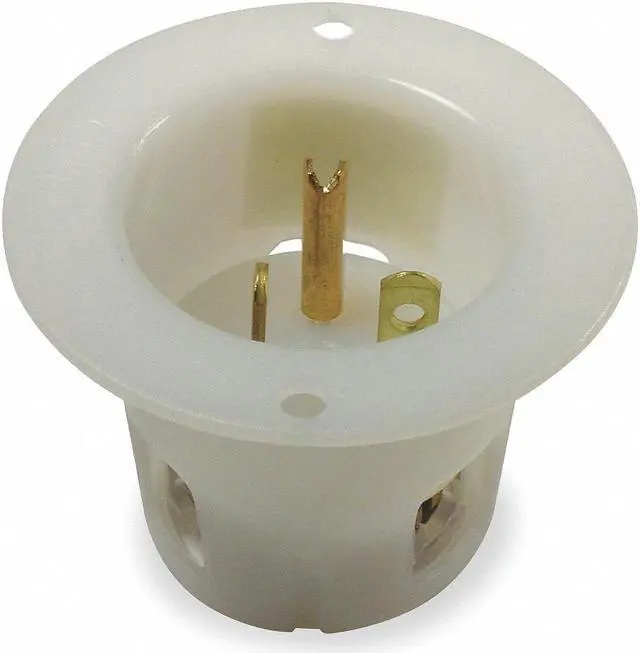

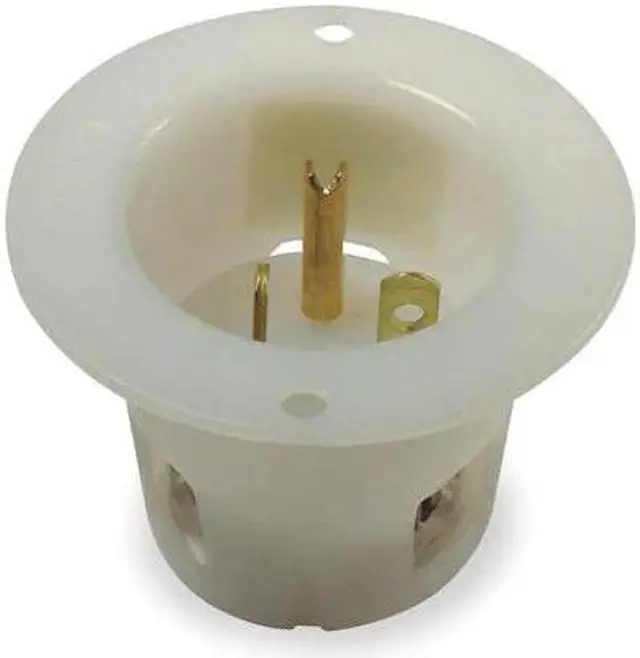

HUBBELL WIRING DEVICE-KELLEMS HBL5478C Straight Blade Inlet, 20 A, 250V AC, 2

The HUBBELL Flanged Inlet is a panel mount electrical inlet rated for 20A and 250V AC, suitable for use in industrial environments. It features a round flanged design with backwired screw terminal connections and accommodates #18-#10 AWG copper conductors. This single-phase, 2-pole, 3-wire grounding device is suitable for use where a NEMA 6-20R configuration is required.

Key Features of the HUBBELL Flanged Inlet:

• Amperage/Voltage: Rated for 20A, 250V AC operation


• Mounting Type: Panel mount with included mounting screws


• Material Construction: Nylon/polycarbonate housing; brass blades and terminal screws


• Terminal Accommodation: Accepts #18#10 AWG copper stranded or solid wire via screw terminals (backwired)


• NEMA Configuration: Complies with NEMA 6-20R standard; single outlet type inlet


• Certification & Standards: UL Listed (File E2186), CSA Certified C22.2 No.42, meets NEMA WD-6 requirements


• Performance Ratings: Dielectric voltage rating: 2,000V; certified current interrupting capability at rated current; operating temperature range: -40°C to 75°C


• Flammability Rating: UL94 V-2 compliant insulated body
