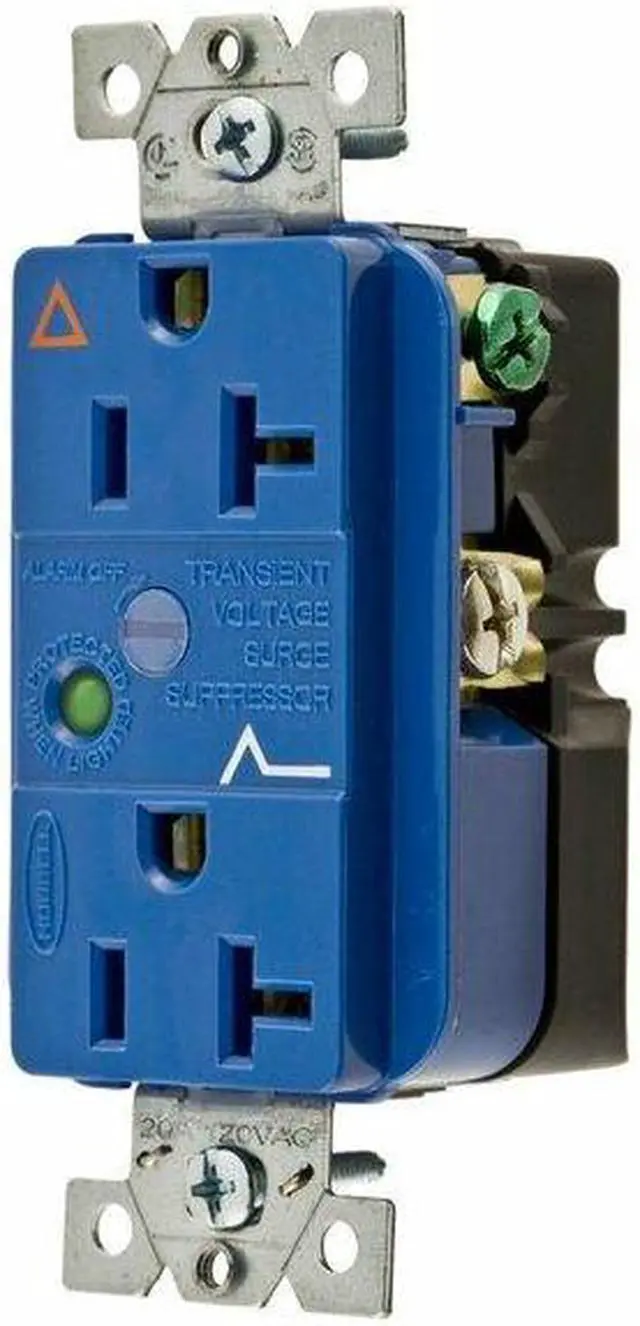

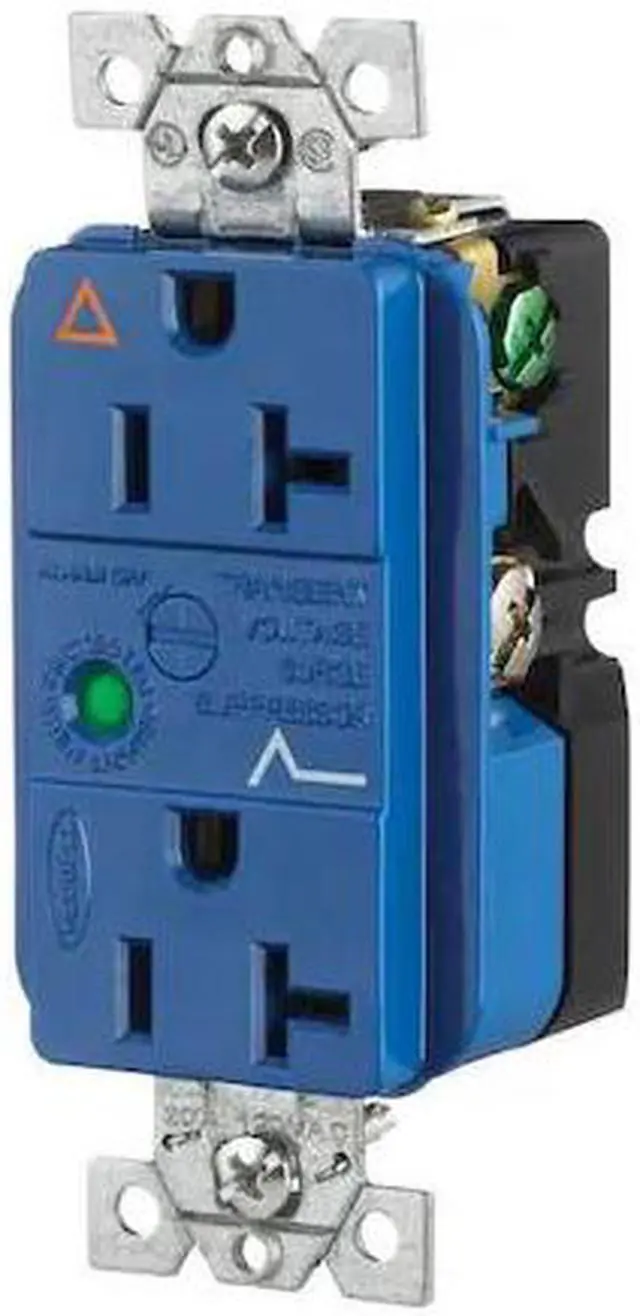

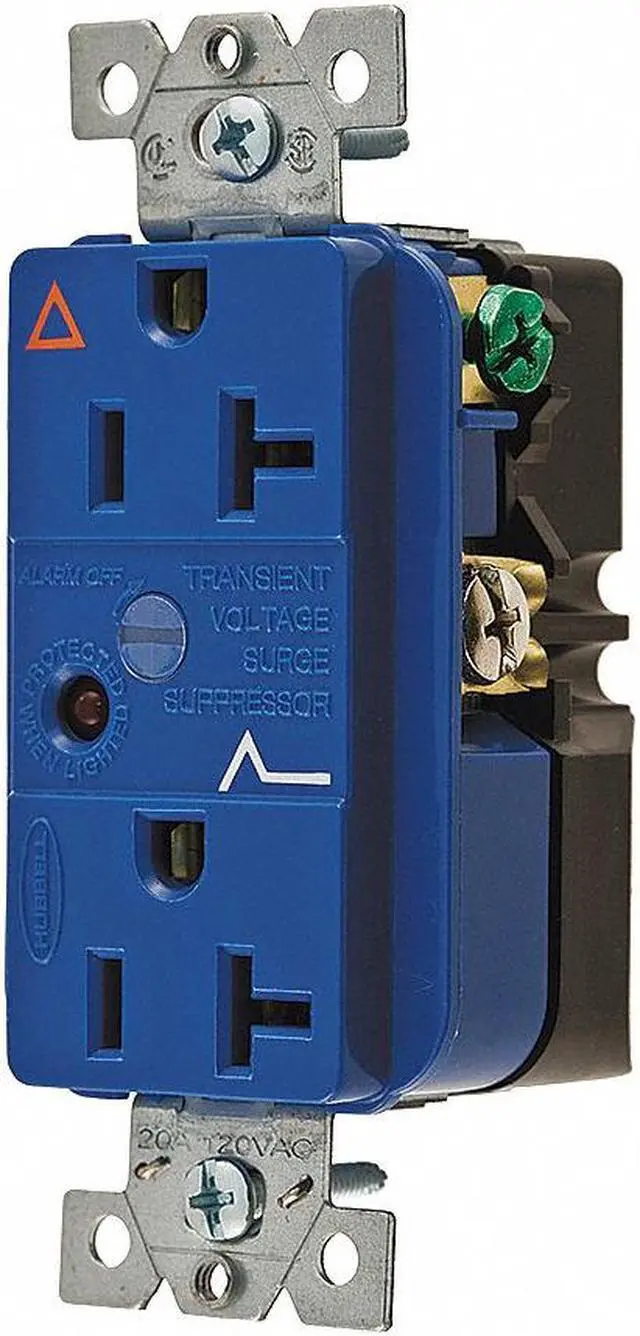

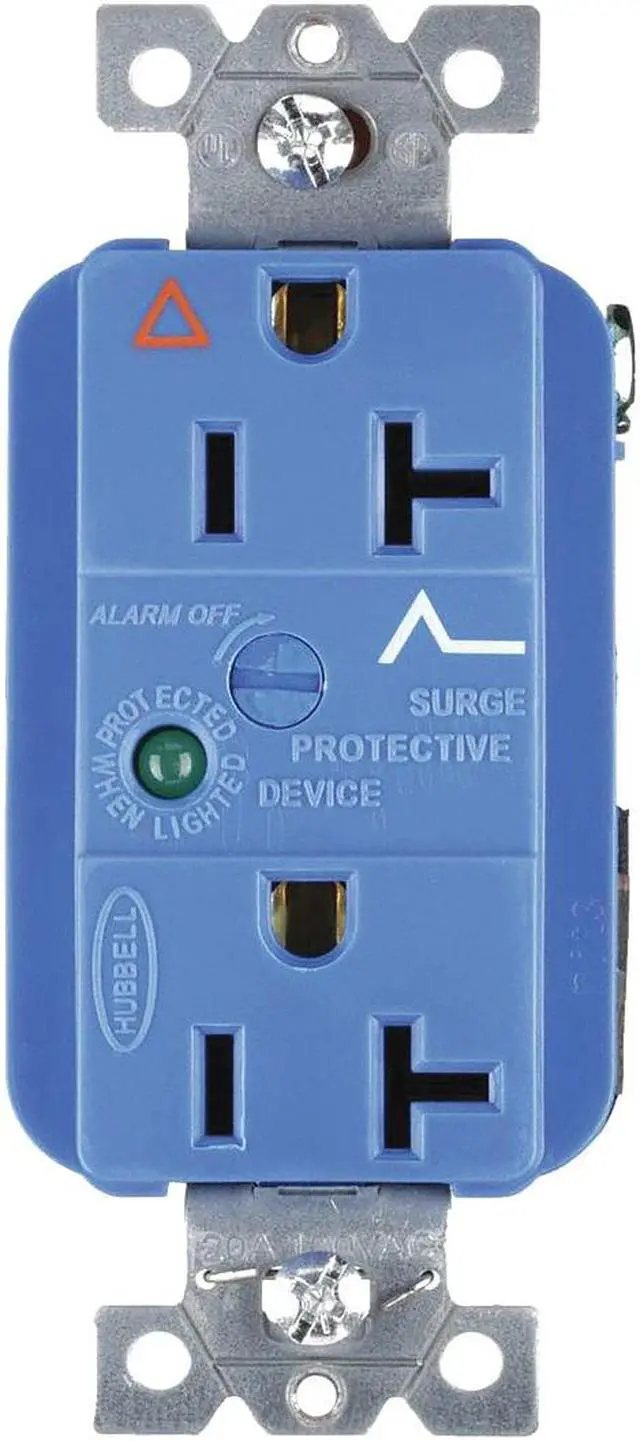

HUBBELL WIRING DEVICE-KELLEMS IG5362SA 20A Duplex Decorator Receptacle 125VAC

The HUBBELL 5-20R Decorator Duplex Receptacle is a flush mount, isolated ground outlet rated for 20A and 125V AC. Suitable for industrial applications, this duplex receptacle features integrated surge suppression using dual MOVs (rated at 240 joules per mode). It includes both audible and visual alarms to indicate the status of surge protection, as well as a power-on indicator light. The device utilizes nylon construction for its base and top, and supports back or side wiring methods.

Key Features of the HUBBELL - Receptacle, 20 A Amps, 125V AC:

• Amperage/Voltage: Rated for 20A at 125V AC


• NEMA Configuration: Duplex outlet with NEMA 5-20R configuration


• Surge Protection: Integrated surge suppression using dual MOVs (rated at 240 joules per mode)


• Alarm Indicators: Audible alarm indicates status of surge protection; red LED serves as a visual indicator


• Power Indicator: Visual indicator displays power status


• Grounding Type: Isolated ground design with dedicated green grounding screw


• Mounting Type: Flush mount suitable for single-gang installations


• Circuit Design: Single phase, polarized; accommodates two poles and three wires


• Material Construction: Nylon housing with steel mounting strap and brass contacts/screws


• Certifications/Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), ANSI/IEEE C62.41 compliant
