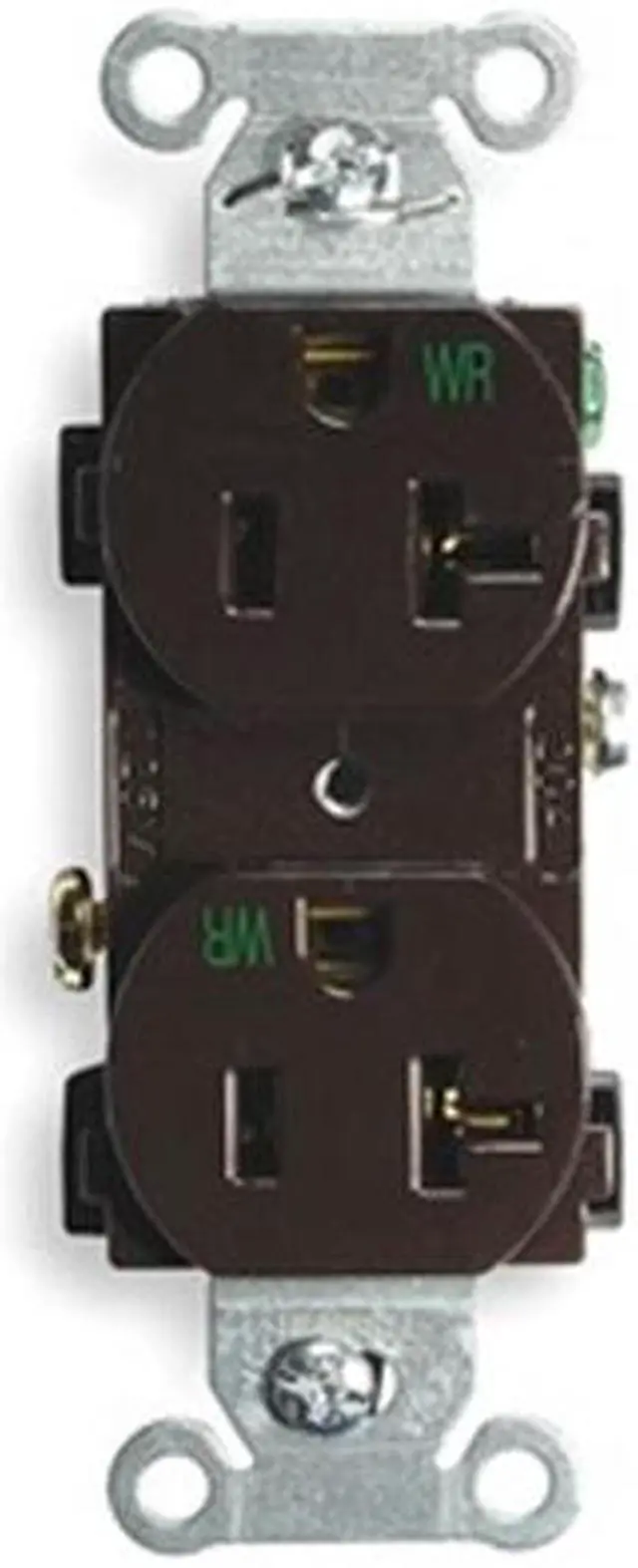

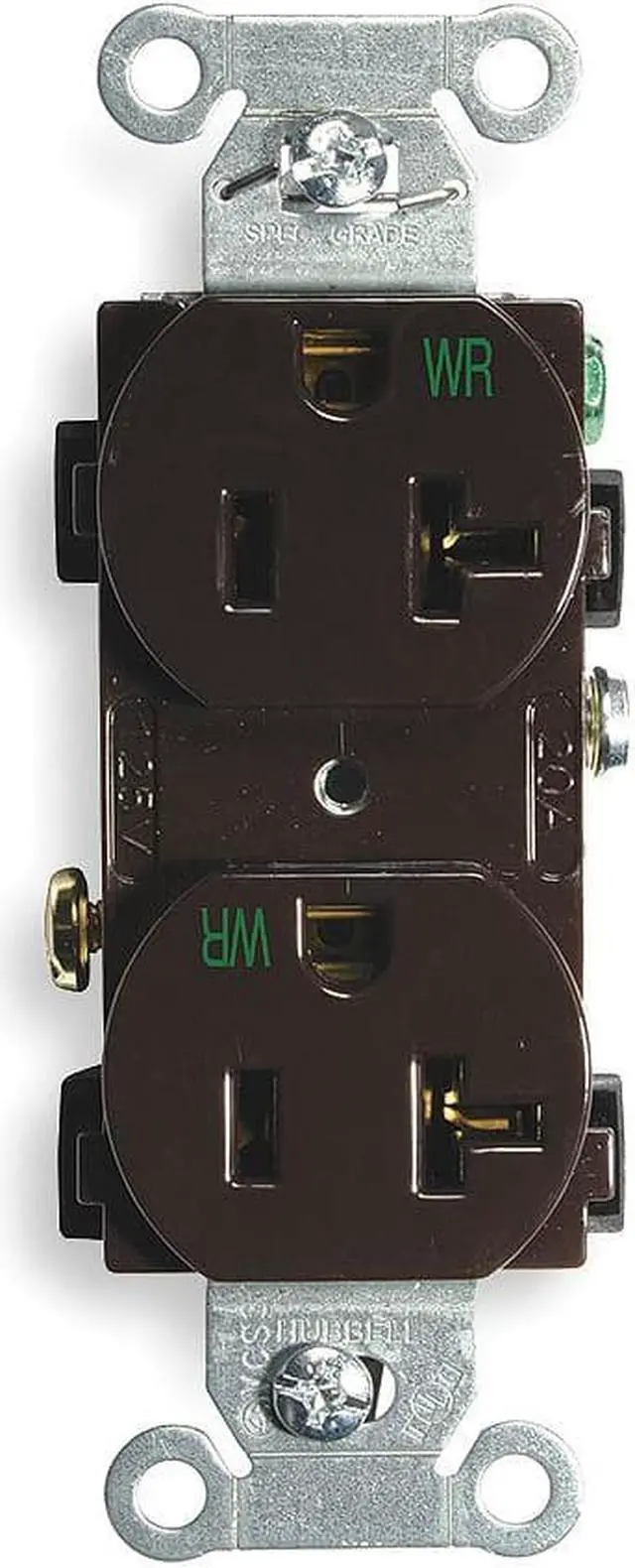

HUBBELL WIRING DEVICE-KELLEMS BR20WR Straight Blade Receptacle, 5-20R, 20 A,

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R BN is a commercial specification grade electrical outlet intended for flush mounting in standard applications. This duplex receptacle features individual wiring terminals that are [Omit], wrap-around galvanized steel straps, and triple wipe brass contacts. It supports both back and side wiring methods and accommodates #12 to #10 AWG copper conductors.

Key Features of the HUBBELL 20A Duplex Receptacle 125VAC 5-20R BN:

• Amperage/Voltage: Rated for 20A, 125V AC


• NEMA Configuration: 5-20R (2-pole, 3-wire grounding)


• Weather Resistant: Rated for use in weather-exposed environments


• Material Construction: Nylon base and face with galvanized steel mounting strap


• Wiring Options: Back and side wired; screw terminal connections


• Terminal Accommodation: Accepts #12#10 AWG copper stranded or solid wire


• Dielectric Strength: Withstands minimum of 2,000V


• Operating Temperature Range: -40°C to +75°C (without impact)


• Certification & Standards: UL Listed to UL498, CSA Certified C22.2 No.42, Federal Specification W-C-596, NEMA WD-6 compliant
