HUBBELL WIRING DEVICE-KELLEMS HBL430P9W Watertight Pin & Sleeve Plug, 30 A,

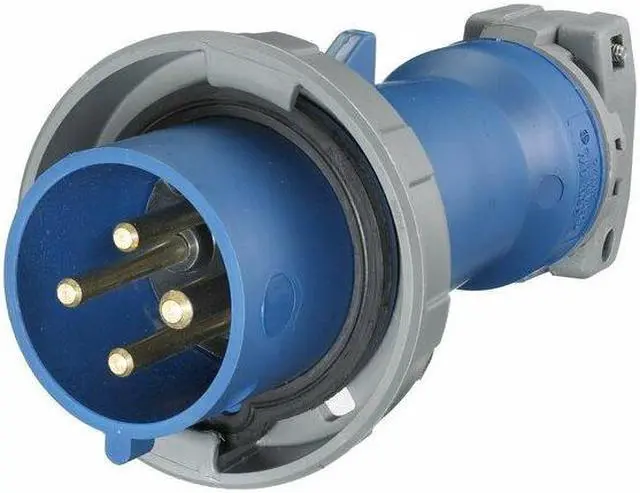

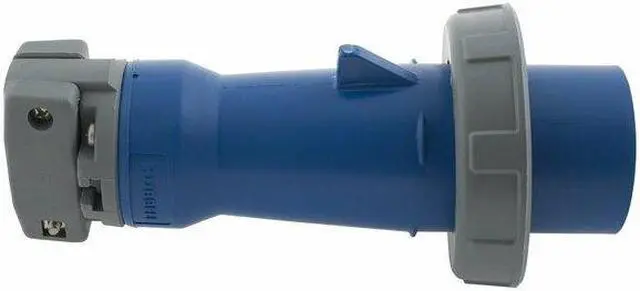

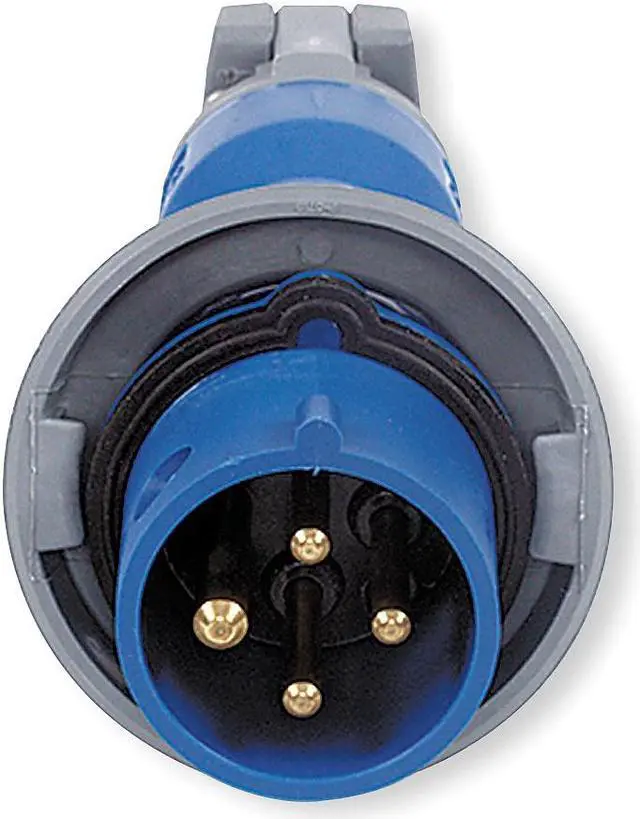

The HUBBELL IEC Pin and Sleeve Plug is an electrical plug rated for use in industrial and commercial environments. Rated for 30 amps and 250V AC, this three-phase, four-wire device includes a non-metallic housing constructed from Zytel 801 nylon. It includes a gasketed sealing ring to provide a watertight seal, making it suitable for applications where moisture resistance is required.

Key Features of the HUBBELL IEC Pin and Sleeve Plug:

• Current/Voltage Rating: 30 A, 250V AC


• Number of Poles/Wires: 3 poles, 4 wires


• Body Material: Zytel 801 nylon with impact-resistant properties


• Housing Type: Non-metallic; shrouded design


• Cable Diameter Range: Accepts cables from 0.5 in to 1.25 in diameter


• Wire Size Compatibility: For wire sizes between 12 AWG (minimum) and 8 AWG (maximum)


• Operating Temperature Range: -40°C to +75°C


• NEMA Enclosure Rating/IP Rating: NEMA 4X; IP67 rated for watertight performance


• Connection Orientation/Type: Straight orientation with screw terminals


• Grounding Style: IEC grounded configuration


• Standards Compliance: CSA Certified C22.2 No.182.1; UL E146032; UL IEC60309-1 listed
