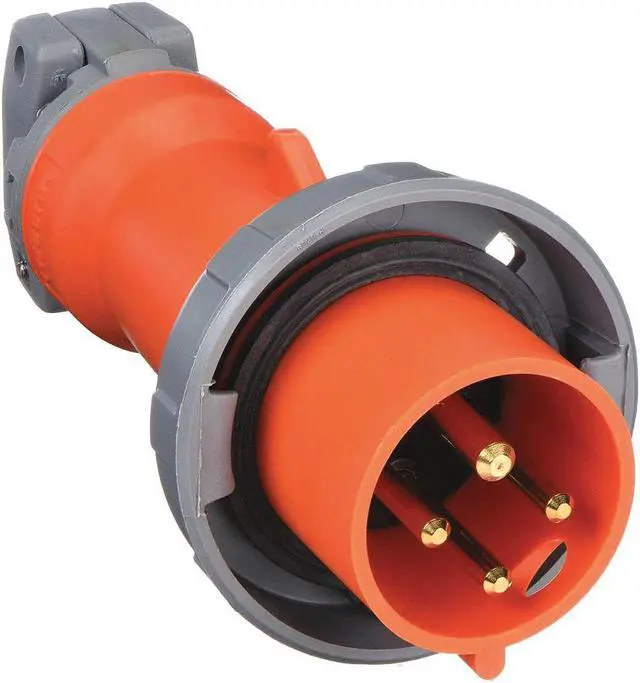

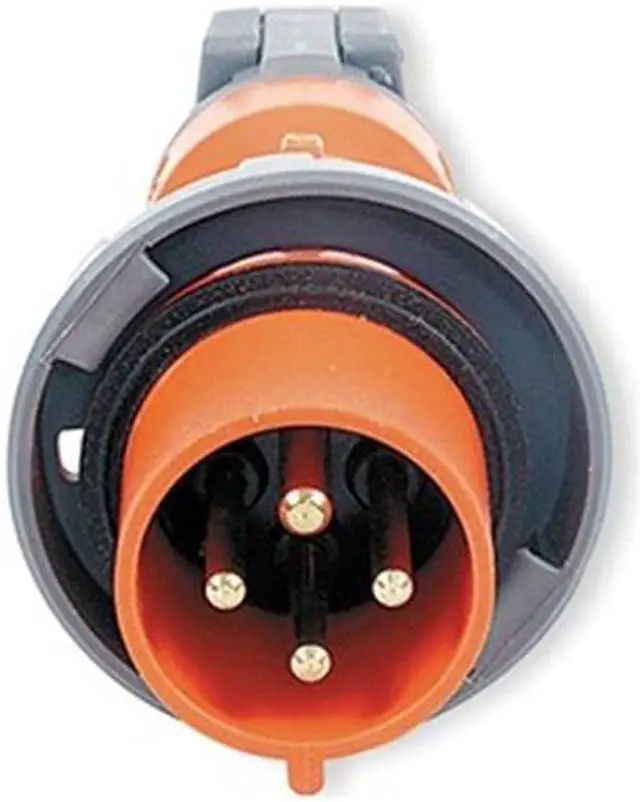

HUBBELL WIRING DEVICE-KELLEMS HBL430P12W Watertight Pin & Sleeve Plug, 30 A,

The HUBBELL IEC Pin and Sleeve Plug is suitable for industrial and commercial environments. This 3-pole, 4-wire plug is rated for 30 amps and supports voltages up to 250V AC. Constructed with a rugged non-metallic housing made from Zytel 801 nylon, it includes a gasketed sealing ring; IP67 rating indicates resistance to moisture and dust ingress. The plug accommodates wire sizes from 14 AWG to 10 AWG using screw terminals, making it suitable for secure power connections; rated for impact resistance.

Key Features of the HUBBELL IEC Pin & Sleeve Plug:

• Current/Voltage Rating: Rated for 30A at 125/250V AC single phase


• Pole/Wire Configuration: Supports three poles and four wires


• Body Material: Made from Zytel 801 nylon with non-metallic housing


• Watertight Protection: Gasketed sealing ring; IP67 rating; NEMA Type 4X enclosure


• Temperature Range: Operates between -40°C to +75°C


• Cable Accommodation: Accepts cable diameters from 0.5 in to 1.25 in; maximum wire size of 10 AWG


• Connection Type: Screw terminal wiring with straight connection orientation


• Grounding Style: IEC grounded design with shrouded contacts


• Resistance Properties: Rated as impact resistant, moisture resistant, watertight (per standards)
