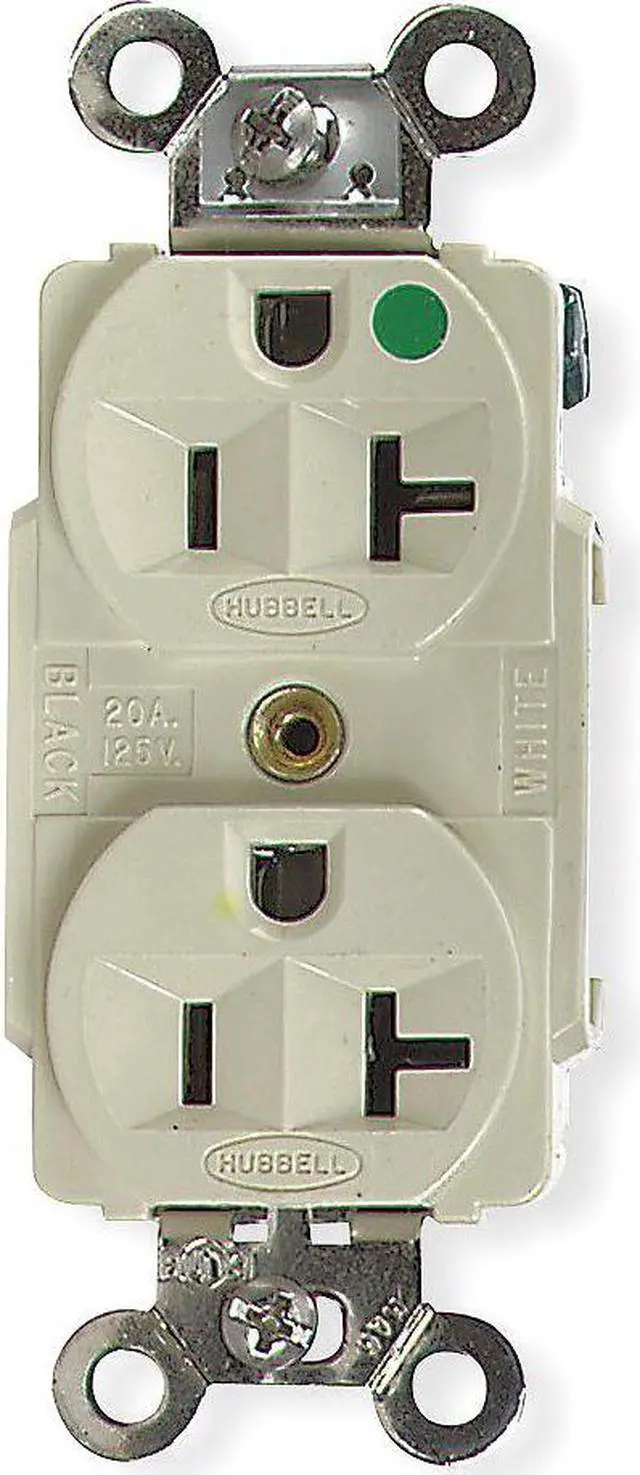

HUBBELL WIRING DEVICE-KELLEMS HBL8300I Straight Blade Receptacle, 5-20R, 20 A,

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R IV is a hospital grade, duplex receptacle rated for use in specified electrical environments. This traditional duplex outlet features a deep body design with circuit ID face and is rated for 20 amps at 125 volts AC. It incorporates nickel-plated bypass contacts as specified by manufacturer to increase contact pressure and lower operating temperature, as well as a four-point grounding system as specified by manufacturer for redundant ground continuity in high-use areas.

Key Features of the HUBBELL 20A Duplex Receptacle:

• Amperage/Voltage: Rated for 20 A, 125 V AC


• NEMA Configuration: 5-20R (2-pole, 3-wire grounded)


• Wiring Method: Back and side wired screw terminals accommodate #12#10 AWG copper wire


• Contact Material: Nickel-plated brass contacts


• Device Grade: Hospital grade; complies with Federal Specification W-C-596 and UL498


• Dielectric Strength: Withstands minimum of 2,000V


• Flammability Rating: UL94 V-0 thermoplastic polyester housing


• Mounting Type: Flush mount with included mounting hardware


• Circuit Identification Face & Four Point Grounding System provide clear identification and redundant grounding capability


• Operating Temperature Range: -40°C to +75°C (without impact)
