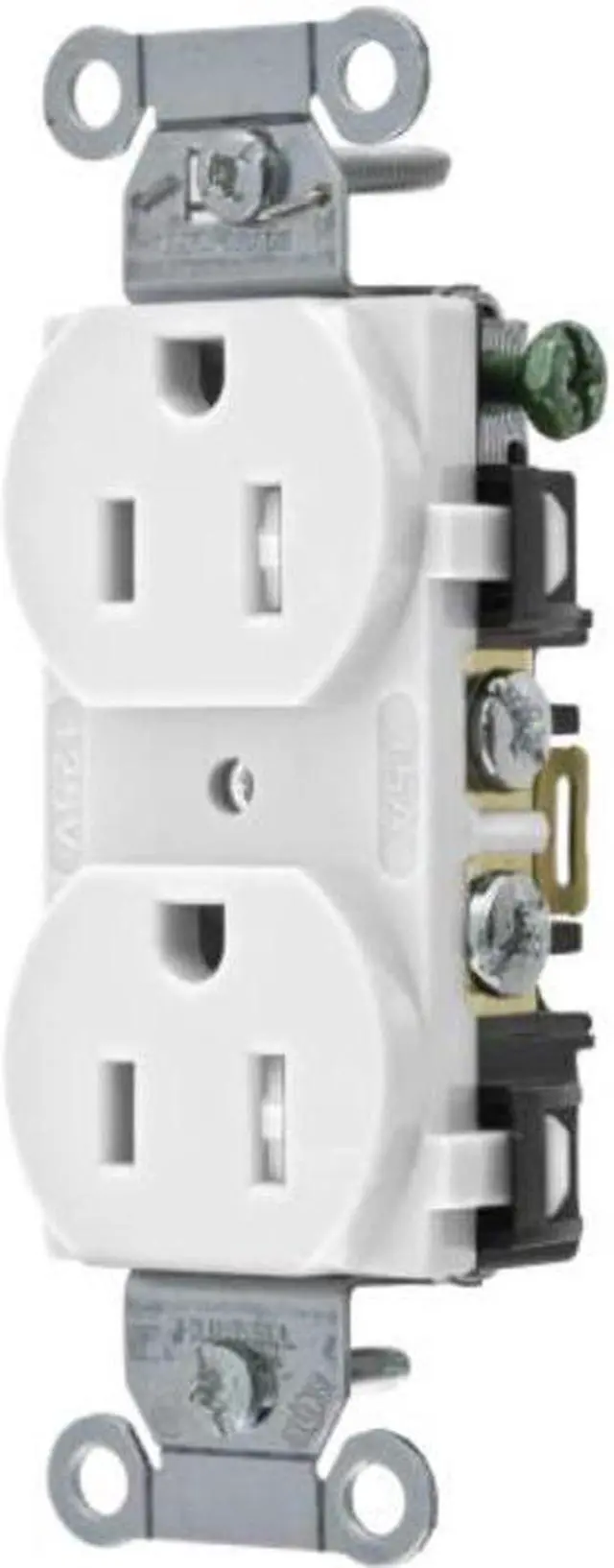

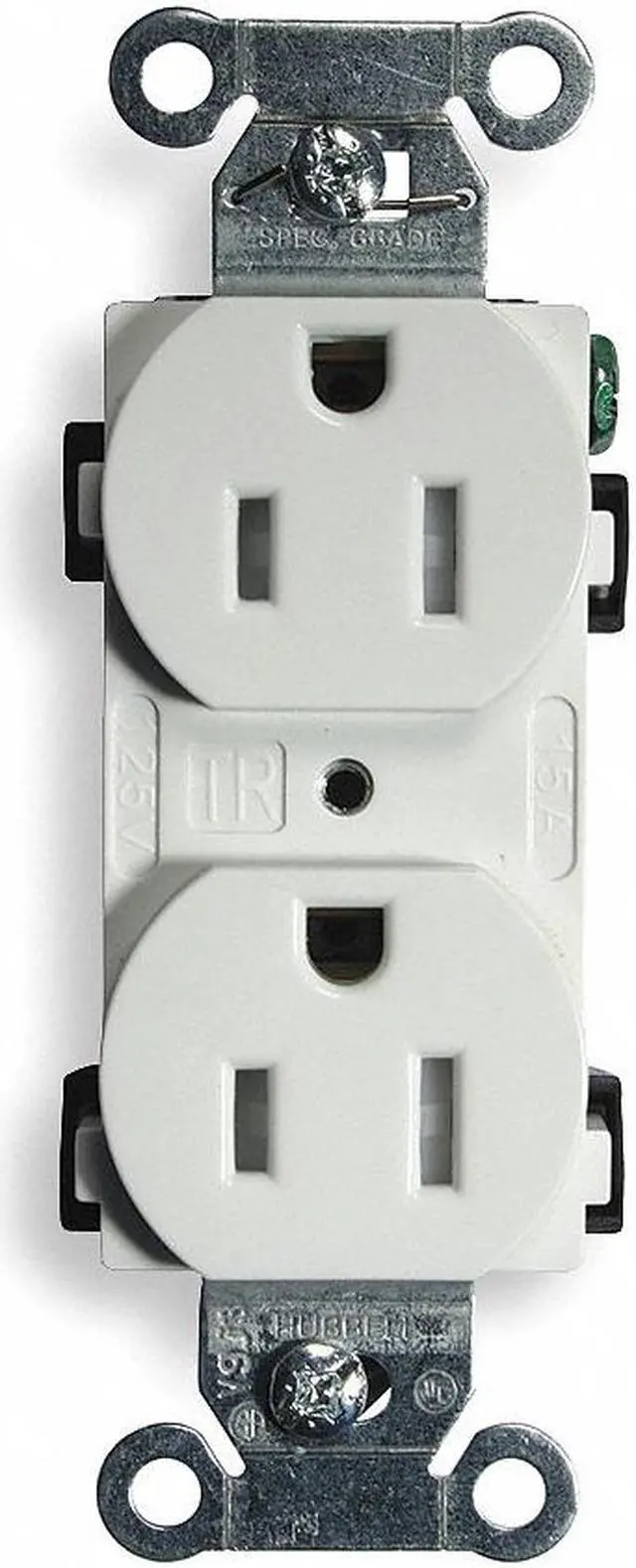

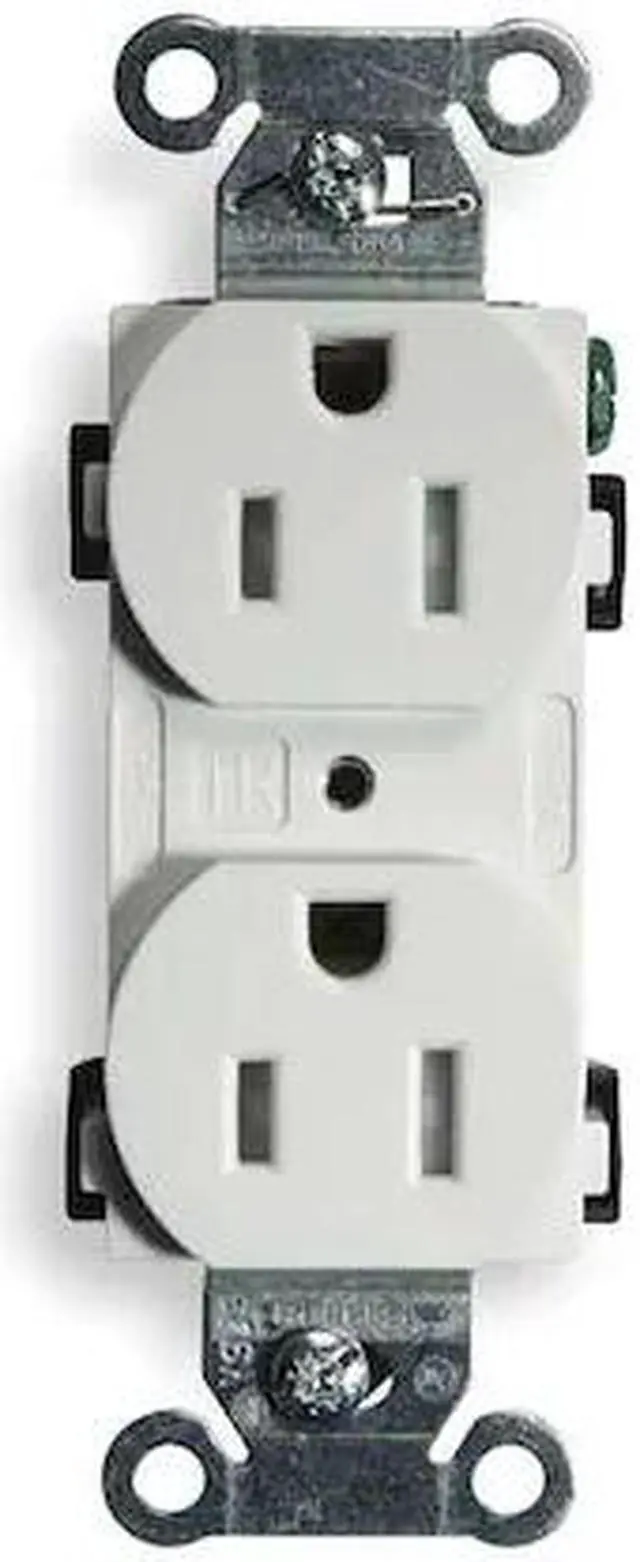

HUBBELL WIRING DEVICE-KELLEMS BR15WHITR Straight Blade Receptacle, 5-15R, 15 A,

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R WH is a [Omit or replace with 'commercial grade' if verified by supplier] duplex outlet intended for indoor use. It features a smooth nylon face and wrap-around galvanized steel straps for durability. This receptacle supports both back and side wiring methods, accommodating #14 to #10 AWG copper conductors, and is rated for 15 amps at 125 volts AC with a NEMA 5-15R configuration.

Key Features of the HUBBELL - 15A Duplex Receptacle:

• Tamper-Resistant: Built-in shutters are intended to reduce the risk of foreign object insertion.


• Wiring Options: Supports both back and side wire connections using screw terminals.


• Material Construction: Nylon housing with brass triple wipe contacts; galvanized steel mounting strap.


• Electrical Ratings: Rated for 15 A, 125 V AC; maximum wattage of 1875 W; suitable for single-phase applications.


• Grounding: Grounded design complies with WC596G specifications.


• NEMA Configuration: Standard NEMA 5-15R duplex straight blade layout.


• Certification & Standards: UL Listed (UL498), CSA Certified C22.2 No.42, NEMA WD-6 compliant.


• Operating Temperature Range: -40°C to +75°C (without impact); withstands dielectric voltage up to 2,000V minimum.
