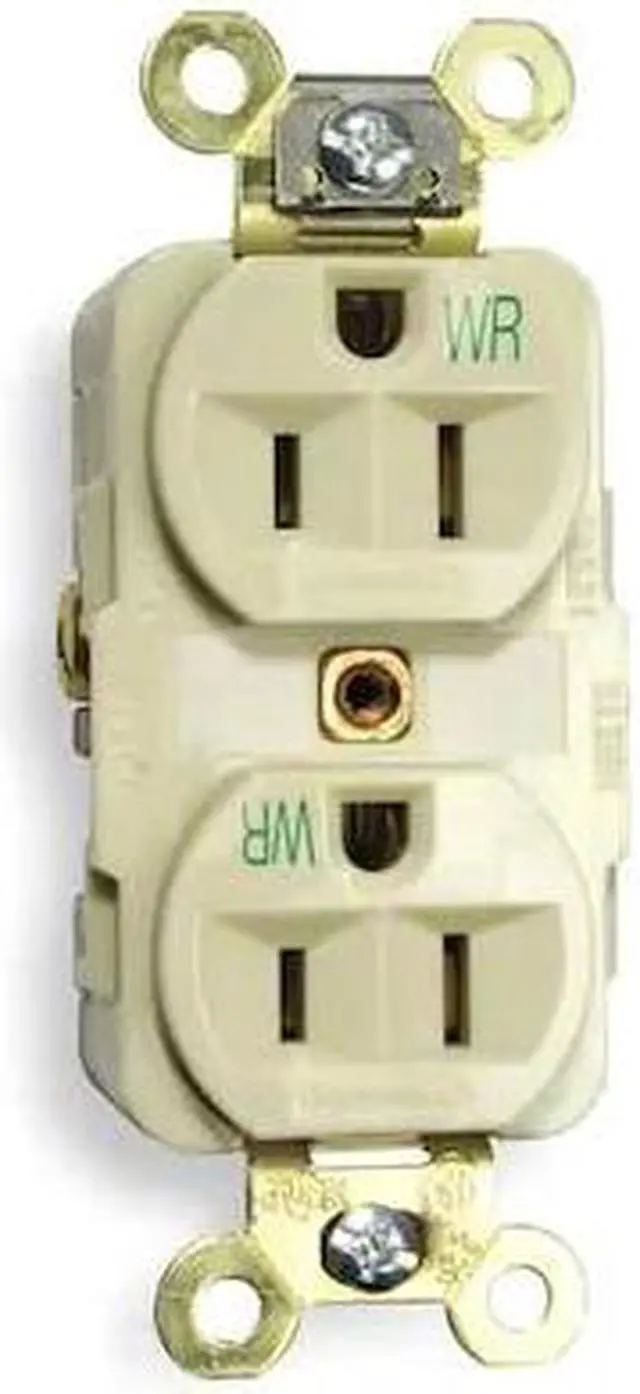

HUBBELL WIRING DEVICE-KELLEMS HBL5262IWR Duplex Straight Blade Receptacle,

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R IV is a traditional duplex outlet suitable for heavy-duty applications. Rated for 15 amps and 125 volts, this receptacle includes weather-resistant construction appropriate for industrial environments. It includes both back and side wiring options to accommodate #14#10 AWG copper conductors, with a flush mount design for standard installations.

Key Features of the HUBBELL 15A Duplex Receptacle:

• Amperage/Voltage: Rated at 15 A, 125 VAC


• NEMA Configuration: 5-15R (2-pole, 3-wire grounding)


• Weather Resistant: Constructed with materials rated for exposure to environmental factors


• Material Construction: Nylon face/top with reinforced PET base; nickel-plated brass contacts


• Wiring Method: Back and side wired screw terminals support #14#10 AWG copper wire


• Mounting Type: Flush mount with included mounting hardware


• Face Style: Finder Groove face aids in installation identification


• Circuit Identification Face: Deep body design allows circuit labeling on device face


• Certifications/Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification WC596G, NEMA WD-6 compliant
