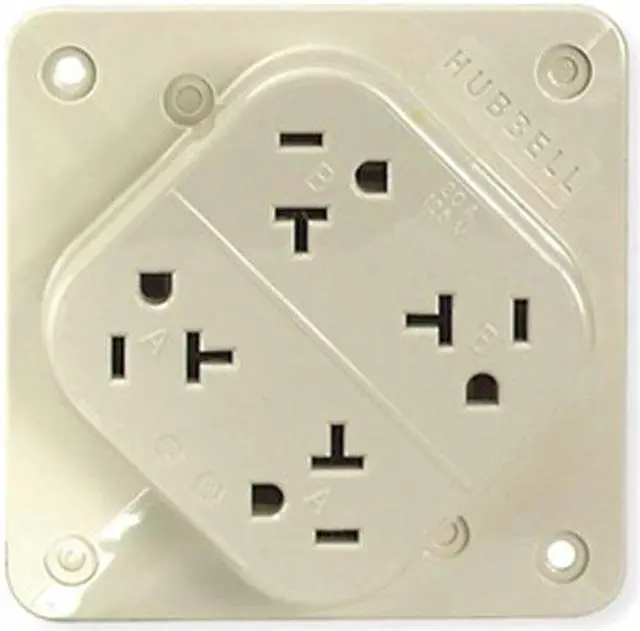

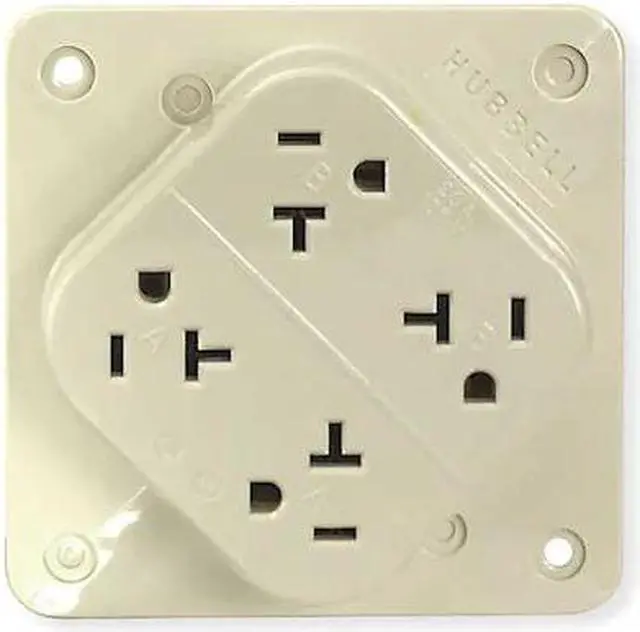

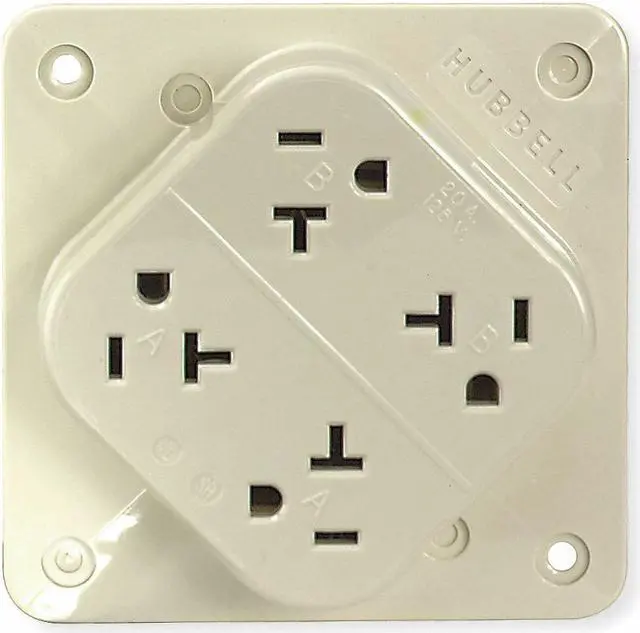

HUBBELL WIRING DEVICE-KELLEMS HBL420I Straight Blade Receptacle, 5-20R, 20 A,

The HUBBELL 4-PLEX Receptacle is a surface mount, quad outlet device rated for 20A and 125V AC. Suitable for commercial and industrial applications, it features four NEMA 5-20R outlets in a single unit, enabling connection of up to four devices. The receptacle uses screw terminals facilitate wiring and accommodates #12 AWG stranded or solid copper conductors.

Key Features of the HUBBELL 4-PLEX Receptacle:

• Outlet Configuration: Quad (four) NEMA 5-20R straight blade outlets


• Amperage/Voltage Rating: Rated for 20A, 125V AC


• Mounting Type: Surface mount design with included adapter plate and portable box


• Wiring Method: Back-wired using screw terminals; suitable for #12 AWG copper wire


• Contact Material: Brass triple wipe contacts provide reliable connectivity


• Grounding: Grounded, with #8-32 brass ground screw (green)


• Circuit Capability: Rated to UL498 requirements for fault levels up to 1000A; dielectric strength rated at 2,000V


• Material Construction: Polycarbonate housing meets UL94 V-2 flammability rating


• Operating Temperature Range: -40°C to +75°C (without impact)


• Standards Compliance: Listed to UL Standard 498 File E2186; CSA Certified C22.2 No.42 File 285; NEMA WD-6 compliant
