HUBBELL WIRING DEVICE-KELLEMS HBL420HR Straight Blade Receptacle, 5-20R, 20 A,

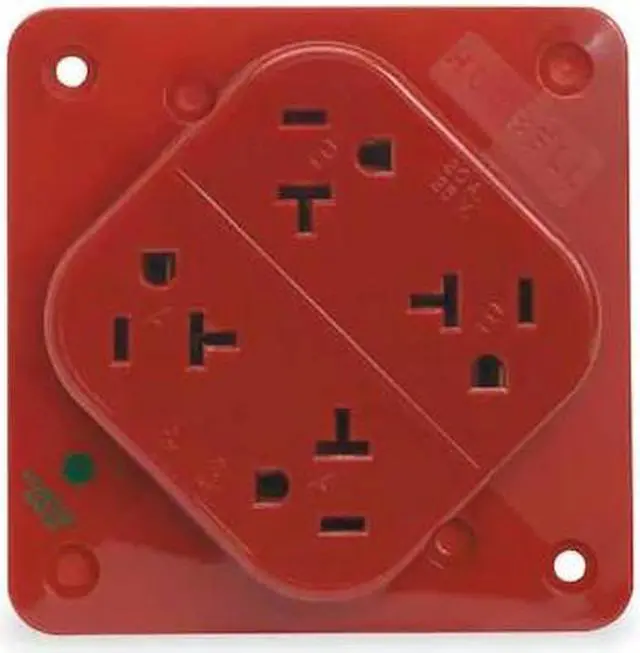

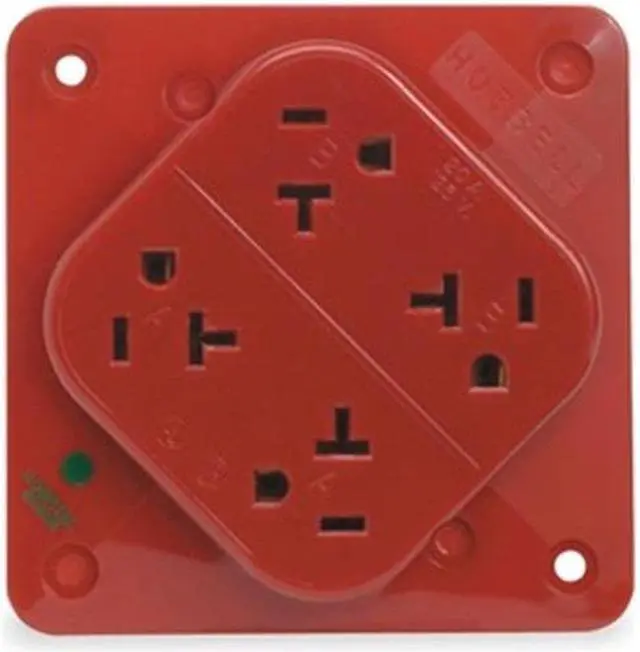

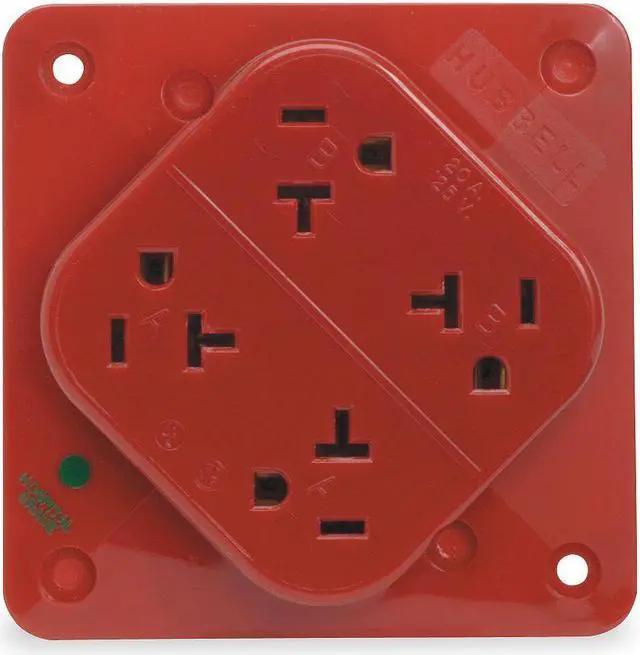

The HUBBELL 5-20R Quad Receptacle is a hospital grade, surface mount electrical outlet that provides four 20A, 125V AC outlets in a single unit. This receptacle features back wired screw terminals with screw terminals for installation and is constructed with polycarbonate housing. It includes an anchor hole and loop feature compatible with solid wire termination, triple wipe contacts, and break-off tabs permit split wiring of the outlets.

Key Features of the HUBBELL 5-20R Quad Receptacle:

• Amperage/Voltage: Rated for 20A at 125V AC


• NEMA Configuration: 5-20R quad outlet (four receptacles)


• Mounting Type: Surface mount with included adapter plate


• Wiring Method: Back wired screw terminals; accommodates #12 AWG copper stranded or solid conductor only


• Contact Material: Brass contacts with triple wipe design


• Grounding: Grounded device suitable for hospital grade applications


• Dielectric Strength & Flammability: Withstands minimum 2,000V dielectric voltage; UL94 V-2 flammability rating


• Operating Temperature Range: -40°C to +75°C (without impact)


• Standards Compliance: Certified to CSA C22.2 No.42 File 285, NEMA WD-6 compliant, UL Listed to UL498 File E2186
