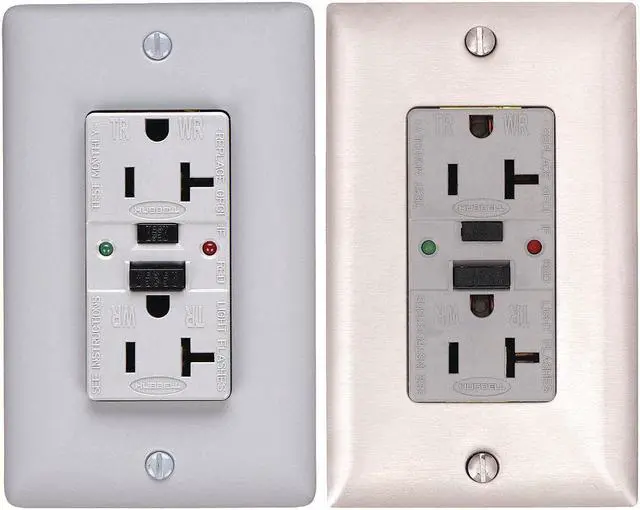

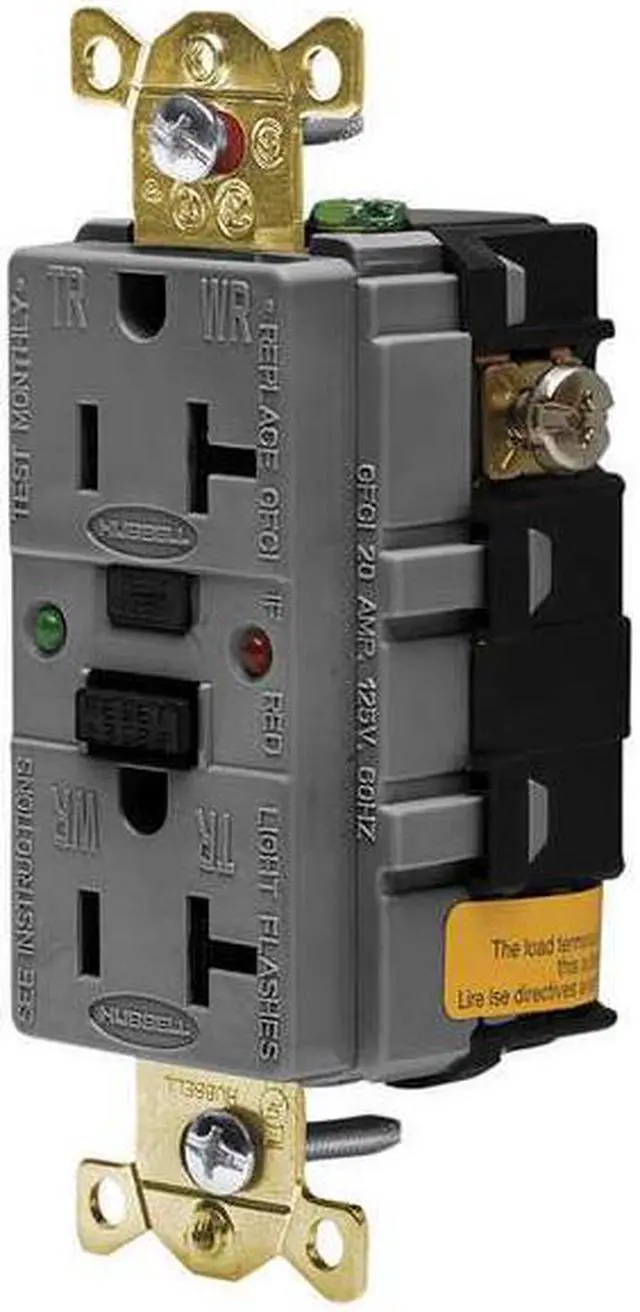

HUBBELL WIRING DEVICE-KELLEMS GFSG5362GRY GFCI Receptacle, 20A, 125VAC, 5-20R,

The HUBBELL GFCI Receptacle is a 20A, 125VAC duplex outlet rated for use in environments where ground fault circuit interruption is specified. It features AUTOGUARD® self-test technology with periodic monitoring of the receptacles protection function that continuously monitors the receptacles protection capability and automatically disconnects power if critical components are compromised. The device includes visual indicators for power status, trip condition, ground fault detection, and end-of-life alerts. The device includes a feature that prevents power delivery to the face of the receptacle under reverse wiring conditions.

Key Features of the HUBBELL GFCI Receptacle:

• Amperage/Voltage: Rated for 20A at 125VAC with feed-through capability


• NEMA Configuration: 5-20R decorator duplex outlet


• Self-Test Function: Performs periodic monitoring; features include tamper-resistant and weather-resistant construction


• Construction: Nylon housing; nickel-plated brass contacts; stainless steel screws


• Mounting Type: Flush mount with included gray nylon and stainless steel wall plates plus mounting hardware


• Circuit Protection: Trip threshold: 4-6 mA, response time up to 0.025 seconds; automatic reset


• Wire Accommodation: Accepts #1410 AWG stranded or solid copper conductors via back or side screw terminals


• Operating Range: -31°F to 150.8°F maximum temperature range; suitable for industrial environments


• Standards Compliance: Meets UL 943 Class A GFCIs, UL 498, ANSI 73, CSA Certified, NEC & CEC requirements; NEMA WD-6 listed
