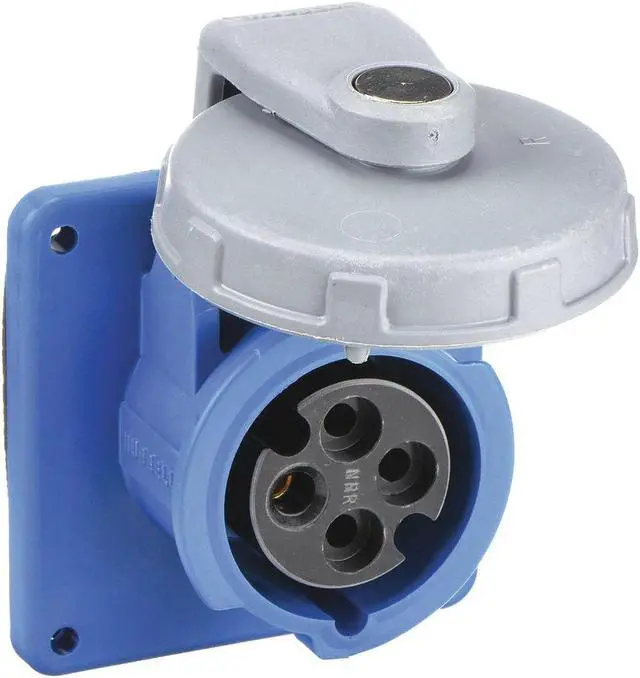

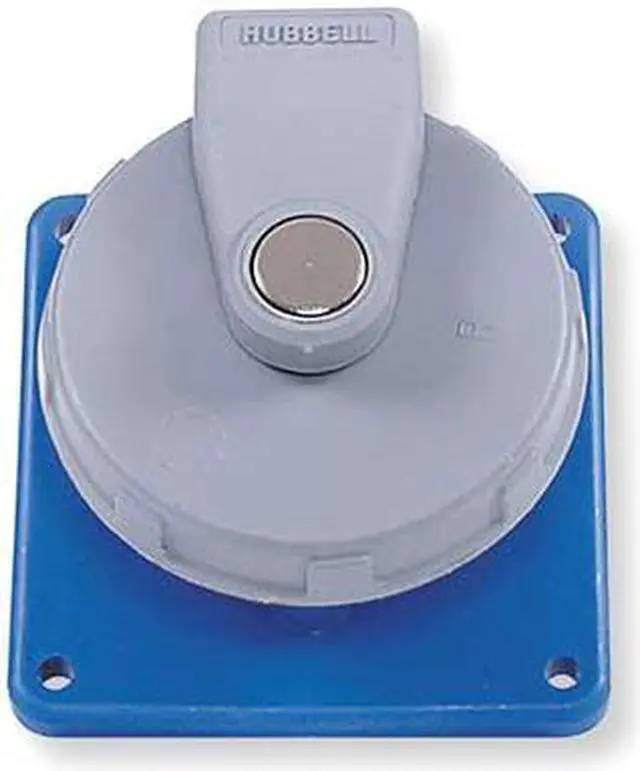

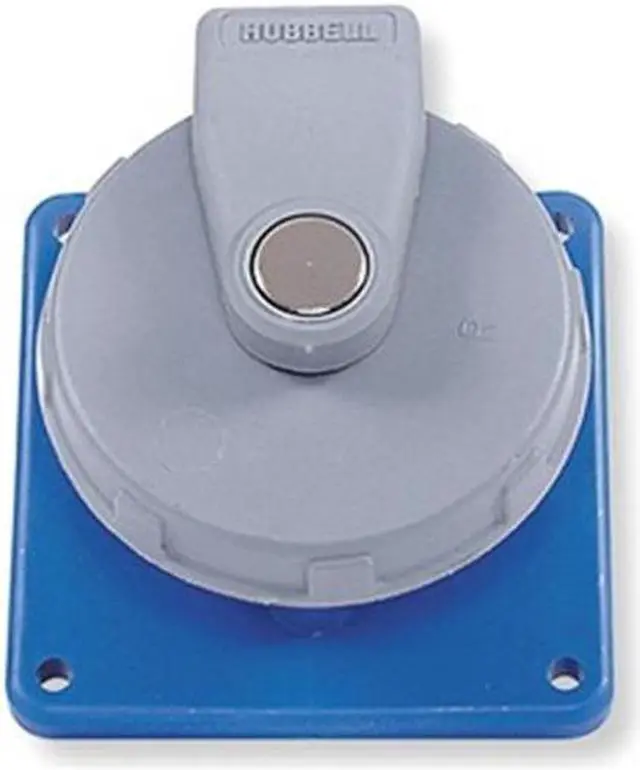

HUBBELL WIRING DEVICE-KELLEMS HBL420R9W Watertight Pin & Sleeve Receptacle, 20

The HUBBELL IEC Pin and Sleeve Receptacle is a watertight electrical device suitable for use in industrial settings where secure power connections are needed. Rated for 20A and 250V AC, this receptacle features a straight connection orientation with screw terminals, supporting wire sizes from 14 to 10 AWG. The product is constructed with a Zytel 101 nylon body and flange, thermoplastic housing, and high-impact thermoset retainer material to construct with materials that offer resistance to corrosion, impact, moisture, and water ingress.

Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:

• Current/Voltage Rating: Rated for 20A at 250V AC; three-phase operation


• IP67 rated enclosure with neoprene gasket and spring-loaded cap


• NEMA Type 4X enclosure


• Cord Accommodation: Accepts wire sizes from 14 to 10 AWG via screw terminals


• Material Construction: Body/flange made of Zytel 101 nylon; insulated non-metallic housing


• Operating Temperature Range: -40°C to +75°C maximum operating temperature


• Resistance Properties: Designed to be corrosion resistant, impact resistant, and moisture resistant


• Color Coded Housing: Blue color coding aids in device identification per IEC standards


• Standards Compliance: CSA Certified C22.2 No.182.1; UL E146032; IEC 60309-1 & -2 compliant
