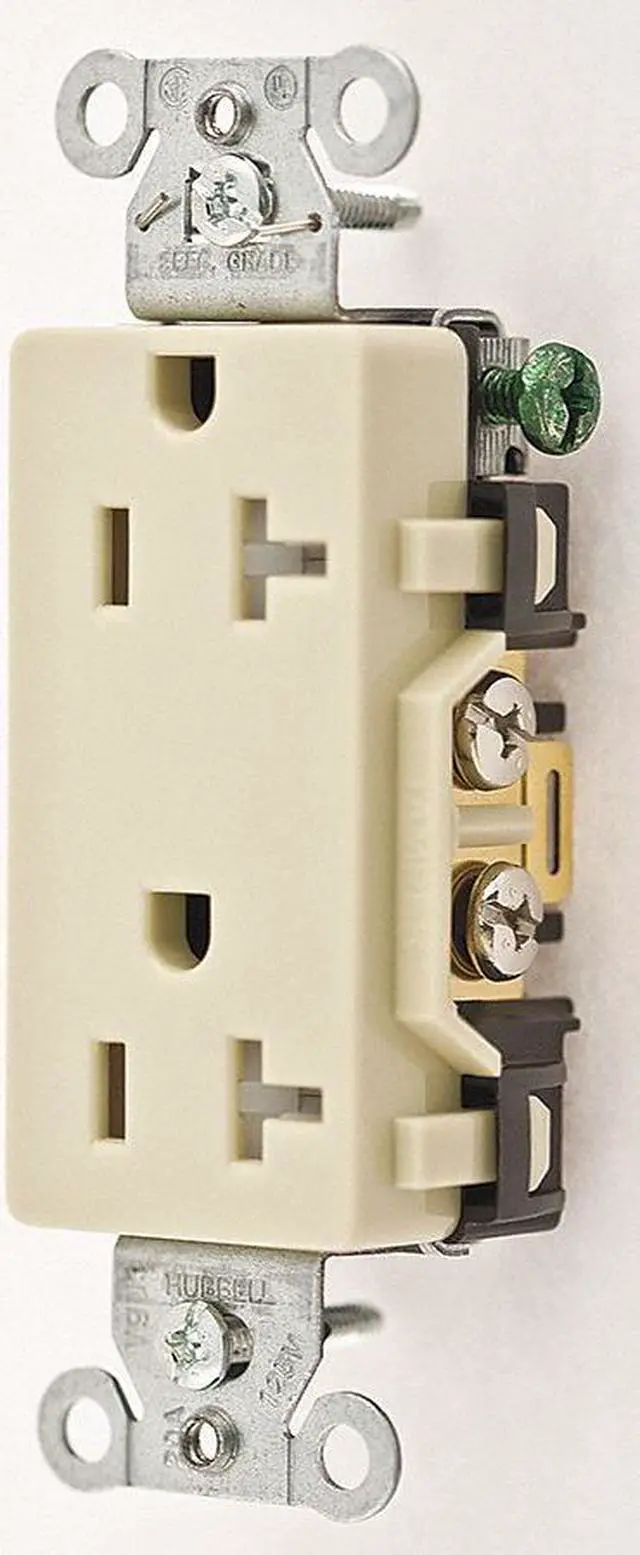

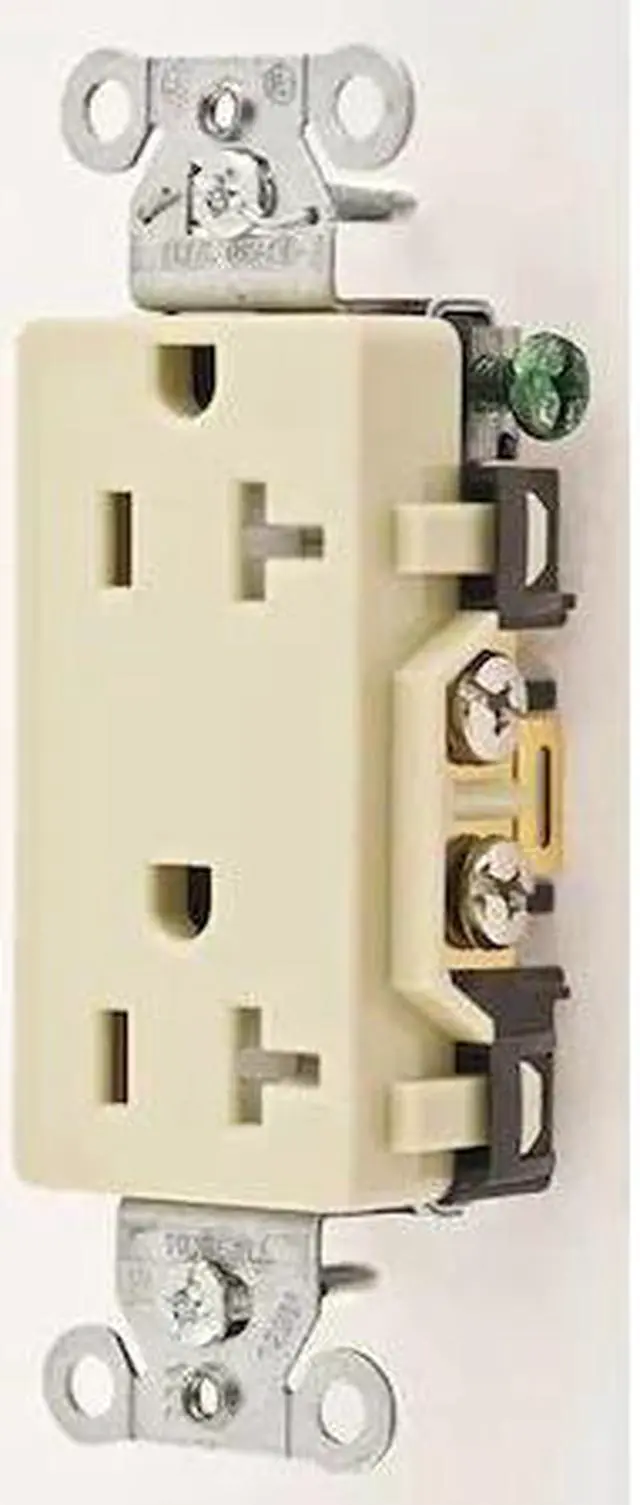

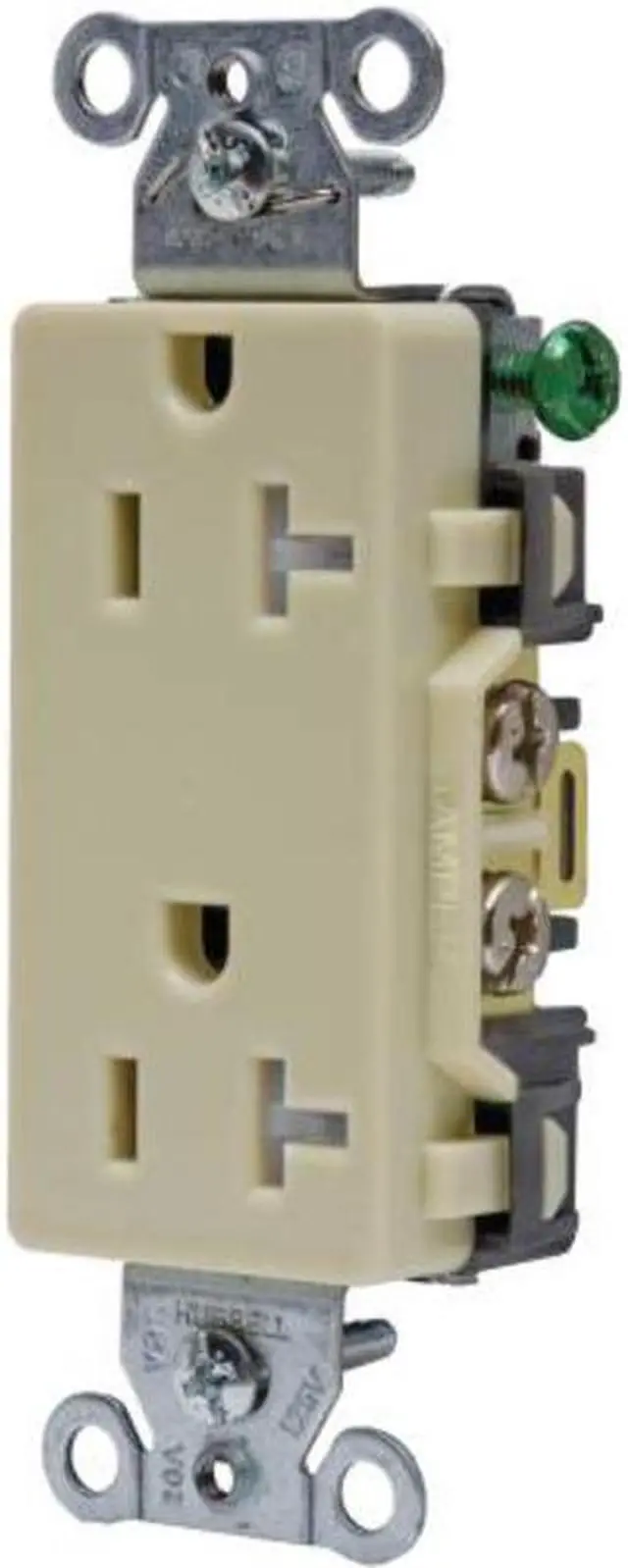

HUBBELL WIRING DEVICE-KELLEMS DR20ITR Duplex Straight Blade Receptacle, 5-20R,

The HUBBELL 5-20R Decorator Duplex Receptacle is a flush mount electrical outlet rated for 20A and 125V AC. Suitable for use in commercial and industrial environments, this receptacle includes a tamper-resistant shutter mechanism compliant with national electrical code requirements. Its smooth Style Line® decorator face features an aesthetic appearance suitable for modern installations.

Key Features of the HUBBELL 5-20R Decorator Duplex Receptacle:

• Amperage/Voltage: Rated for 20A, 125V AC operation


• NEMA Configuration: 5-20R duplex outlet with straight blade design


• Tamper Resistant: Built-in shutters designed to limit insertion of foreign objects


• Mounting Type: Flush mount installation with included mounting hardware


• Wiring Method: Supports both back and side wiring using screw terminals; accommodates #12#10 AWG copper conductors


• Material Construction: Nylon housing and faceplate with brass power contacts and ground screw


• Certification & Standards: UL Listed (File E2186), CSA Certified C22.2 No.42, NEMA WD-6 compliant, listed to UL Standard 498


• Operating Temperature Range: -40°F to 167°F (-40°C to +75°C)
