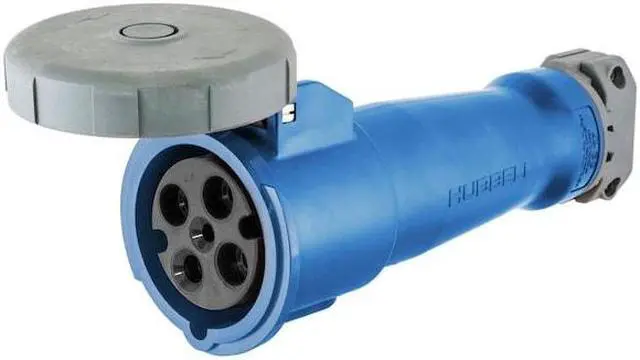

HUBBELL WIRING DEVICE-KELLEMS HBL460C9W IEC Pin and Sleeve Connector,60A,250V

The HUBBELL IEC Pin and Sleeve Connector is a watertight electrical connector intended for use in industrial settings where high-capacity power connections are specified. Rated for 60A and 250V AC in three-phase systems, this connector features a rugged Zytel 801 nylon body with an insulated non-metallic housing. It supports cable diameters from 0.5 to 1.45 inches and accommodates wire sizes from 8 AWG to 2 AWG using screw terminals.

Key Features of the HUBBELL IEC Pin and Sleeve Connector:

• Current/Voltage Rating: Rated for 60 amps at 250V AC; refer to application requirements to determine suitability.


• Watertight Construction: IP68/IP69K rated with NEMA Type 4X enclosure.


• Material: Body constructed from Zytel 801 nylon; housing made of PBT with V-0 flammability rating per UL94.


• Cable Accommodation: Accepts cables between 0.5 in and 1.45 in diameter; supports wire sizes from #8 AWG up to #2 AWG.


• Connection Orientation: Straight connection design with shrouded contacts for added protection.


• Grounding Style: IEC grounding configuration; grounded device with four wires (three poles).

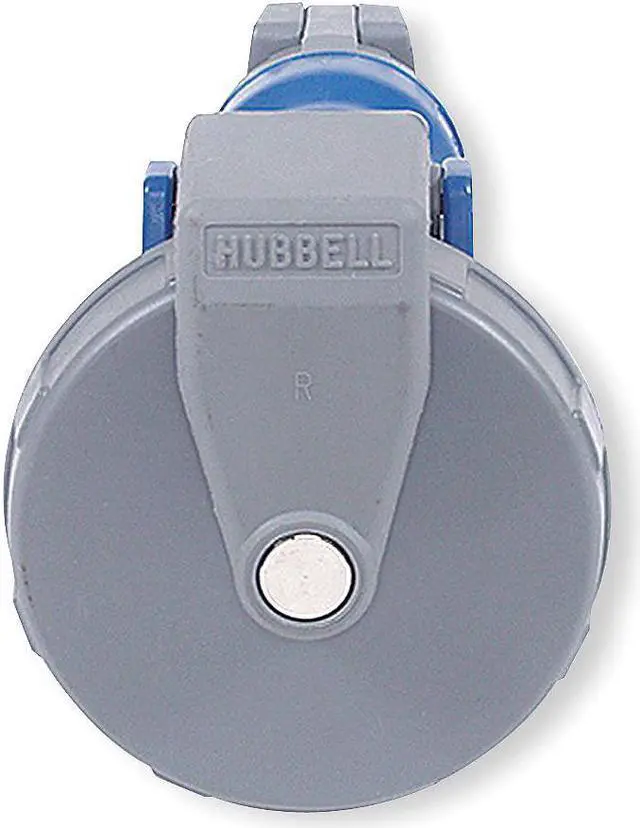

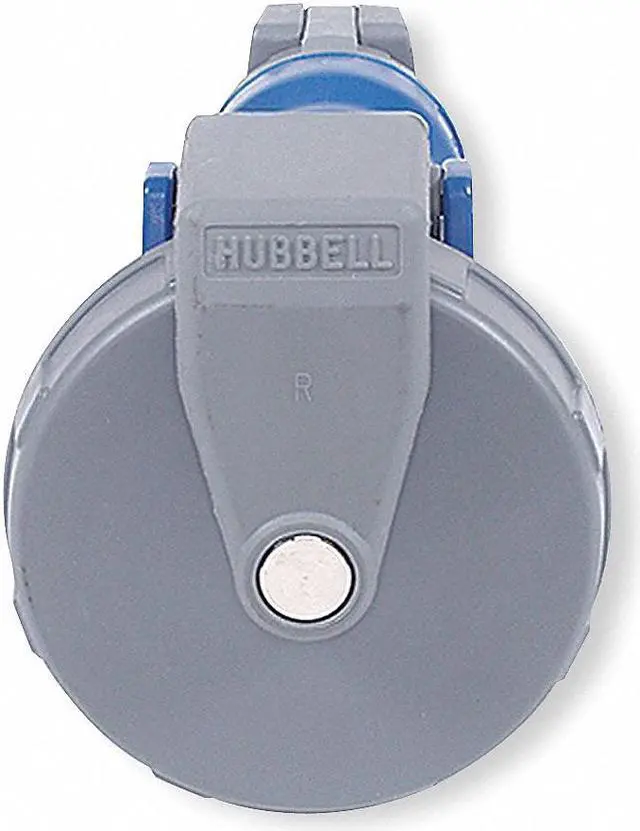

• Cord Grip & Cover: External cord grip is included for strain relief; spring-loaded self-closing gasketed cover is present on the device.


• Color Coding & Identification: Blue color-coded housing as part of the HBL Heavy Duty series.


• Temperature Range: Operates within -40°C to +75°C temperature range.


• Standards Compliance: CSA Certified LR280C, UL Classified to IEC standards (60309-1/60309-2), UL E146033 listed product.
