HUBBELL WIRING DEVICE-KELLEMS HBL8310I Straight Blade Receptacle, 5-20R, 20 A,

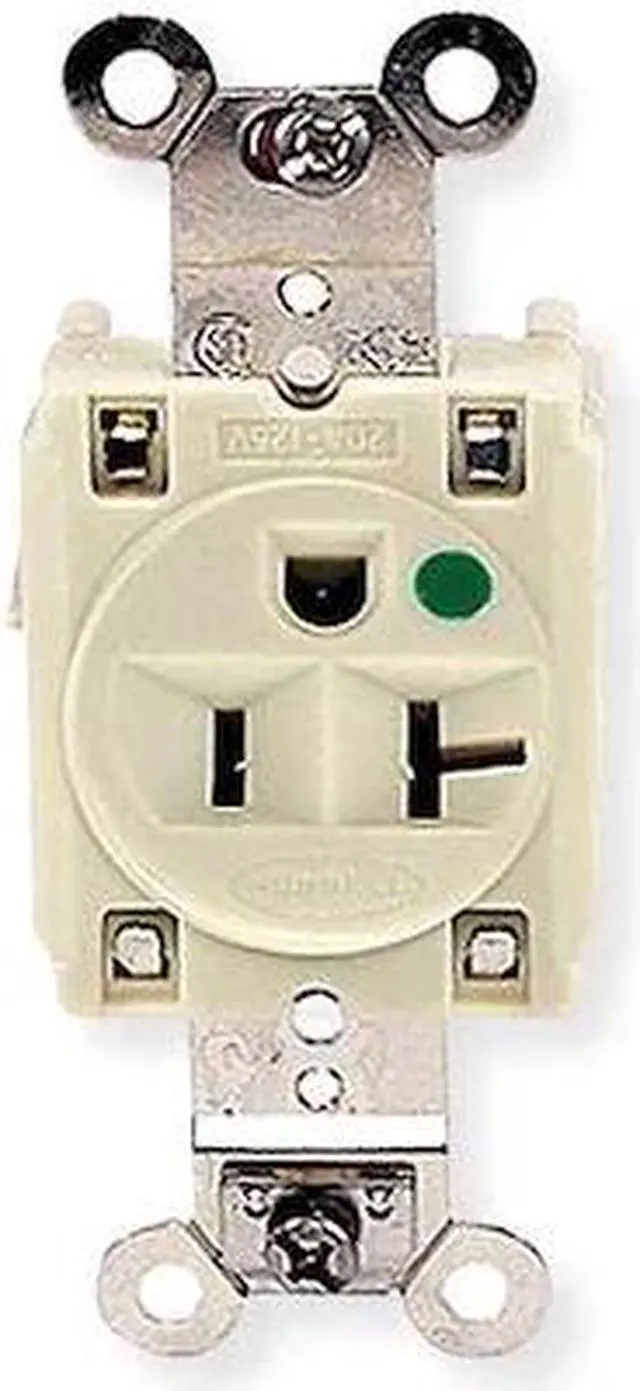

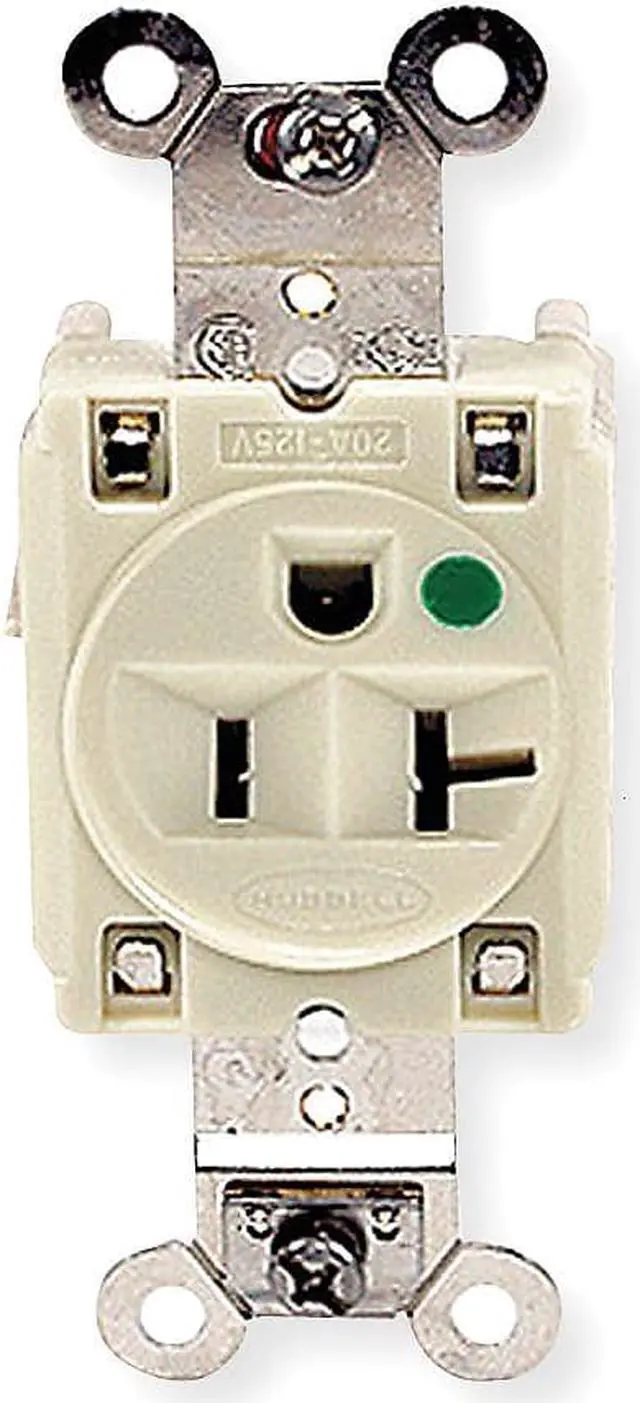

The HUBBELL 5-20R Hospital Grade Single Receptacle is a flush mount electrical outlet rated for 20A and 125V AC. Rated for extra heavy duty applications, this single straight blade receptacle features a grounded configuration with back and side wired screw terminals. It meets hospital grade standards as specified; suitable for use in indoor environments as rated.

Key Features of the HUBBELL 5-20R Hospital Grade Single Receptacle:

• Amperage/Voltage: Rated for 20A, 125V AC


• NEMA Configuration: 5-20R, single outlet


• Mounting Type: Flush mount with included mounting hardware


• Wiring Method: Back and side wired screw terminals; accommodates #12#10 AWG stranded or solid copper wire


• Contact Material: Brass contacts with nickel-plated bypass contact design


• Grounding System: Four-point grounding system designed to support ground continuity


• Material Construction: Impact modified PBT/reinforced PET body with nylon housing; impact-resistant deep face design


• Dielectric Strength & Flammability Ratings: Withstands minimum 2,000V dielectric voltage; UL94 V-0/V-2/5VA flammability ratings (top/base)


• Circuit Interrupting Capability: Certified for current interrupting at full rated current
