HUBBELL WIRING DEVICE-KELLEMS HBL8200HW Duplex Straight Blade Receptacle,

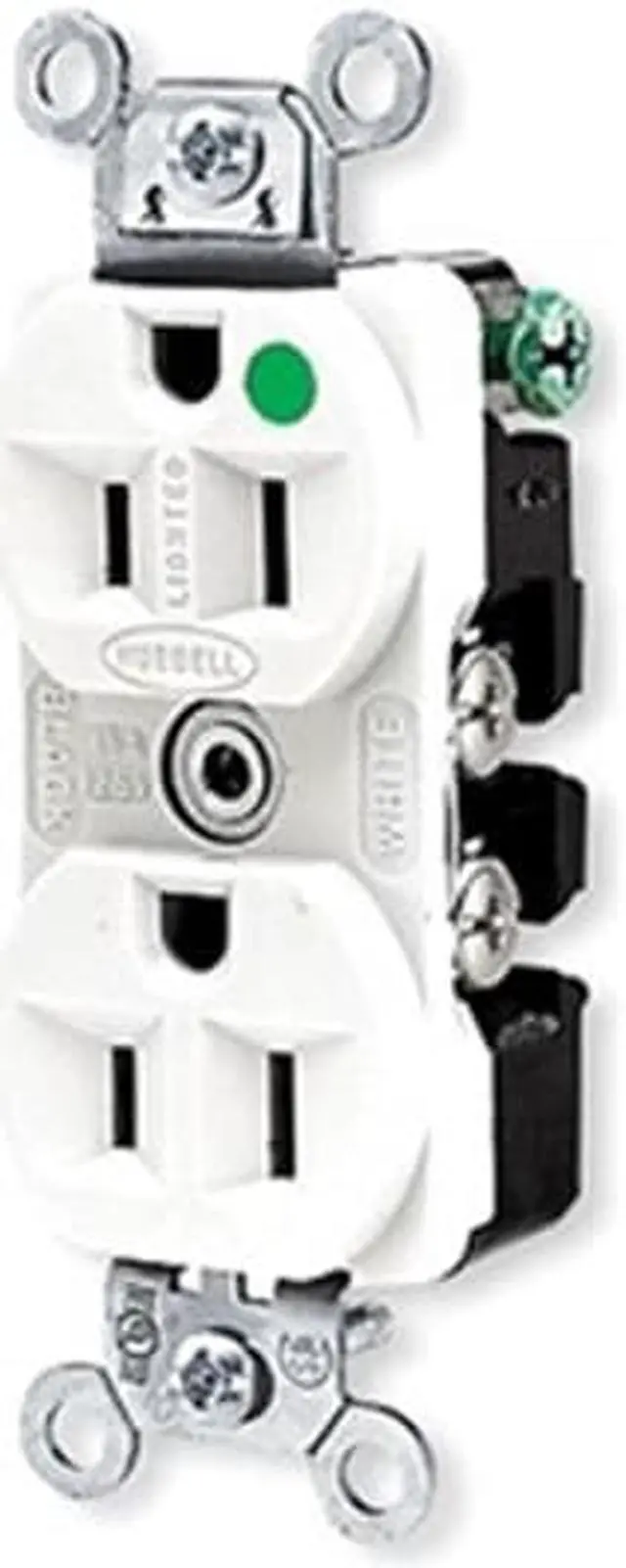

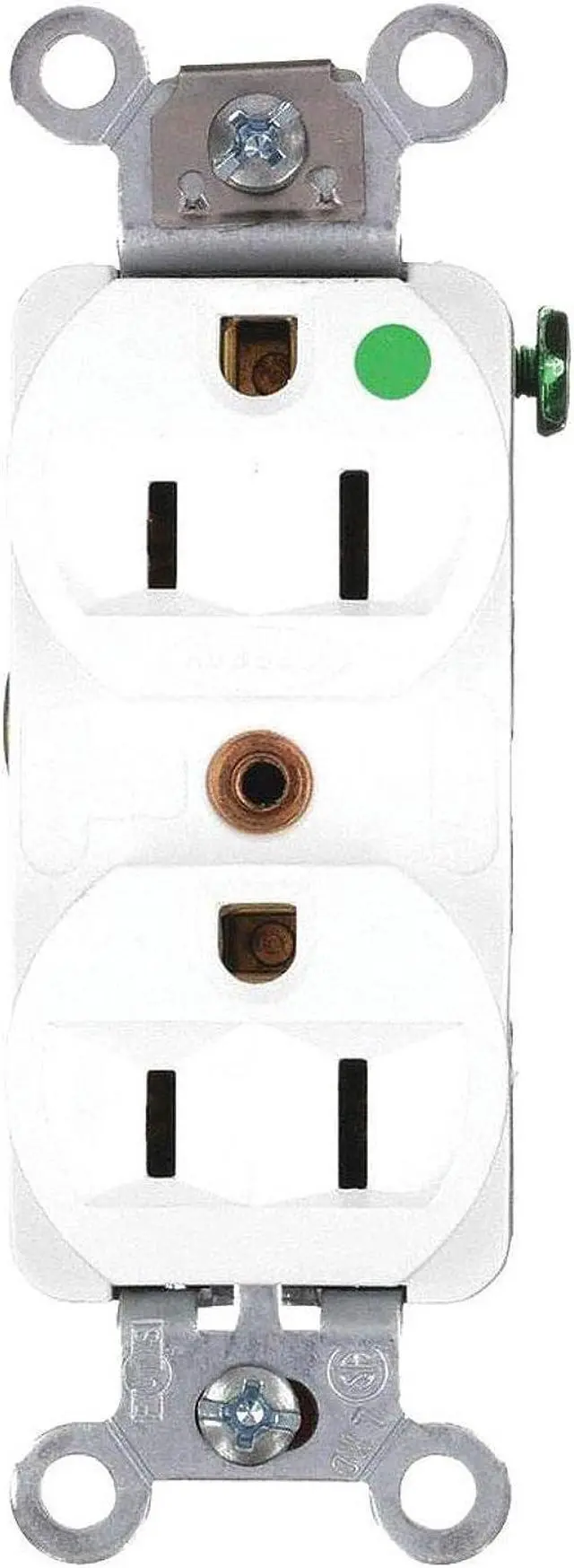

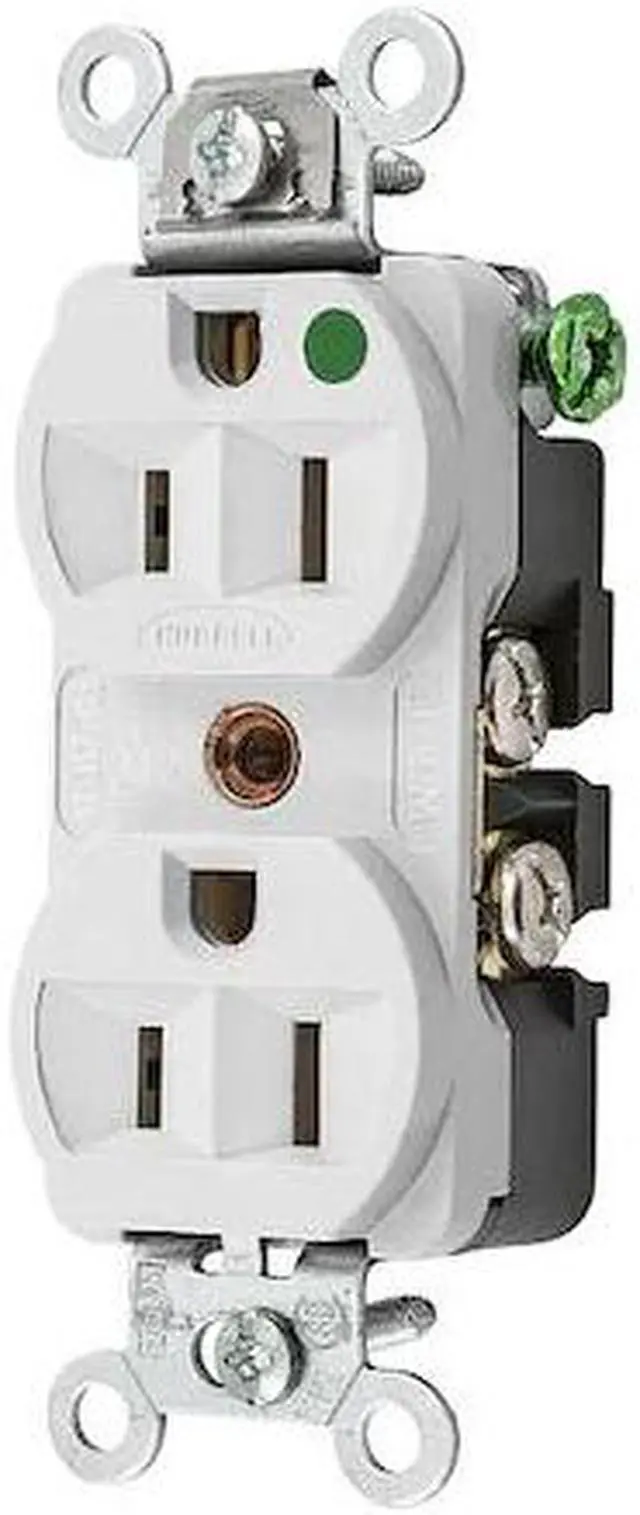

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R WH is a hospital grade, suitable for use in commercial environments. It features a slender, compact design with an impact-resistant thermoplastic housing with finder groove face to help prevent breakage. This device is rated for 15 amps at 125 volts AC, supports both back and side wiring methods, and accommodates #14 to #10 AWG copper wire. The receptacle complies with federal specifications for hospital grade devices and includes grounding staple, mounting hardware, and wall plate or weatherproof cover.

Key Features of the HUBBELL 15A Duplex Receptacle:

• Hospital Grade: Complies with FED SPEC Listed requirements; features heavy-duty construction.


• Electrical Ratings: Rated for 15 A at 125 V AC; NEMA configuration 5-15R; maximum wattage of 1875 W.


• Wiring Options: Back and side wired screw terminals support stranded or solid copper wire (#14#10 AWG).


• Grounding: Four-point grounding system


• Impact Resistance: Thermoplastic housing with deep face design enhances durability against physical abuse.


• Dielectric Strength & Flammability: Withstands minimum dielectric voltage of 2,000V; UL94 V-0 flammability rating.


• Operating Temperatures: Suitable for continuous operation up to 75°C (167°F) and down to -40°C (without impact).


• Certifications & Standards: CSA Certified C22.2 No.42 File285; Federal Specification W-C-596; NEMA WD-6; UL498 File E2186 compliant.
