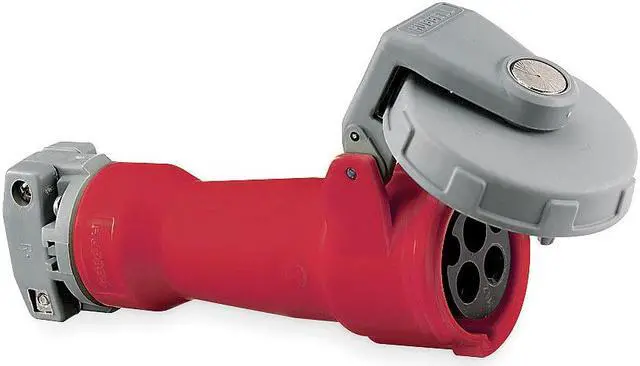

HUBBELL WIRING DEVICE-KELLEMS HBL420C7W Watertight Pin & Sleeve Connector, 20

The HUBBELL IEC Pin and Sleeve Connector is an electrical connector rated for 20A and 480V AC, intended for use in industrial environments. Rated for 20A and 480V AC, this three-phase, four-wire grounding device includes a non-metallic housing made of Zytel 801 nylon with an insulated body. It utilizes pressure terminal screws for wire connection and is compatible with conductor sizes ranging from #14 AWG to #10 AWG. The connector complies with the following standards: CSA Certified LR280C, UL Classified to IEC 60309-1/2.

Key Features of the HUBBELL IEC Pin and Sleeve Connector:

• Current/Voltage Rating: Rated for 20A at 480V AC; compatible with three-phase power systems


• Body Material: Constructed from Zytel 801 nylon and PBT housing


• Environmental Protection: IP68/IP69K ingress protection rating; rated as moisture-, corrosion-, and impact-resistant per manufacturer specifications


• Cord Mounting: Cord-mounted configuration compatible with cable diameters from 0.33 in to 0.83 in


• Wire Connection Type: Screw terminals compatible with #14#10 AWG conductors


• Features: Color-coded red housing for voltage identification; spring-loaded self-closing gasketed cover; shrouded contacts; grounded per IEC style


• Temperature Range: Operates continuously between -40°C (w/o impact) up to +75°C maximum temperature rating


• Standards Compliance: CSA Certified LR280C, UL Listed E146033, classified under IEC 60309-1 & -2 requirements
