HUBBELL WIRING DEVICE-KELLEMS HBL3100R6W Watertight Pin & Sleeve Receptacle,

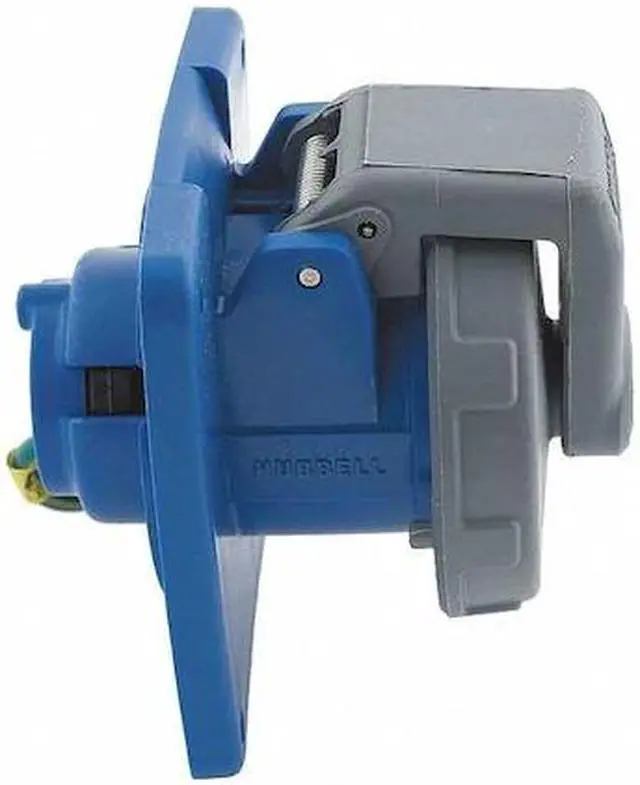

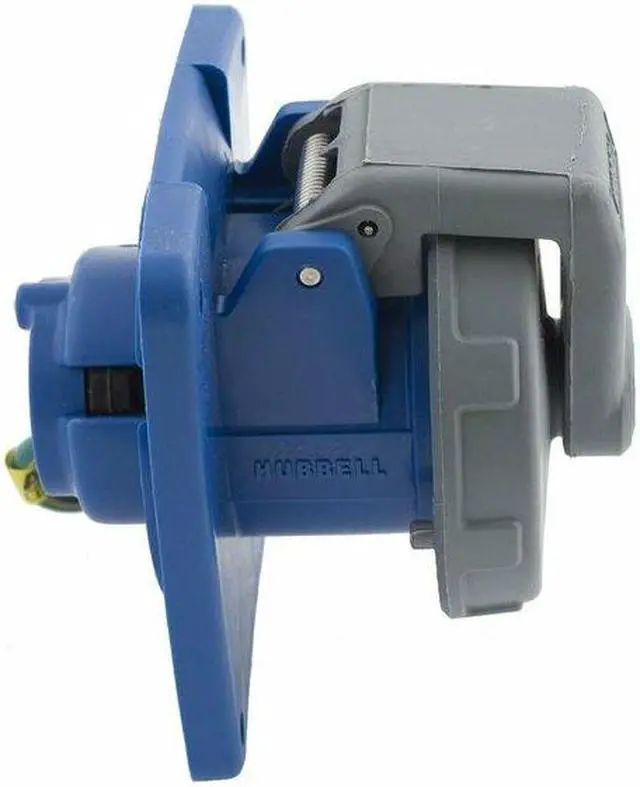

The HUBBELL IEC Pin and Sleeve Receptacle is a watertight electrical device intended for industrial applications, rated for 100A and 250V AC. This receptacle features a rugged, non-metallic housing made from Zytel 101 nylon with a flanged design and spring-loaded cap with gasketed seal to maintain watertight integrity. It is compatible with environments where secure connections, moisture resistance, and impact resistance are required.

Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:

• Current/Voltage Rating: Rated for 100A at 250V AC


• Ingress Protection: IP67 rating; NEMA Type 4X enclosure per manufacturer specifications regarding water and dust ingress


• Material Construction: Housing, body, flange made from Zytel 101 nylon; retainer constructed of high-impact thermoset material


• Cord Accommodation: Accepts wire sizes from 3 AWG up to 1/0 AWG using screw terminals


• Temperature Range: Operates between -40°C to +75°C maximum temperature


• Grounding Style: IEC grounded configuration with shrouded contacts


• Circuit Configuration: Three-phase operation with two poles and three wires


• Cover/Gasket System: Includes a self-closing gasketed cover with neoprene gasket


• Color Coding: Blue housing allows quick identification of voltage rating per IEC standards


• Standards Compliance: Meets CSA C22.2 No.0.17 & No.182.1, UL1682 & UL94 HB requirements; conforms to IEC specifications
