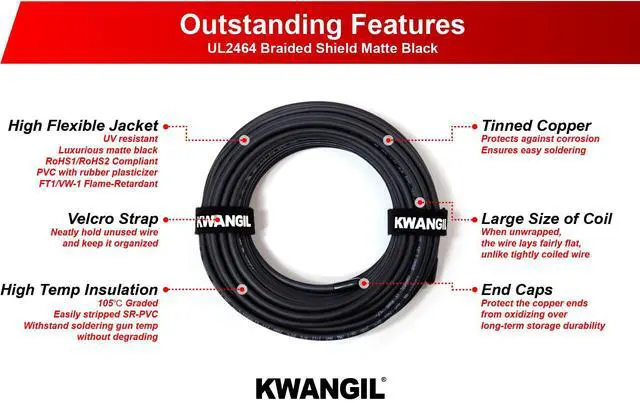

HIGHLY FLEXIBLE
With multi-stranded tinned copper and a durable, yet highly flexible PVC jacket with rubber plasticizer, this KWANGIL cable is perfect for any low voltage installation needs.
TRIPLE GLOBAL STANDARD

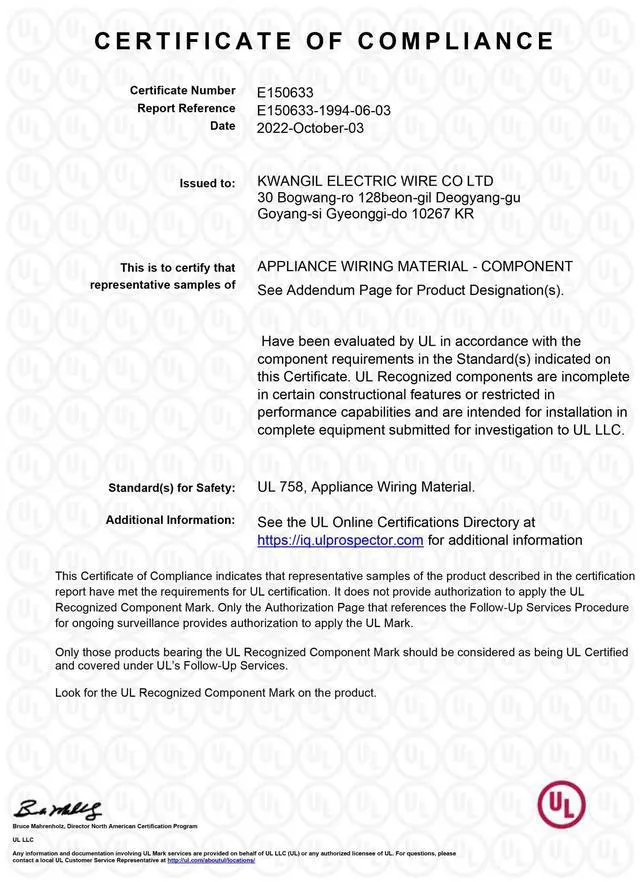

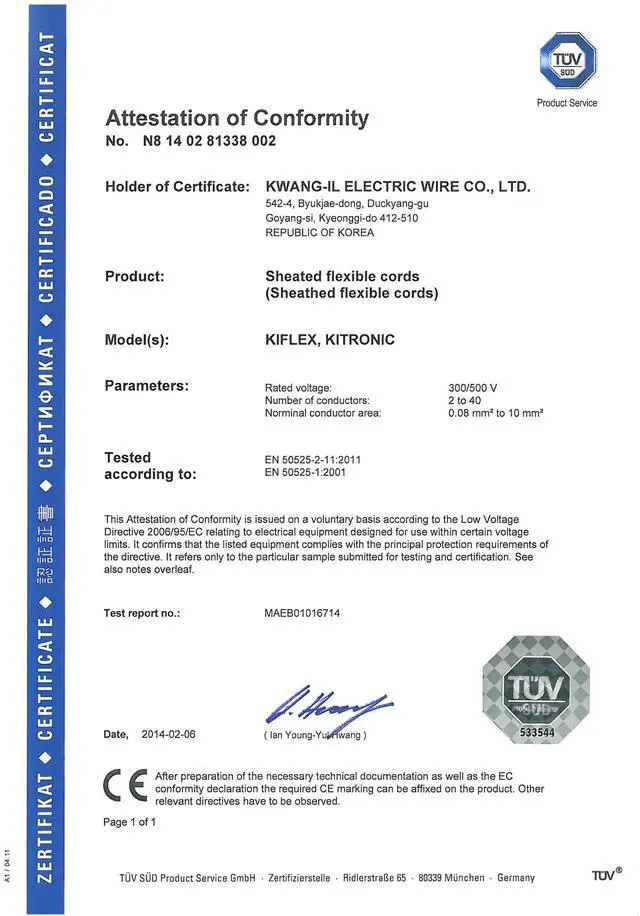

The UL2464 Matte Black cable meets global standards such as UL, cUL, and CE to ensure top quality and reliability of many kinds of projects. It is also UV resistant and meets RoHS, VW-1, and FT1 specifications for 300V 80?, PVC insulation, and PVC jackets. UL and cUL have been granted since 1995, and CE since 2012.
USED FOR VARIOUS PURPOSES
This alarm security burglar LED power cable wire can be used in a wide variety of applications, such as LED power, security CCTV, and access control installations. It can also be used to connect PIR sensors, door/window contacts, linking control panels together, and much more.
EASY STRIPPING JACKET OFF
Moderately loose extrusion makes it easy to strip the outer jacket off without cutting into the inner insulated wires. The pressure of extrusion was adjusted according to temperature, humidity, and the characteristics of PVC material, so that the jacket could be easily removed from 1.5 inches to 2 inches.
18AWG 4 Conductor Cable (UL2464) - Flexible OS+TC BRD Cable
About KWANGIL
Why Choose KWANGIL
High Quality And Great Value
- Since 1984
- 99.99% Pure Copper
- 100% Made in Korea
- Flame-Retardant Material
- Flexible, Durable Products
- Specialized in Custom Cables
Wire and Cable Specialist
Since 1984, producing only cables for 40 years
Over 40 years, KWANGIL has been a successful manufacturer of wire and cable. KWANGIL has provided transportation, telecommunications, factory automation, medical industries, robotics, shipbuilding, and aerospace, as well as military, manufacturers and government with all their cable products.
Top Notch Cables
KWANGIL ranks first in Korea in UL style cable production and exports to North America, Europe and Asia. Most of the products produced by KWANGIL are industrial products used in semiconductors, robots, aviation, plants, and submarines, which could be unfamiliar to ordinary consumers. However, KWANIGL have introduced TOP Quality KWANIL's products to the general consumers.
HIGHLY FLEXIBLE
With multi-stranded tinned copper and a durable, yet highly flexible PVC jacket with rubber plasticizer, this KWANGIL cable is perfect for any low voltage installation needs.
TRIPLE GLOBAL STANDARD
The UL2464 Matte Black cable meets global standards such as UL, cUL, and CE to ensure top quality and reliability of many kinds of projects. It is also UV resistant and meets RoHS, VW-1, and FT1 specifications for 300V 80?, PVC insulation, and PVC jackets. UL and cUL have been granted since 1995, and CE since 2012.
USED FOR VARIOUS PURPOSES
This alarm security burglar LED power cable wire can be used in a wide variety of applications, such as LED power, security CCTV, and access control installations. It can also be used to connect PIR sensors, door/window contacts, linking control panels together, and much more.
EASY STRIPPING JACKET OFF
Moderately loose extrusion makes it easy to strip the outer jacket off without cutting into the inner insulated wires. The pressure of extrusion was adjusted according to temperature, humidity, and the characteristics of PVC material, so that the jacket could be easily removed from 1.5 inches to 2 inches.

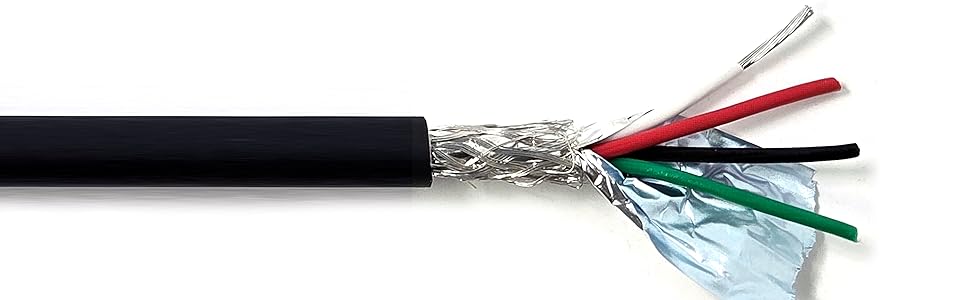

18AWG 4 Conductor Cable (UL2464) - Flexible OS+TC BRD Cable

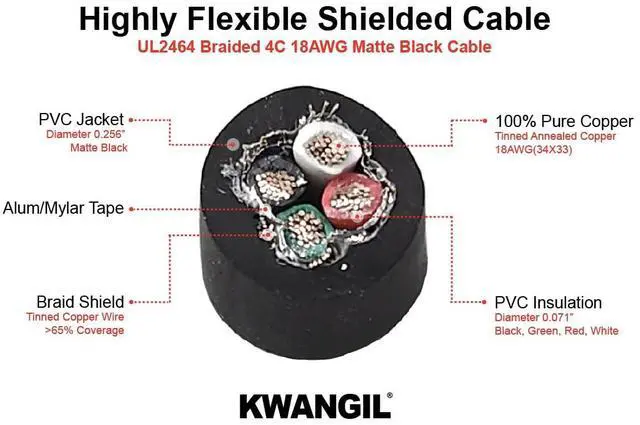

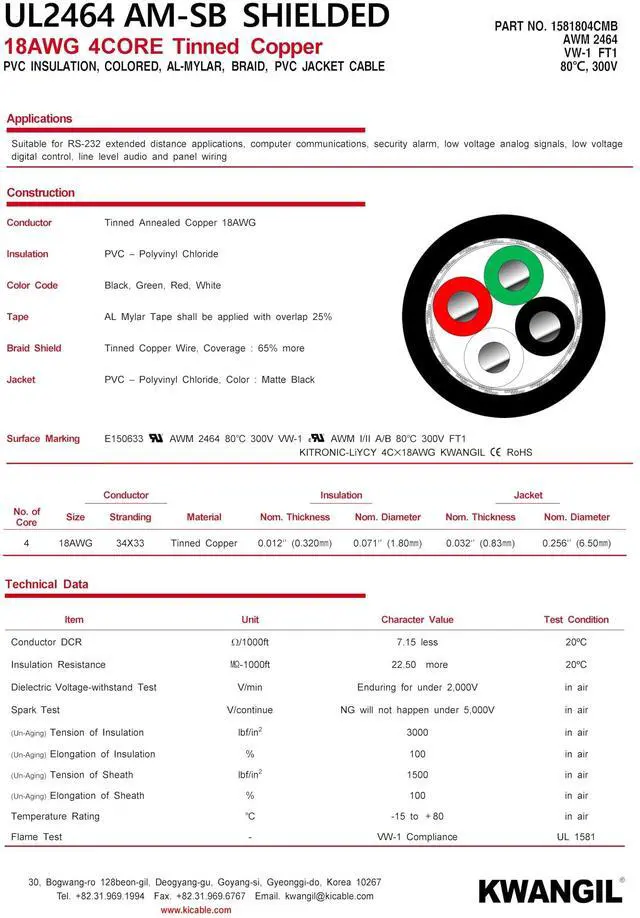

| No of Core | 4 |
| Conductor | 18AWG(34X33)/0.81mm², Tinned stranded copper |
| Insulation | Diameter 0.071‘’ (1.80?), SR-PVC |
| Tape | AL Mylar Tape, applied with overlap 25% |
| Braid Shield | Tinned Copper Wire, Coverage : 65% more |
| Jacket | Diameter 0.256‘’ (6.50?), PVC, Matte Black |
| UL AWM | UL Style 2464 (300V 80°C) |
| Color Code | Black, Green, Red, White |
| Cond. Resistance | 7.15 less ?/1000ft at 20°C(68°F) |
| Insu. Resistance | 22.50 more ?-1000ft at 20°C(68°F) |
| Spark Test | NG will not happen under 5kV/continue |
| Dielectric Strength | Enduring for under 2,000V/min in air |
| Operating Temp | -15? to +80? in air |
| Flame Test | VW-1 Compliance with UL 1581 |
| Environmental | RoHS Compliance |
About KWANGIL
Why Choose KWANGIL
High Quality And Great Value
- Since 1984
- 99.99% Pure Copper
- 100% Made in Korea
- Flame-Retardant Material
- Flexible, Durable Products
- Specialized in Custom Cables
Wire and Cable Specialist
Since 1984, producing only cables for 40 years
Over 40 years, KWANGIL has been a successful manufacturer of wire and cable. KWANGIL has provided transportation, telecommunications, factory automation, medical industries, robotics, shipbuilding, and aerospace, as well as military, manufacturers and government with all their cable products.
Top Notch Cables
KWANGIL ranks first in Korea in UL style cable production and exports to North America, Europe and Asia. Most of the products produced by KWANGIL are industrial products used in semiconductors, robots, aviation, plants, and submarines, which could be unfamiliar to ordinary consumers. However, KWANIGL have introduced TOP Quality KWANIL's products to the general consumers.
