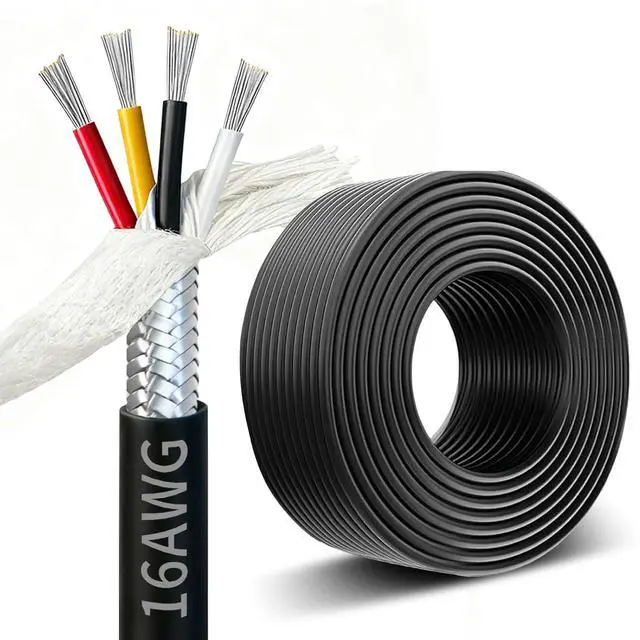

16AWG 1.5mm² Shielded Chain CNC Wire (15FT) UL2464 Tinned Copper Core Extreme Flexible 16 Gauge 4 Core Cable Electrical Wire for CNC Router Machine, CNC Spindle, Robot Arm,3D Printer,etc

Specification15ft 16 Gauge 4 conductor wire(Red & Black & yellow and green & white).
Rated voltage: 300V.
Rated temperature: 80/176.
Cond. resistance: 13.7 /KM20, Insulation
resistance: 10M/KM20, Dielectric
test: 2000AC V/min.

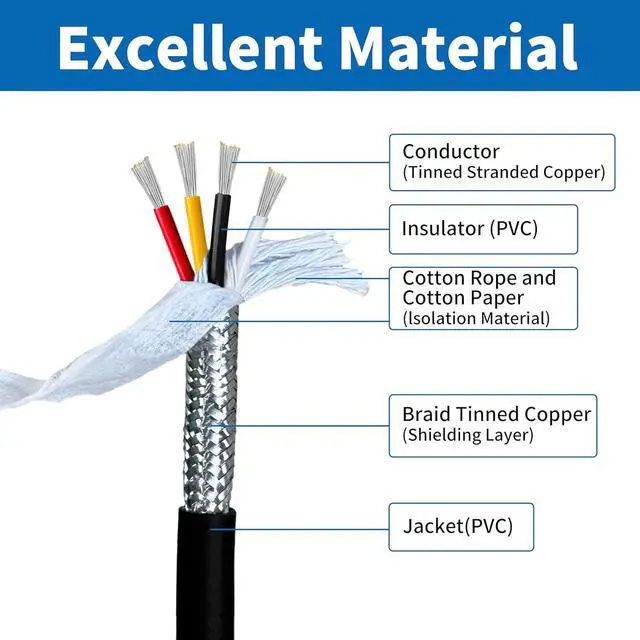

Material: PVC+Tinned Copper.

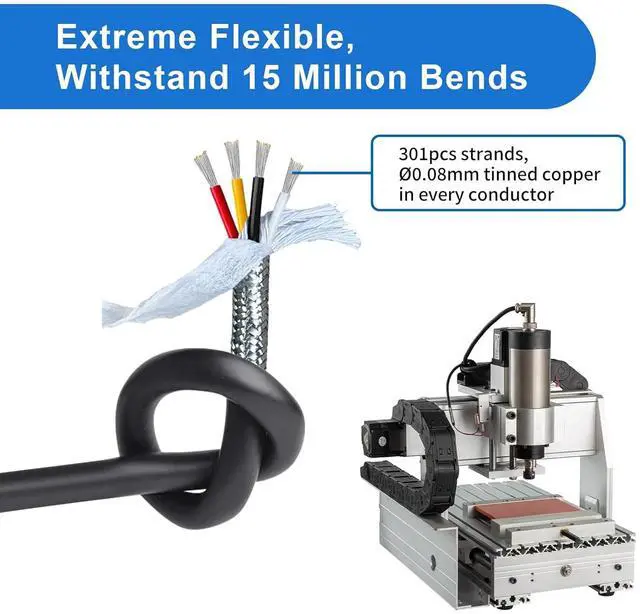

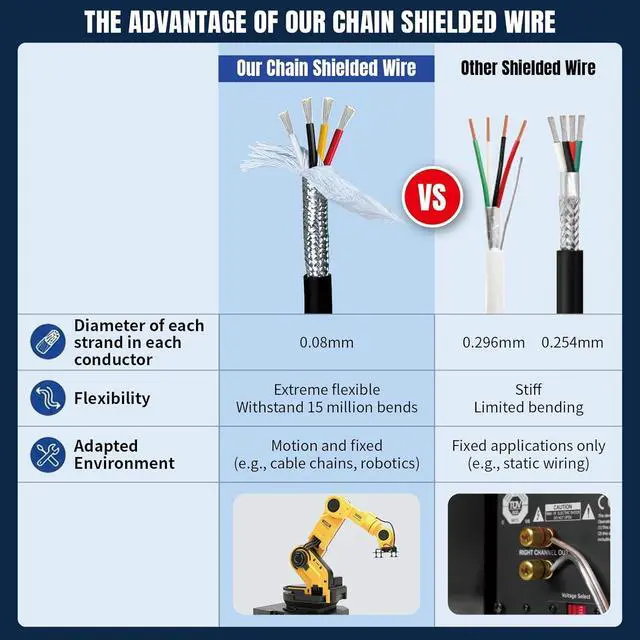

Extreme flexible301pcs strands, diameter 0.08 mm tinned copper strand in every conductor, withstand more than 15 million bends, suitable for chain system.
Shield wireThe shielding layer can shield this electromagnetic field inside the cable. Shielded cables also serve as grounding protection: if there is damage to the core wire of the cable, the leaked current can flow along the shielding layer, such as the grounding grid. At this point, shielded cables serve as safety protection.
High ConductivityTinned copper not only has good electrical conductivity, but the tin coating also has the characteristics of strong corrosion resistance and oxidation resistance. It can greatly extend the service life comparing with ordinary copper wire. It is also more suitable for soldering.
ApplicationIt is widely used for chains systems, robot arm, 3D printers, signal transmission, sensor technology, control equipment and computer control engineering and machinery.
