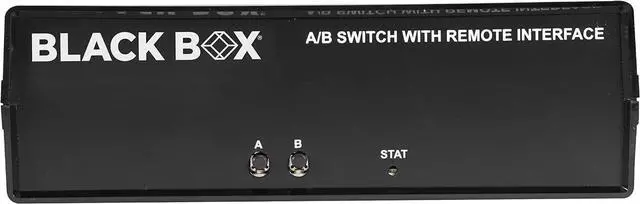

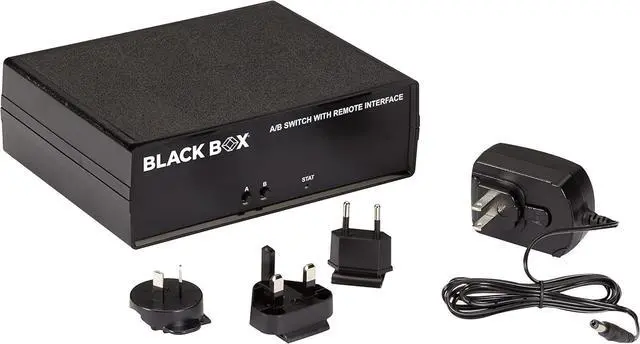

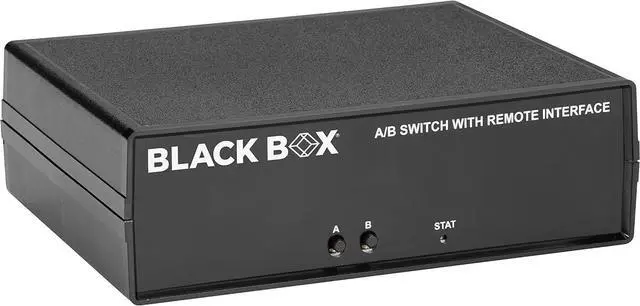

Black Box CAT6 A/B Switch Latching RJ45 Controlled Dry Contact

Switch ports are transparent and can handle speeds up to 10 Gbps.
Manual control of the switch port connection supported through pushbutton switches.
Connection maintained if power fails or is removed.

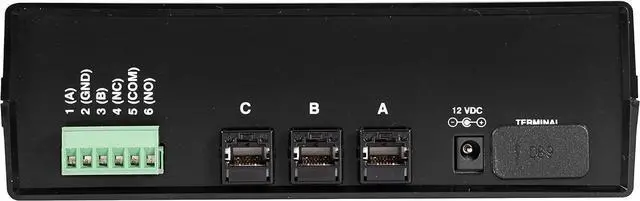

Connecting (shorting) input A (pin 1) to Ground (pin 2) for a minimum of approximately 100 msec will cause the unit to switch to the A position.
Connecting (shorting) input B (pin 3) to Ground (pin 2) for a minimum of approximately 100 msec will cause the unit to switch to the B position.

Overview

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The Latching CAT6 A/B RJ45 Switch supports switching of all eight leads and can be used to connect a network or shared device to one of two networks or remote devices. Switches are Ideal for government, healthcare, financial, or other applications.
