Tripp Lite 4-Port USB Extender Over Ethernet Kit, HDBaseT-USB3 Over Cat6a, 5 Gbps USB-A 3.2 Gen 1, Up to 328 Feet / 100 Meters, Power Over Cable, RS-232, TAA Compliant, 1-Year Warranty (BHDBT3-USB)
- USB EXTENDER KIT: Extends USB devices up to 328 feet using a single Cat6a cable. Ideal for webcams, interactive whiteboards, security equipment, and external data storage devices in conference halls, auditoriums, lecture halls, and places of worship.
- HDBASET-USB3.2 TECHNOLOGY: Supports USB 3.2 Gen 1 data transfer rates up to 5 Gbps. Backward compatible with previous USB generations. Supports both RS-232 and FSYNC GPIO pass-through for high-quality transmission across long distances.
- BUILT-IN PoC: Power over Cable technology powers either the transmitter or receiver over Cat6 cable. Connect the power supply at either end to power both sides. LEDs on both the transmitter and receiver indicate power and signal transmission.
- PLUG-AND-PLAY: No software or drivers required. Transmitter and receiver both mount to a wall using the included brackets. TAA-compliant makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- RELIABLE PRODUCT
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

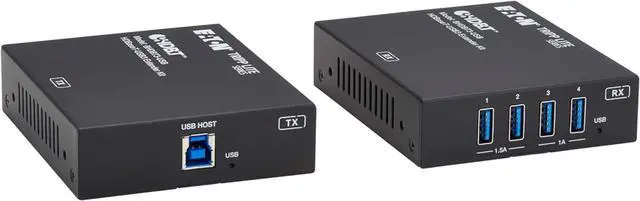

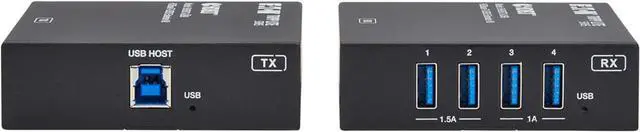

HDBaseT Extender Kit Allows Installation of USB Devices Up to 100 m (328 ft.) from the Source
This USB transmitter and receiver use HDBaseT technology to extend and expand the potential of your USB devices. Using a single Cat6a cable, the BHDBT3-USB extends four USB peripherals up to 328 feet (100 meters), giving you more flexibility in placing webcams, interactive whiteboards, security and surveillance equipment and external data storage devices, among others.
Designed with the Newest HDBaseT 3.0 Technology

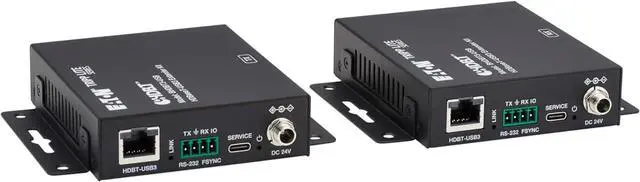

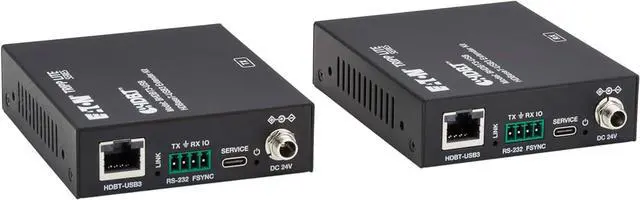

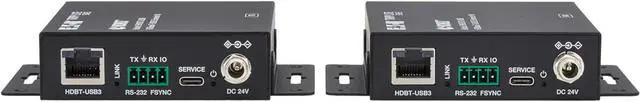

The BHDBT3-USB extension kit uses the latest Valens chipset to provide a modern solution to USB extension. It supports USB 3.2 Gen 1 data transfer rates up to 5 Gbps and is backward compatible with previous USB generations. It also supports both RS-232 and FSYNC GPIO pass-through, making the BHDBT3-USB ideal for conference halls, auditoriums, lecture halls, museums, exhibition rooms and anywhere else that requires high-quality transmission across long distances.
Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
Bi-directional 24V Power over Cable (PoC) support powers the entire installation over Cat6a cable. Connect the included power supply at either the transmitter or the receiver end. LEDs on both the transmitter and transceiver light up to indicate the system is receiving power and a USB signal is being transmitted. PoC helps you avoid the hassle of a bulky power brick and gives you the freedom to place one end where needed without worrying about finding a nearby AC outlet.
Plug-and-Play Convenience and Easy Installation

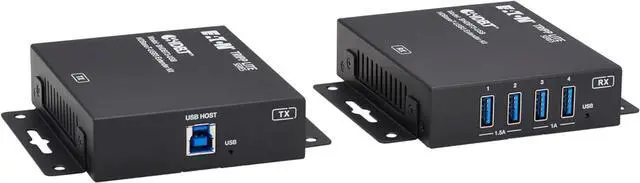

The BHDBT3-USB requires no software or drivers to install, making setup simple. The transmitter and receiver mount to a wall using the included brackets.
TAA-Compliant for GSA Schedule Purchases
The BHDBT3-USB is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
This USB transmitter and receiver use HDBaseT technology to extend and expand the potential of your USB devices. Using a single Cat6a cable, the BHDBT3-USB extends four USB peripherals up to 328 feet (100 meters), giving you more flexibility in placing webcams, interactive whiteboards, security and surveillance equipment and external data storage devices, among others.
Designed with the Newest HDBaseT 3.0 Technology
The BHDBT3-USB extension kit uses the latest Valens chipset to provide a modern solution to USB extension. It supports USB 3.2 Gen 1 data transfer rates up to 5 Gbps and is backward compatible with previous USB generations. It also supports both RS-232 and FSYNC GPIO pass-through, making the BHDBT3-USB ideal for conference halls, auditoriums, lecture halls, museums, exhibition rooms and anywhere else that requires high-quality transmission across long distances.
Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
Bi-directional 24V Power over Cable (PoC) support powers the entire installation over Cat6a cable. Connect the included power supply at either the transmitter or the receiver end. LEDs on both the transmitter and transceiver light up to indicate the system is receiving power and a USB signal is being transmitted. PoC helps you avoid the hassle of a bulky power brick and gives you the freedom to place one end where needed without worrying about finding a nearby AC outlet.
Plug-and-Play Convenience and Easy Installation
The BHDBT3-USB requires no software or drivers to install, making setup simple. The transmitter and receiver mount to a wall using the included brackets.
TAA-Compliant for GSA Schedule Purchases
The BHDBT3-USB is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
