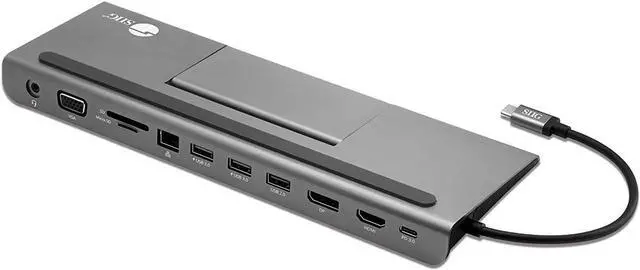

SIIG USB C MST Triple Monitor Docking Station for Windows Thunderbolt 3 Compatible [Single 4k, Dual 1080p, Triple 720p] 100W PD - HDMI/VGA/DP, Gigabit Ethernet, SD/TF, USB 3.0 and Audio JU-DK0E11-S1

Aluminum USB-C MST Video Docking Station with PD -
Versatile external docking station adds multiple connectivity ports to USB-C enabled computers and up to 100W PD charging of your laptop to help you tackle every task and boost productivity (JU-DK0E11-S1)

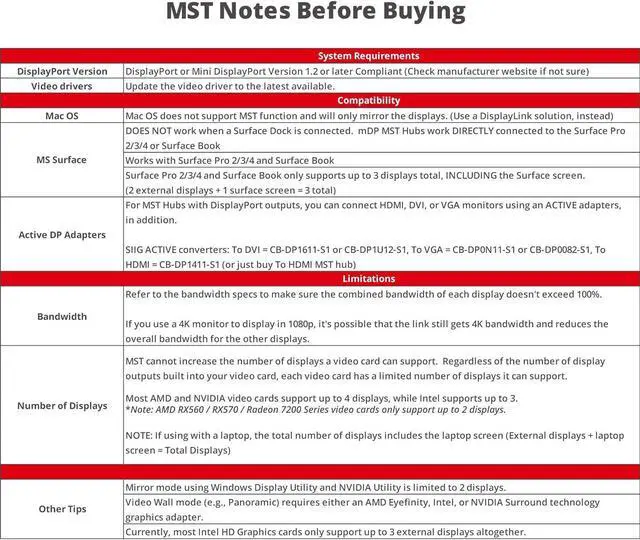

!!NOTICE to APPLE MAC USERS!!
MAC OS DOES NOT SUPPORT MST, NO EXTENDED DISPLAYS OR VIDEO WALL, ONLY MIRROR MODE
This multiport MST enabled docking station adapter instantly adds valuable display connectivity to your port-limited laptop or PC. When paired with a laptop, this presents a versatile and powerful workstation.
Add up to three external displays or monitors (SEE VIDEO MODES AND RESOLUTION DETAILS TO THE RIGHT). Connect up to 3 USB powered devices, such as a mouse, keyboard, and external hard drive.
Three display modes included: Extended, Mirror, Primary, and Video Wall

Note: Video Wall mode requires either an AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
MAC OS DOES NOT SUPPORT MST, NO EXTENDED DISPLAYS OR VIDEO WALL, ONLY MIRROR MODE

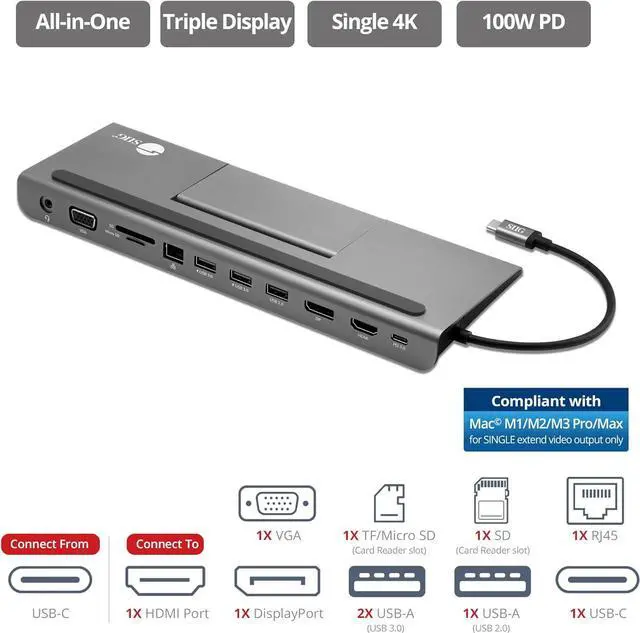

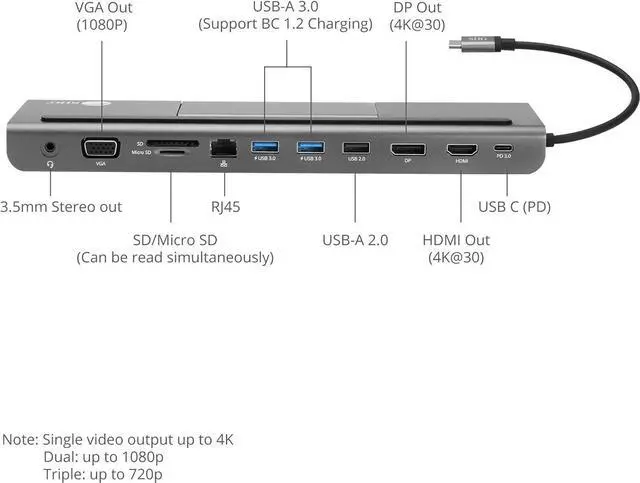

1 x HDMI 1.4 (4K@30Hz)
1 x DisplayPort (4K@30Hz)
1 x VGA (1920x1080 60Hz)
2 x USB 3.0
1 x USB 2.0
1 x USB-C (PD 3.0) Note: Connects to the laptop's USB-C Charger
1 x RJ45 Gigabit Ethernet (10/100/1000 Mbps)
1 x SD 3.0 Card Slot (Standard & Micro)
1 x Audio Jack (3.5mm)

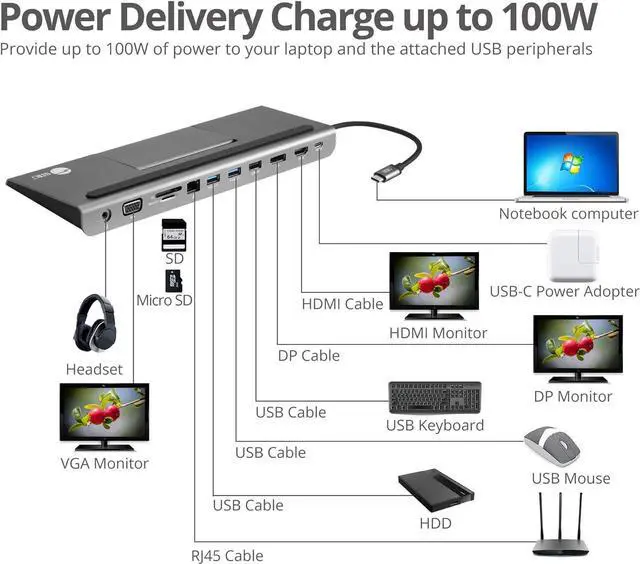

Delivers up to 100W power delivery to charge your laptop with the charger that comes with your laptop or sold separately.
No need to worry about unplugging the dock to be able to charge your laptop.
Use docking and charge laptop simultaneously.
Eliminates need to use two separate power adapters for dock and laptop.

Single video mode:
DisplayPort: Up to 3840x2160 @30Hz
HDMI: Up to 3840x2160p @30Hz
VGA: Up to 1920x1080p @60Hz
Dual video mode:
DP+HDMI or DP+VGA or HDMI+VGA: Up to 1080p @60Hz
Triple video mode:
DP+HDMI+VGA: Up to 720p @60Hz (each display)
All-in-one video converter provides video outputs you will need, so you can connect your PC or Windows Laptop to virtually any display, HDMI, VGA, DisplayPort
Boost productivity by connecting a one, two, or three extra monitors
Use as a laptop stand or mobile phone holder, in addition to connectivity
Avoid the inconvenience of carrying multiple display adapters for each display type
Generate a triple, dual, or single monitor work station to boost productivity and ease of viewing
Added connectivity by connecting up to three USB devices and standard and micro SD cards simultaneously

Requirements
Desktop or laptop computer with an available USB-C port with DP Alt Mode or Thunderbolt 3 technology
Note: The docking station's video output will work properly only when the USB-C port transmits DisplayPort signal (DP Alt)
Video Wall mode requires either an AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
Laptop USB-C charger for PD charging
Windows 10 / 8 / 7
ONLY MIRROR MODE for MAC OS

Specifications
Chipset: VL817+RTL8153+GL850+HS100-B
Compatible with DisplayPort 1.2 with MST graphics cards with AMD Eyefinity, NVIDIA Surround and Intel Multiple Displays technology
Supports Power Delivery 3.0 specification up to 100W through USB-C
Supported video cable length: HDMI: Up to 5M (max) & DisplayPort: Up to 3M (max) & VGA: Up to 10M (max)
Integrated Gigabit Ethernet: Up to 1000 Mbps data transfer rate - Backward compatible with 10/100 Mbps
Cable length: 1200±10 mm
Color: Iron Gray with Black
Housing material: Aluminum + Non-slip mat
Supports IEEE 802.3x full duplex operation
Compatible with IEEE 802.3, 802.3u
Supports crossover detection and auto-correction
Stereo audio output (speakers/headphones)
SD 3.0 memory card slot:
Memory card type: SD / SDHC (UHS-I) / SDXC (USH-I) / Micro SDHC (UHS-I) / Micro SDXC (UHS-I)
Memory card capacity: 2TB (max)
Supports transfer rate up to
