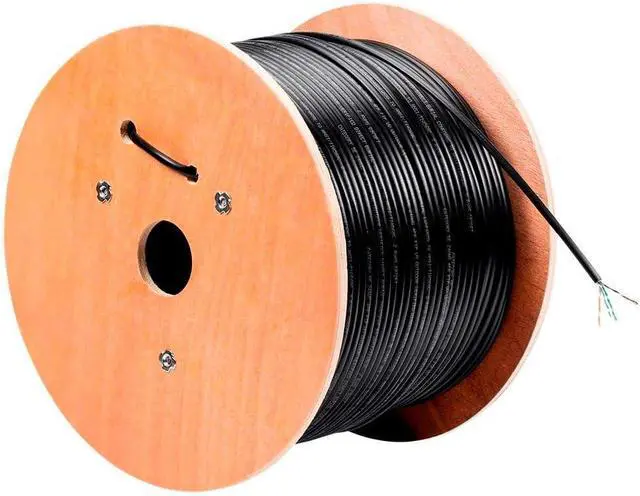

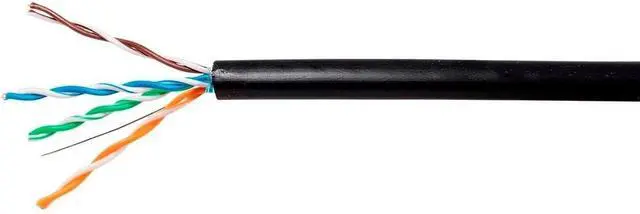

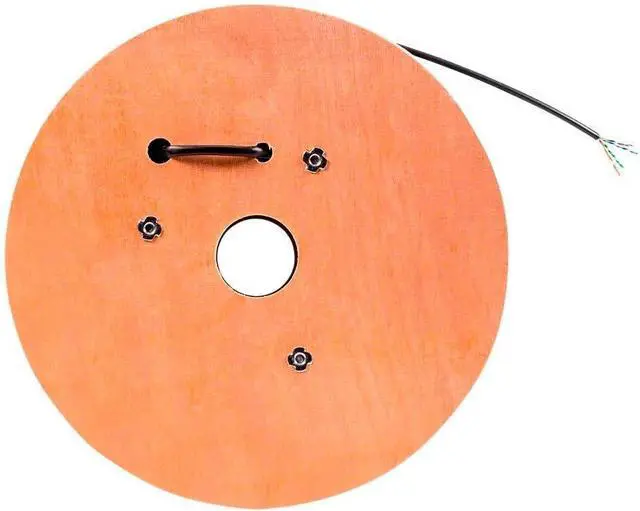

Monoprice Cat5e Ethernet Bulk Cable - Network Internet Cord - Solid, 350Mhz, UTP, Pure Bare Copper Wire, Outdoor, 24AWG, No Logo, 1000ft, Black
- Buy with Confidence: With Monoprice's Lifetime Warranty on all Cables, you can rest assured we stand behind our products and our customers.
- Insulation Overall Diameter: 0.940 0.005mm Insulation Average Thickness: 0.220mm 0.005mm | Jacket: PE + PE (UV) | Outer Jacket Average Wall Thickness: 0.53 0.05mm | Outer Jacket Outside Diameter: 5.8 0.5mm | Color Jacket: Black
- Mechanical Characteristics includes: Temperature Rating Installation: -40 ~ +60C | Temperature Rating Operating: -40 ~ +60C |Mininum Bend Radius: Eight times the outer diameter | Maximum Pulling Force: 25 lbs. | Tensile Strenth: Before ? 15 Mpa
- Elongation: Aging ? 150 Percent | Aging Condition: 100C x 168 hours, After = 75 Percent of unaged, Aging = 50 Percent of unaged | Rated Temperature / Voltage: 5000M?/km
- Electrical Characteristics includes: Maximum Conductor DC Resistance @ 20: ?9.5 ? / 100 Meters | Maximum DC Resistance Unbalanced @ 20: ?2.5 Percent | Maximum Pair-to-Pair Ground Capacitance: ?330 pF / 100 Meters
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Buy with Confidence: With Monoprice's Lifetime Warranty on all Cables, you can rest assured we stand behind our products and our customers.
Insulation Overall Diameter: 0.940 0.005mm Insulation Average Thickness: 0.220mm 0.005mm | Jacket: PE + PE (UV) | Outer Jacket Average Wall Thickness: 0.53 0.05mm | Outer Jacket Outside Diameter: 5.8 0.5mm | Color Jacket: Black
Mechanical Characteristics includes: Temperature Rating Installation: -40 ~ +60C | Temperature Rating Operating: -40 ~ +60C |Mininum Bend Radius: Eight times the outer diameter | Maximum Pulling Force: 25 lbs. | Tensile Strenth: Before ? 15 Mpa
Elongation: Aging ? 150 Percent | Aging Condition: 100C x 168 hours, After = 75 Percent of unaged, Aging = 50 Percent of unaged | Rated Temperature / Voltage: 5000M?/km
Electrical Characteristics includes: Maximum Conductor DC Resistance @ 20: ?9.5 ? / 100 Meters | Maximum DC Resistance Unbalanced @ 20: ?2.5 Percent | Maximum Pair-to-Pair Ground Capacitance: ?330 pF / 100 Meters | Characteristic Impedance: 100 15 ?
Insulation Overall Diameter: 0.940 0.005mm Insulation Average Thickness: 0.220mm 0.005mm | Jacket: PE + PE (UV) | Outer Jacket Average Wall Thickness: 0.53 0.05mm | Outer Jacket Outside Diameter: 5.8 0.5mm | Color Jacket: Black
Mechanical Characteristics includes: Temperature Rating Installation: -40 ~ +60C | Temperature Rating Operating: -40 ~ +60C |Mininum Bend Radius: Eight times the outer diameter | Maximum Pulling Force: 25 lbs. | Tensile Strenth: Before ? 15 Mpa
Elongation: Aging ? 150 Percent | Aging Condition: 100C x 168 hours, After = 75 Percent of unaged, Aging = 50 Percent of unaged | Rated Temperature / Voltage: 5000M?/km
Electrical Characteristics includes: Maximum Conductor DC Resistance @ 20: ?9.5 ? / 100 Meters | Maximum DC Resistance Unbalanced @ 20: ?2.5 Percent | Maximum Pair-to-Pair Ground Capacitance: ?330 pF / 100 Meters | Characteristic Impedance: 100 15 ?
