VisionTek VT2510 USB-C MST 3X Monitor Docking Station - 100W of Power, 2X DispayPort, 1x HDMI, 4X USB Ports, Audio, Ethernet, SD Reader for Windows

Previous page
Next page VT2510 USB-C Multi Display MST Dock with 85W Power Delivery 901551
In the Box
VT2510 Docking Station | 100W DC 20V/5A Power Adapter | USB-C to USB-C Cable (1m) | User Manual
Key Features
Supports 3 Displays (HDMI or DP) via DP Alt Mode
USB-C connection to host system

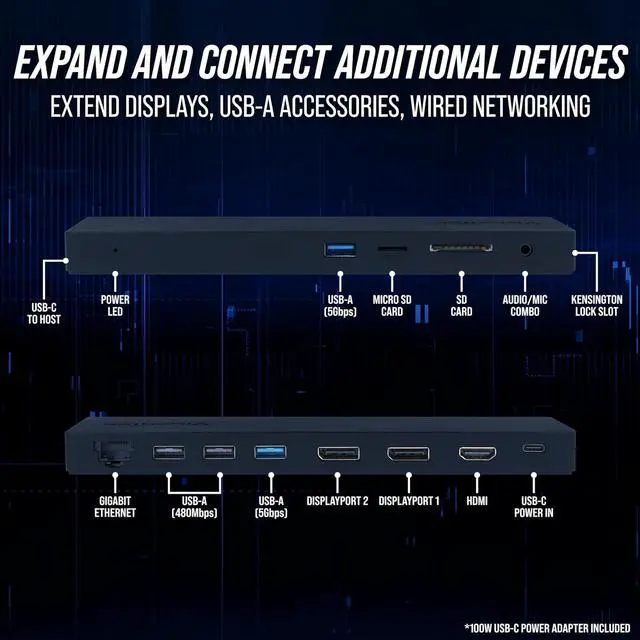

2x DP, 1x HDMI, 4x USB, Audio, Ethernet, SD Reader, Kensington Lock
100W of Power Delivery via USB-C from included power supply
Universal Compatibility with PC & Mac
Compatible with USB-C DP Alt Mode, USB4, Thunderbolt 3 and Thunderbolt 4 systems
Output video utilizing the power of your system and USB-C DP Alt Mode. Connect up to 3 x 1080P FHD displays via HDMI or DisplayPort.
Works in PC and Mac environments
Windows 11, 10, 8.1, 7
macOS 10.10 and later
Compatible with USB-C host systems with DP Alt Mode. Extend 3 monitors, transfer files, and power your laptop all from a single port.
Expand Your Workspace
The VT2510 supports up to three external displays, allows for file and data transfer up to 5Gbps speeds, and up to 100W USB-C Power Delivery. With its multi-display support, SD card reader, and USB 2.0 and USB 3.0 ports, the VT2510 successfully bridges the gap from previous USB standards to newer USB protocols by providing 4K video support and multiple generations of USB port connectivity. Compatible with with USB-C DP Alt Mode, USB4, Thunderbolt 3 and Thunderbolt 4 systems.
Home Workstation Evolved
This docking station is ideal for students, and professionals who require a simple plug-and-play multi monitor solution. Perfect for work from home, government, finance and sales environments that require easy multi display desktop expansion.
Expansion Simplified
Combining the expanded connectivity of USB-C and DP Alt Mode, the VT2510 offers high-performance desktop power and function on your laptop through a single USB-C connection. With the compact and modern design of this dock, you can add a new level of versatility to your setup by expanding your monitor space and accessing up to 11 accessories and peripherals.
USB-C DP Alt Mode
DP Alt Mode is an optional capability of USB-C that enable it to transfer video signals over dedicated lanes. Previously, connecting to external monitors required the use of HDMI or DisplayPort adapters. Utilizing the video capabilities of your host device DP Alt mode allows for extension of additional displays using the USB-C connection to the docking station without any adapters.
Note that max resolutions from USB-C DP Alt Mode connection is dependent on the host systems USB-C port capabilities.
Operating System: Windows 11, 10, 8.1, 7 | macOS 10.10 and later
Hardware Requirements: USB-C Port with DP Alt Mode | USB-C Power Delivery Support
Compatible with USB4, Thunderbolt 3 and Thunderbolt 4 Systems
Note: Host System must support DP 1.3 HBR3 for 2 displays @ 4K 30Hz, Host System must support DP 1.3 and have onboard graphics that supports MST for 3 external displays at 1080p

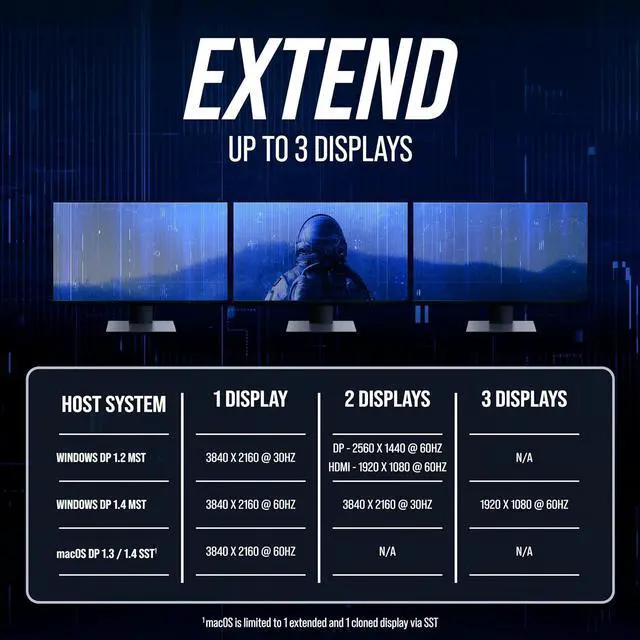

Supported Resolutions
Compatibility with Windows or macOS
Single Display Support:
DisplayPort: Resolutions up to 3840 x 2160 @ 60Hz (4K)
HDMI: Resolutions up to 3840 x 2160 @ 60Hz (4K)
Dual Display Support:
DisplayPort + DisplayPort: Resolutions up to 3840 x 2160 @ 30Hz (4K)
HDMI: Resolutions up to 3840 x 2160 @ 30Hz (4K)
Triple Display Support
DisplayPort + DisplayPort + HDMI: Resolutions up to 1920 x 1080 @ 60Hz (FHD)
Note: Performance and maximum resolutions are dependent on host systems onboard video capabilities, macOS supports one external display extended up to 3840 x 2160 @ 60Hz or one external display mirrored.
