VisionTek VT2600 USB-C MST 3X Monitor Docking Station - 100W Power, 2X DisplayPort, 2X HDMI, 3X USB-A, 3X USB-C, Audio, Ethernet, SD Reader for Windows

Previous page
Next page VT2600 USB-C DP 1.4 Multi Display MST Dock with 100W Power Delivery 901531
In the Box
VT2600 Docking Station | 150W DC 20V/7.5A Power Adapter | USB-C to USB-C Cable (1m) | User Manual
Key Features
Supports 3 Displays (HDMI or DP) via DP Alt Mode
USB-C connection to host system

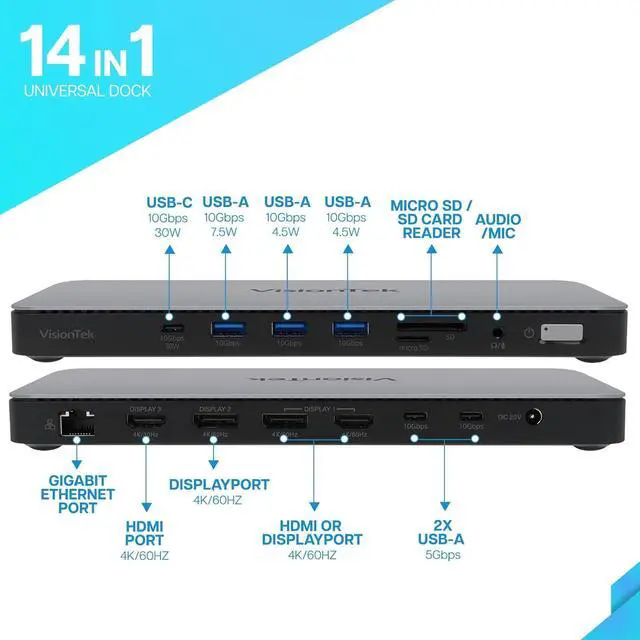

2x DP, 2x HDMI, 3x USB-A 10Gbps, 3x USB-C 10Gbps, Audio, Ethernet, SD Reader, Kensington Lock

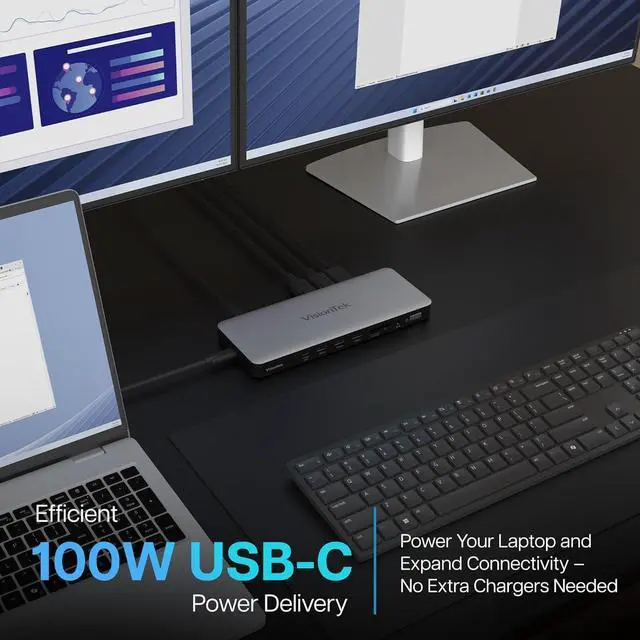

100W of Power Delivery via USB-C from included power supply
30W Mobile Device Fast Charging
Universal Compatibility with PC, Mac, Chromebook
Output video utilizing the power of your system and USB-C DP Alt Mode. Connect up to 2 x 4K + 1 x 1080P FHD displays via HDMI or DisplayPort.
Works in PC and Mac environments
Windows 11, 10, 8.1, 7
macOS 10.x and later
ChromeOS
Compatible with USB-C host systems with DP Alt Mode, USB4, Thunderbolt 3 /4. Extend up to 3 monitors, transfer files, fast charge a mobile device and power your laptop all from a single port.
Unleash the Power of USB-C
The VT2600 supports up to three external displays, allows for file and data transfer up to 10Gbps speeds, 100W USB-C Power Delivery and 30W mobile device fast charging. Expand the capabilities of your system and unleash the power of USB-C.
Enhance Productivity and Connectivity
This docking station is the perfect hub for your connectivity needs, offering a seamless integration with your devices and an exceptional multi-display experience. Whether you're a creative user with a multitude of screens or a multitasking professional who needs to keep tabs on multiple projects at once, the VT2600 is designed to deliver.
USB-C DP Alt Mode
DP Alt Mode is an optional capability of USB-C that enable it to transfer video signals over dedicated lanes. Previously, connecting to external monitors required the use of HDMI or DisplayPort adapters. Utilizing the video capabilities of your host device DP Alt mode allows for extension of additional displays using the USB-C connection to the docking station without any adapters.

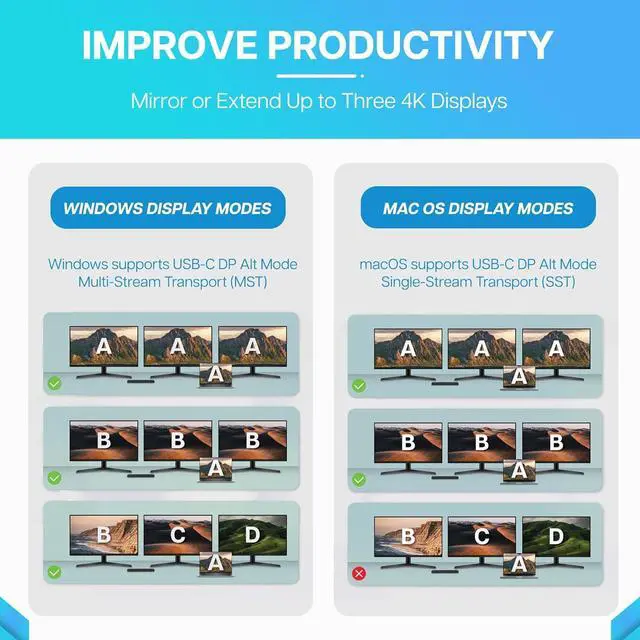

For output to more than one display, your host system must support DP MST (Multi Stream Transmission) can handle transmission to multiple downstream displays through a single cable allowing you to stream independent video displays from a single desktop or laptop host.
SST (Single Stream Transport) can only handle transmission to one downstream display through a single downstream port. However, a second screen can mirror other monitors. macOS only supports DisplayPort SST mode.
Operating System: Windows 11, 10, 8.1, 7 | macOS 10.10 and later | ChromeOS
Hardware Requirements: USB-C Port with DP Alt Mode | USB-C Power Delivery Support
Note: Host System must support DP 1.4 MST for 2 displays @ 4K 30Hz, Host System must support DP 1.4 MST with DSC for 3 external displays - 1x 1080p, 2x 4K 30Hz
Supported Resolutions
Compatibility with Windows, macOS, ChromeOS
Single Display Support:
DisplayPort 1, DisplayPort 2, HDMII 1: Resolutions up to 3840 x 2160 @ 60Hz (4K)
HDMI 2: Resolutions up to 3840 x 2160 @ 30Hz (4K)
Dual Display Support:
DisplayPort 1, DisplayPort 2, HDMII 1: Resolutions up to 3840 x 2160 @ 30Hz (4K)
HDMI 2: Resolutions up to 3840 x 2160 @ 30Hz (4K)
Triple Display Support
DisplayPort 1, DisplayPort 2, HDMII 1: Resolutions up to 3840 x 2160 @ 30Hz (4K)
HDMI 2: Resolutions up to 1920 x 1080 @ 60Hz (FHD)
Note: Performance and maximum resolutions are dependent on host systems onboard video capabilities, macOS supports one external display extended up to 3840 x 2160 @ 60Hz and two external displays mirrored.
