5.25 Inch PC Media Dashboard Front Panel Audio With SATA eSATA 2 x USB 3.0 And 6 x USB 2.0 Hub SD TF MMC M2 CF MS Card Reader

5.25 Inch PC Media Dashboard Front Panel Audio With SATA eSATA 2 x USB 3.0 And 6 x USB 2.0 Hub SD TF MMC M2 CF MS Card Reader

Features:

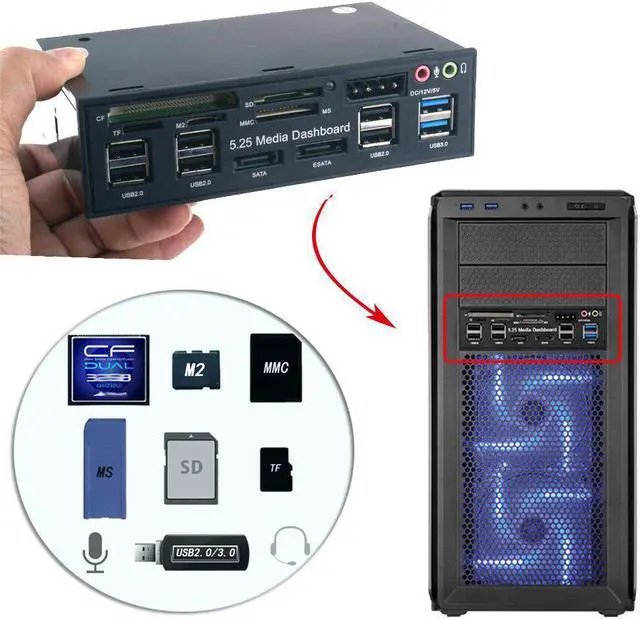

This front panel media dashboard is made of ABS material and etched on surface. It is stable with high speed and safety. It is durable as well as beautiful. It is anti-rust and hard to be scrapped

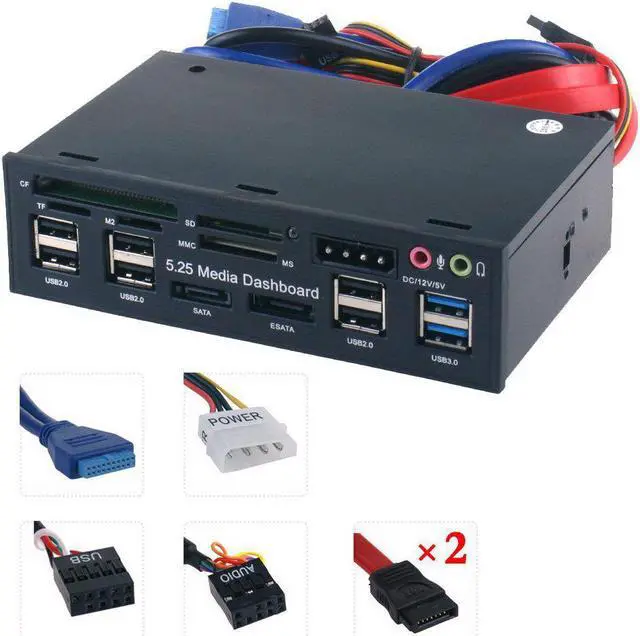

20Pin Interface. It has build-in USB 3.0 Port, USB 2.0 port, e-SATA, SATA port, 4 pin IDE Power port or DC 12V, Audio, Multi Card Reader, which can command your needs; Power 12V/5V output. Note: 4pin power connector is to pay attention to the direction of connection, otherwise it will cause a short circuit, the product map has the correct method

2 USB 3.0 Hub(Host), transfer speed up to 5.0Gbps; 6 USB 2.0 Hub, transfer speed up to 480Mbps; e-SATA port, the transfer speed up to 3.0Gbps; SATA Port, the transfer speed up to 1.5Gbps

All-in-one Card Reader: Support SD / MMC / CF / MS / TF / M2, At the same time Card reader can only read one memory card.

Function:

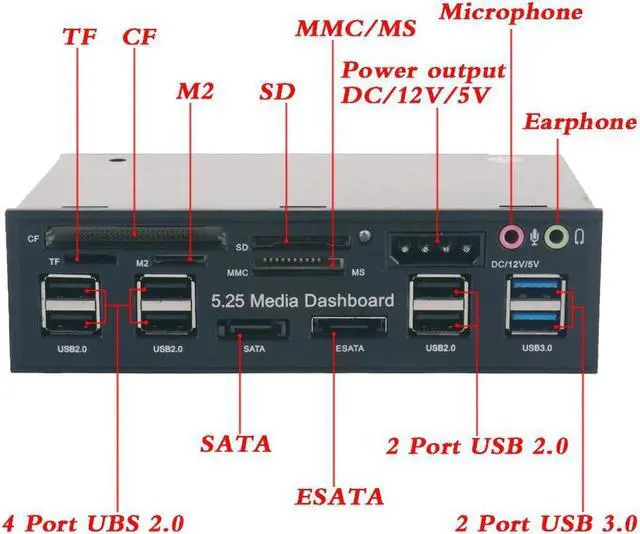

2 USB 3.0 Hub(Host), transfer speed up to 5.0Gbps,downward is compatible with USB2.0 and USB1.1.

USB 3.0 20Pin Interface

6 USB 2.0 Hub, transfer speed up to 480Mbps

e-SATA port, the transfer speed up to 3.0Gbps

SATA Port, the transfer speed up to 1.5Gbps

Audio ports: front speakers and microphone. It solves the inconvenience of the plug behind your chassis.

All-in-one Card Reader: Support SD / MMC / CF / MS / TF / M2, At the same time Card reader can only read one memory card.

Power 12V/5V output

Supply Port4Pin Power Interface

Operating System: Window98/Me/2000/XP/Vista/win7/ win8, Mac9.X/10.X/Linux11. Net Weight:297g

Gross Weight:413g
