Vszerda 8 Port USB Hub USB3 5.25 USB 3.0 Front Panel Splitters USB 3.0 Hub for USB3.0 HUB Splitter Hubs for Computer

8 Port USB Hub USB3 5.25 USB 3.0 Front Panel Splitters USB 3.0 Hub for USB 3.0 HUB Splitter Hubs for Computer

Product information

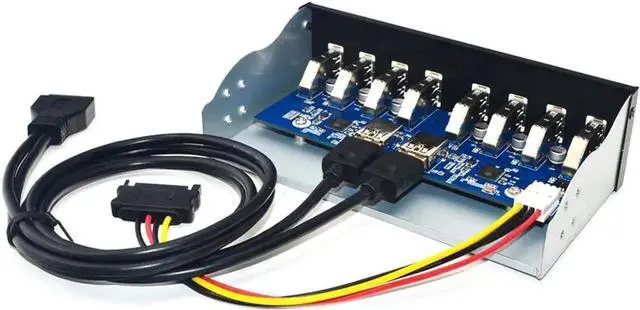

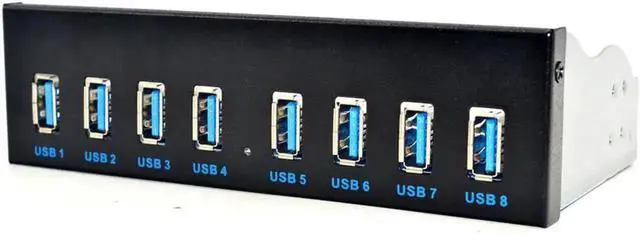

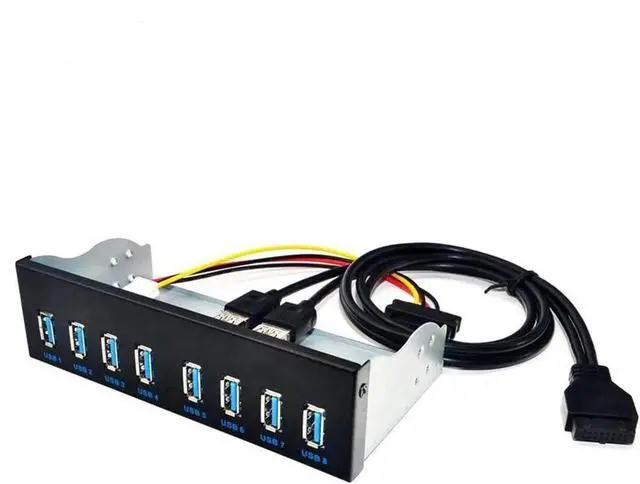

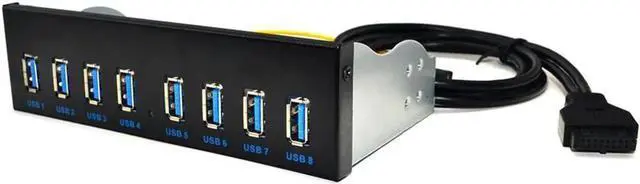

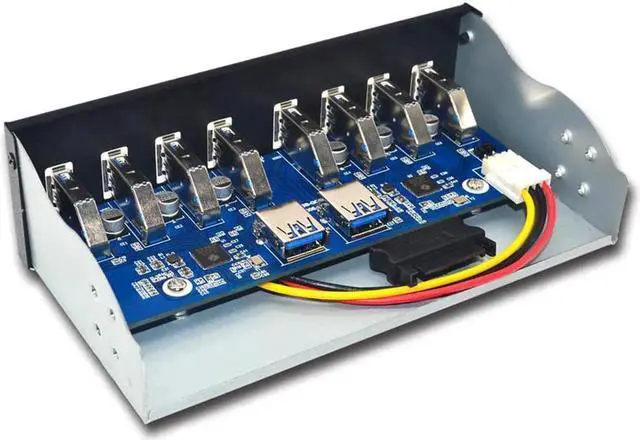

Product Name: USB 3.0 8-port HUB optical drive panel

Product model: PAN8USB-G01

Wire length: 80CM

Product packaging: cowhide box

Product interface: USB 3.0 19PIN

Support system: Compatible with all WINDOWS systems, LINUX MAC

Product Usage:

With the popularity of USB 3.0, more and more motherboards now have a USB 3.0 19pin socket, and the chassis does not have a front USB 3.0 port. You can use this panel as long as you pass a 19PIN socket through the panel. Plugged into the motherboard, leading out 8 front USB 3.0 interfaces, installed in the idle optical drive location. USB 3.0 adds SATA to enhance power, and can provide enough current for 8 high-speed USB interfaces, which solves the problem of insufficient power supply in front of the chassis.

Hardware requirements:

One with two USB 3.0 20Pin interface boards or riser cards, with a 5.25 -inch optical drive case.

Note: This product can transfer 8 USB 3.0 as long as a 19PIN USB 3.0 port.

Packaging accessories:

Optical drive panel*1

19PIN-DUAL AM line

Fixing screw*5
