DIXSG 10Gbps PCI-E to USB 3.2/3.1 Gen 2 (3X USB-C - 2X USB-A) Expansion Card,PCI Express USB Add in Card, Internal USB Hub Converter for Desktop PC Host Card Support Windows 10/8/7/XP and MAC OS

PCI Express Expansion Card

Introduction:

The PCIe USB 3.2/USB 3.1 Gen 2 card can be connected to the motherboard through a PCI Express (X4) slot, and easily update your old desktop computer to 3 Type C ports and 2 USB 3.2 gen 2 downstream ports. Effectively solve the problem of insufficient Internal USB port on the host.Furthermore ,There will be no loss of connectivity issues like an external usb hub.

Product Advantages:

1. The 5 external USB ports of the PCIE card adopt a stacked layout, which can save the space of the host.

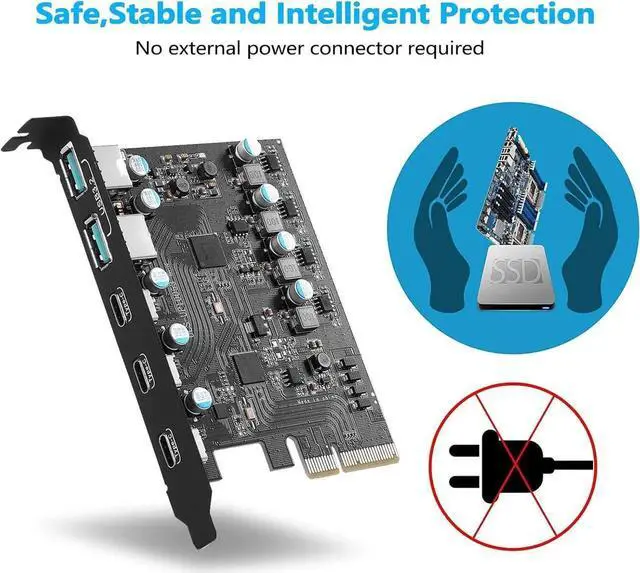

2. Built-in self-powered technology, it is easy to install on the computer, without additional power supply.

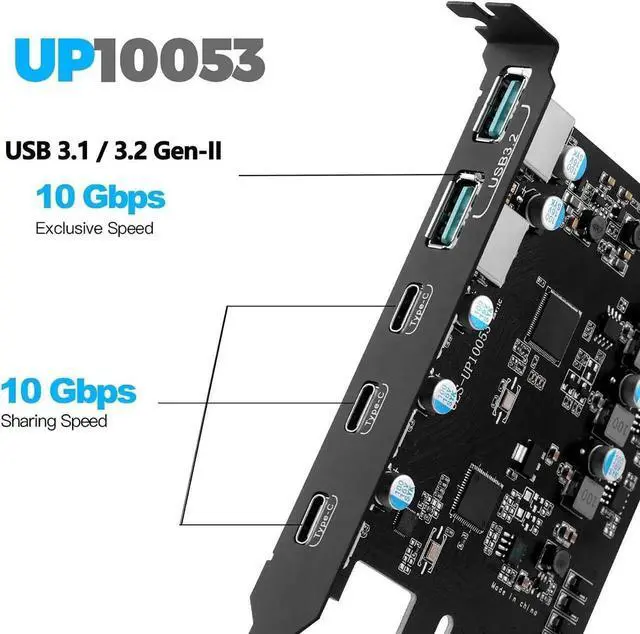

3. The USB 3.2 gen 2 port has a speed of 10Gbps bandwidth(1x USB Type-C port and 2x USB Type-A ports share 10Gbps, rest 2x ports share another 10Gbps ), realizing fast transmission for your USB device; in addition, the PCIe USB card has 3 differently designed USB C ports, supporting type-C devices such as smartphones and tablets for file transfer.

Note: ALT DP, HDMI, VGA display video monitor conversion function is not supported.

Installing and using this PCIE card may require some additional tuition, please download (10053-Use Manual) from the product page (Product Guides and Documentation) for proper installation procedures.

Before making a choice, please read the (NOTE) and (Warm Note) at the end of the page.

Warm Note:

1. 1. Computer host internal need Available PCI Express x4, x8 or x16 slot.
2. 2. System requirements are Windows XP/7/8/10 operating system and Mac OS 10.8.2 above, 4GB DDR RAM or above.(Doesn't support MSI/Dell PC series Win 11 system.)
3. 3. Windows 7 / XP system needs to install the driver from the attached CD, or download the driver according to the content of the user manual.
4. 4. Select the interface type that matches the PCIE card, e.g. USB 3.1-A, USB-C. Cord specifications require USB version 3.1 Gen 2 to avoid performance impacts due to speed mismatch. The PCIE card USB A port: 5V-0.9A, USB-C port: 5V-3A, make sure to use 5V-0.9A and 5V-3A cord, and correspond to the corresponding interfaces to avoid the wrong cord from being plugged into the wrong port, resulting in insufficient power supply, so that the device can not work properly.

1. 5. USB terminology: USB 3.2 Gen 2x1 was originally called USB 3.1 Gen 2. Since many motherboard factory have not updated their hardware technology in time, most computer programs will display USB 3.1, but it does not affect the speed.

NOTE :

1. 1.Not compatible with the old version of PCI Express X1 slot.
2. 2. The USB expansion card only supports data transmission, not video signal transmission (DP, HDMI monitor) or Such as USB c Hub hdmi/VGA function conversion.
3. 3.Do not install this PCIE card when the computer is turned on.
4. 4.If the card doesn't work, check whether the PCI-E socket on the motherboard is faulty.
5. 5. Also, for USB 3.2 cards to get USB3.2 SuperSpeed +performance, be sure to use PCI-E 3.0 or higher slots for card installation.
6. 6.The card is For standard-size computers only and doesn't apply to low-profile/mini/half-height PC (didn't come with a half-height bracket).
7. 7.The USB device has a limitation on the throughput/performance of data transfer from the expansion card. In addition, do not plug high power cord/USB to HDMI cord into this USB 3.2 card to avoid unnecessary compatibility issues.

Package Contents:

1. 1 * USB 3.2 PCIE Card
2. 2 * Screw
3. 1 * CD Drive

5-Port

PCIE USB Card: With 3x USB C ports and 2x USB-A ports extended via PCI Express X4 slots, you can connect keyboards, mouse, external hard drives, CD/DVD drives, USB printers, scanners, game controllers, USB VR, digital cameras, and more. (USB-C port contains only data signal, not video signal. )

Super Speed Transmission Rate: Support up to 10Gbps transfer rate, the overall rate is half faster than USB 3.0 version (5Gbps) and can transfer copied high-definition video, music, photos, and data files, helping you achieve higher s efficiency. (Note: The actual transfer speed may be limited by the connected device)

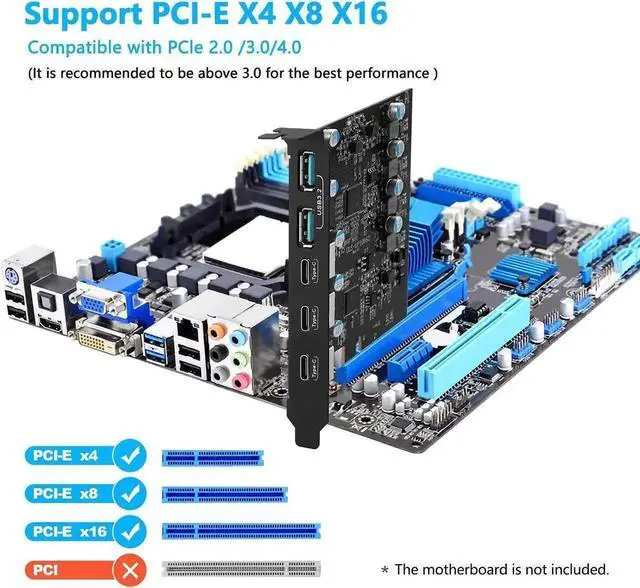

Wide Compatibility: Support Windows 10/8/7/XP/Server, Linux and Mac OS 10.8. 2 (and higher). USB card are PCIe 3.0 and PCIe 2.0 compliant motherboards for PCI Express x4, x8, or x16 slots.

Note: Windows 7/XP/Vista/Server, need to install the driver, Windows 10 and Mac OS 10.8. 2 or above most don't need the driver.
