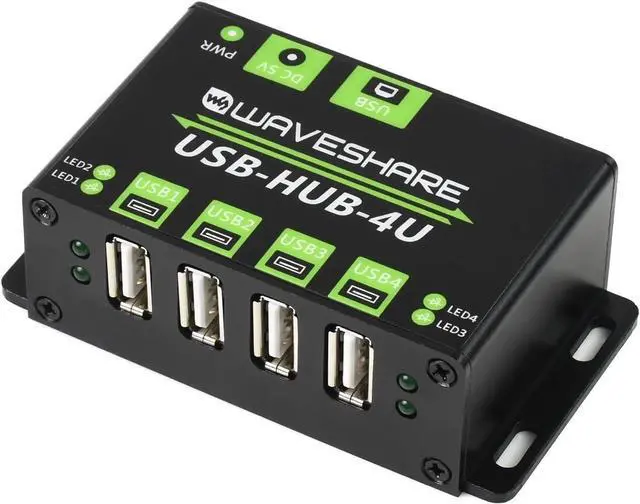

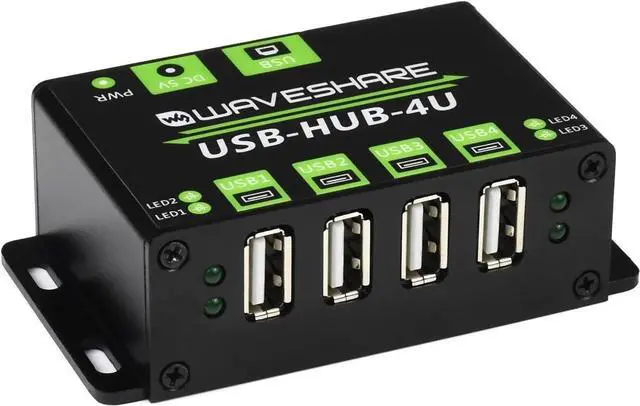

Industrial Grade USB HUB, Extending 4X USB 2.0 Ports Adopt MTT Technology, Allows Stable and Smooth 4X USB Connections(with US Power Plug)

DESCRIPTION
Industrial Grade USB HUB, Extending 4x USB 2.0 Ports
Industrial 4U USB HUB
Suitable For Industrial/Office Environments With Higher Level Device Requirements
Features At A Glance
4x extended USB ports, compatible with USB 2.0 / 1.1
Industrial grade HUB chip, adopting STT technology, allows stable and smooth 4x concurrent USB connections
ESD protection for each USB port, preventing electric surge damage and data loss
Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.
LED indicators for monitoring operating statuses of power supply and USB ports
Industrial grade metal case, rugged & with mounting holes for easy installation
Specifications
STANDARD
USB 20
DATA RATE
up to 480Mbps
USB HUB INPUT
operating voltage 5V
connector USBB
USB OUTPUT
operating voltage: 5V@Imax:1.2A
connector: USB-A
EXTERNAL POWER
power supply voltage: DC 5V
connector: DC jack
OPERATING ENVIRONMENT
-40 ~ 85
OS SUPPORT
OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP
up to 1.2A Max output current for each USB ports, when there's enough power input
comes with 5V 2A power supply, it is recommended to use another 5V 4A or above power supply for higher USB loads
Industrial Grade HUB Chip
STT Technology, 4x Concurrent USB Connections, Stable And Smooth
Multiple Protections, More Safe
Over-Voltage, Over-Current, Short Circuit, Over-Temperature, Reverse Current, Under Voltage Lock-Out, 8KV ESD Protection, Filtering Protection...
Multiple OS Support, & Play
Application Environments
Suitable For IndustrialOffice Environments With Higher Level Device Requirements

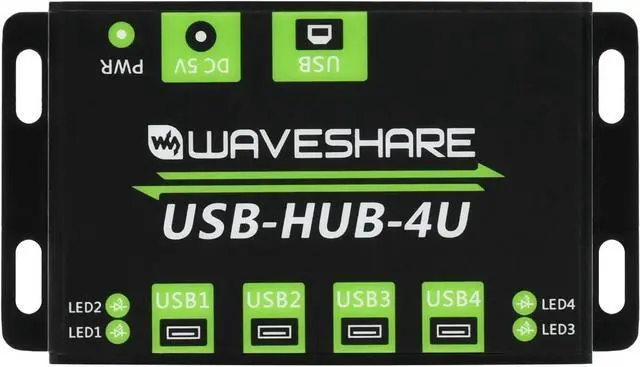

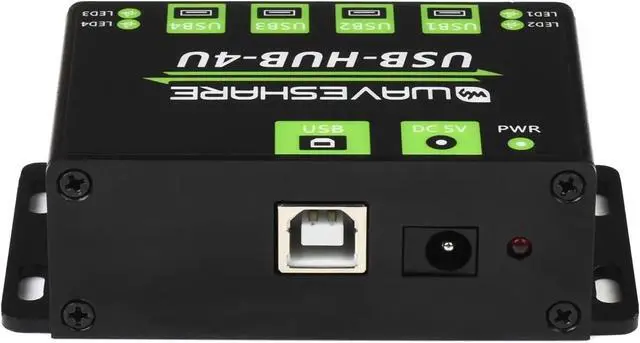

Interface Introduction
Outline Dimensions
Resources Services

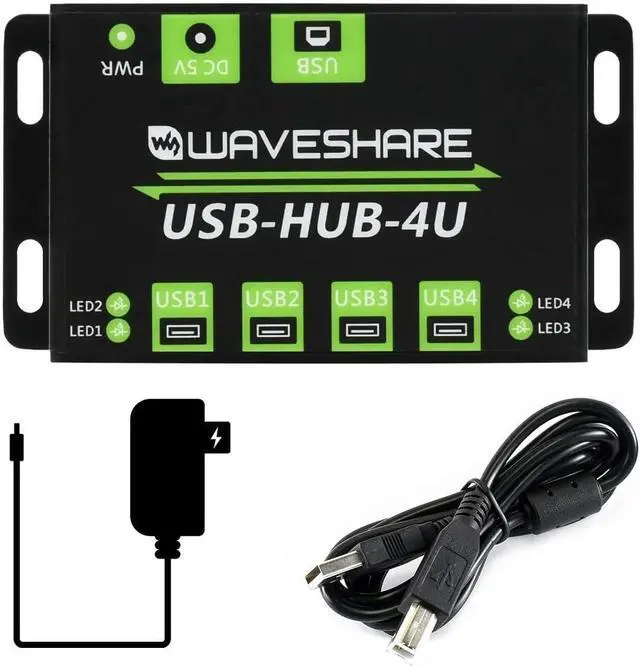

PACKAGE CONTENT
Weight:0.244 kg
USB-HUB-4U x1
USB cable ~1.2m x1
OPTIONS 5V 2A power adapter x1
1
2
3
==========
Hign-concerned Chemical : None
Model Number : USB-HUB-4U
Demo Board Type : ARM
STANDARD : USB 2.0
DATA RATE : up to 480Mbps
USB HUB INPUT : operating voltage: 5V; connector: USB-B
OPERATING ENVIRONMENT : -40 ~ 85
OS SUPPORT : OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP
Suitable For : Industrial/Office Environments With Higher Level Device Requirements
