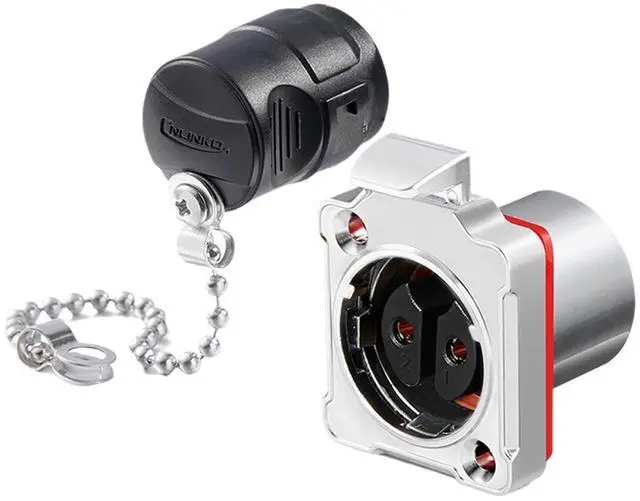

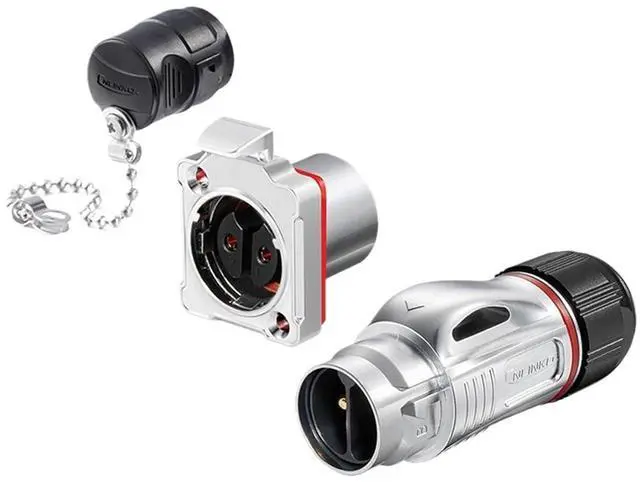

1Pcs Waterproof IP68 M24 Circular Connector 2 3 4 10 12 19 24 Pin BD24 Outdoor Panel Connector for Power Signal Equipments(Socket A,12P)

Electrical Connector
Waterproof IP68 M24 Circular Connector 2 3 4 10 12 19 24 Pin BD24 Outdoor Panel Connector for Power Signal Equipments
Features:
Versatile Pin Options
Available in 2, 3, 4, 10, 12, 19, and 24 pin configurations, this connector offers flexibility for various power signal equipment needs.
Waterproof IP68 Rating
The Waterproof IP68 M24 Circular Connector ensures complete protection against dust and water, making it ideal for outdoor use.

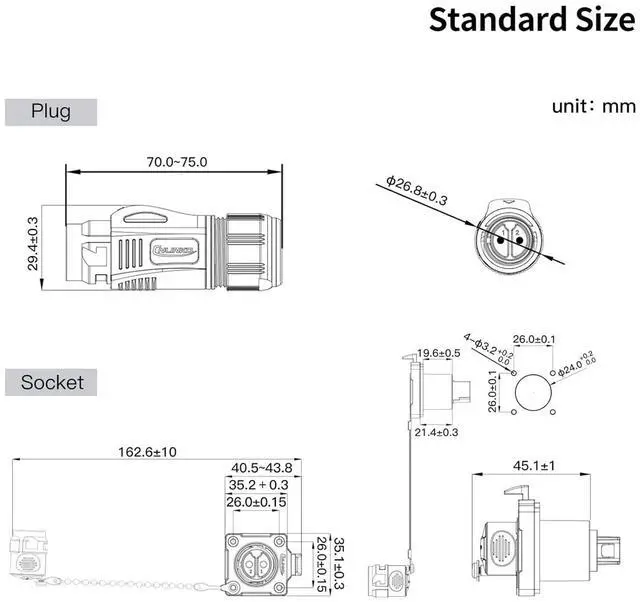

Robust M24 Design
The robust M24 design provides a secure and reliable connection, enhancing the durability of your equipment.

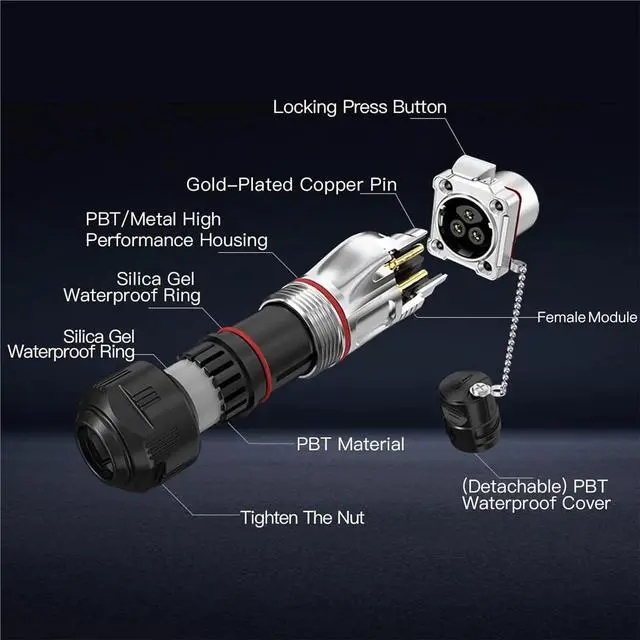

Material
Constructed with materials, this connector guarantees superior conductivity and longevity.
Outdoor Panel Connector
Specifically designed as an outdoor panel connector, it withstands harsh environmental conditions, ensuring long-lasting performance.
==========

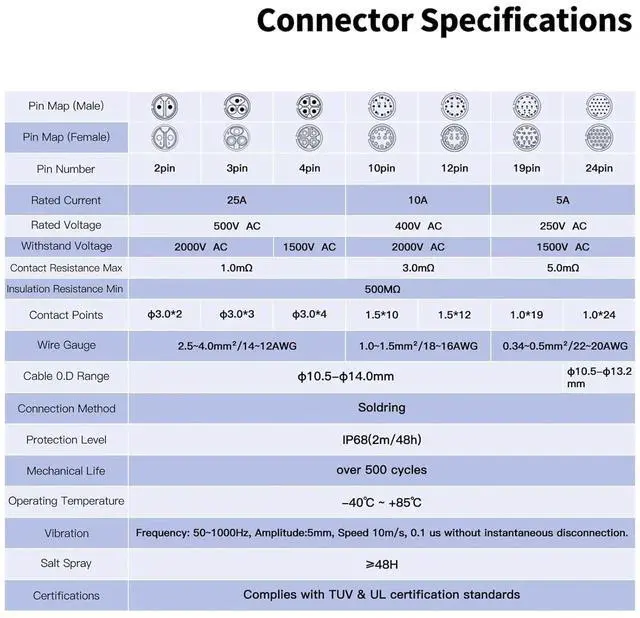

Hign-concerned Chemical : None
Model Number : BD-24
Voltage :
Origin : Mainland
Certification : ,UL,weee
Contact resistance(Max.) : 1~5m omega
Color : Silver
Approved : TUV UL
Cable specification(2~4pin) : 2.5~4.0mm²/14~12AWG
Operating voltage (AC.V.rms) : 250V~500V
Protection level : IP68
Current rating : 5A~25A
Insulation resistance(Min.) : 500m omega
Working temperature : -40 degrees Celsius~85 degrees Celsius
Withstanding voltage (AC.V)1 minute : 1500V~2000V

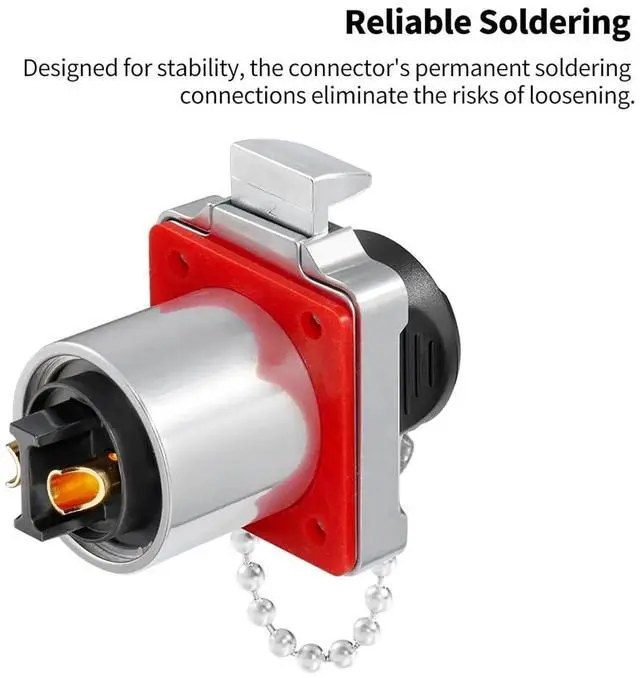

Assembly style : Soldering
Diameter range : 10.5~14.0mm
Type : Circular Connector
Cable specification(10~12pin) : 1.0~1.5mm²/18~16AWG
Cable specification(19~24pin) : 0.34~0.5mm²/22~20AWG
