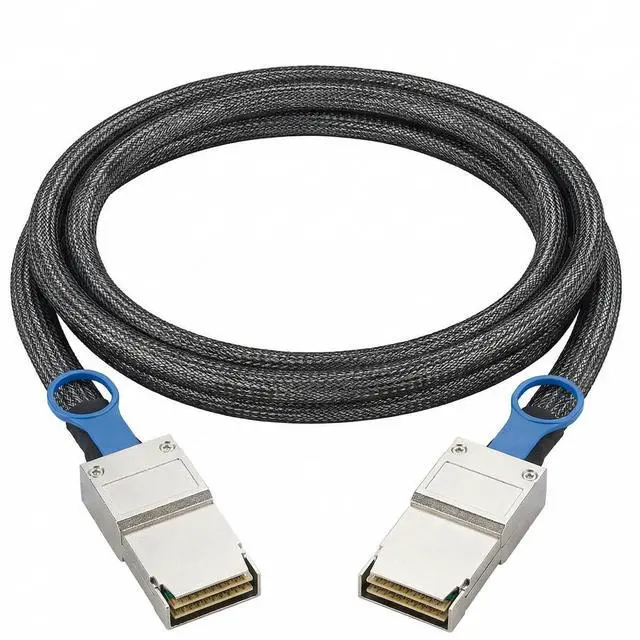

Main image of Active Optical/Electrical Cable CDFP x16 to CDFP x16 for PCIe 5.0, 1.6ft Data Center AI GPU Server Cable, Ultra Low Latency High Bandwidth,Computer Component (78.7, Inches)

Alt view image 2 of 7 - Active Optical/Electrical Cable CDFP x16 to CDFP x16 for PCIe 5.0, 1.6ft Data Center AI GPU Server Cable, Ultra Low Latency High Bandwidth,Computer Component (78.7, Inches)

Alt view image 3 of 7 - Active Optical/Electrical Cable CDFP x16 to CDFP x16 for PCIe 5.0, 1.6ft Data Center AI GPU Server Cable, Ultra Low Latency High Bandwidth,Computer Component (78.7, Inches)

Alt view image 4 of 7 - Active Optical/Electrical Cable CDFP x16 to CDFP x16 for PCIe 5.0, 1.6ft Data Center AI GPU Server Cable, Ultra Low Latency High Bandwidth,Computer Component (78.7, Inches)

Alt view image 5 of 7 - Active Optical/Electrical Cable CDFP x16 to CDFP x16 for PCIe 5.0, 1.6ft Data Center AI GPU Server Cable, Ultra Low Latency High Bandwidth,Computer Component (78.7, Inches)

Alt view image 6 of 7 - Active Optical/Electrical Cable CDFP x16 to CDFP x16 for PCIe 5.0, 1.6ft Data Center AI GPU Server Cable, Ultra Low Latency High Bandwidth,Computer Component (78.7, Inches)

Alt view image 7 of 7 - Active Optical/Electrical Cable CDFP x16 to CDFP x16 for PCIe 5.0, 1.6ft Data Center AI GPU Server Cable, Ultra Low Latency High Bandwidth,Computer Component (78.7, Inches)

Shop All DIVI Products | Visit DHINGDOM TRADING CO., LIMITED Store

Active Optical/Electrical Cable CDFP x16 to CDFP x16 for PCIe 5.0, 1.6ft Data Center AI GPU Server Cable, Ultra Low Latency High Bandwidth,Computer Component (78.7, Inches)

Features and BenefitsCompliant with SFF-TA-1032 MSA Standard,Data Rate: Support PCIe 5.0 32GT Per Channel,Low Power Consumption,Exceeds 32GT/channel electrical performance requirement,EEPROM in cable assembly,Assure 360° EMI shielding and easy latch release,Custom Colors For Pull Tab
Market and ApplicationHigh-Performance Computing (HPC),Network Interface Cards (NIC's),Data Center and Enterprise Storage Systems,Telecommunication Equipment,Support PCIe Gen 5.0 standard
Mechanical PerformanceCDFP x16 Module,Module Insertion: 40N(w/o EMI Spring) ,55N(w/EMI Spring) Maximum,Module Extraction: 30N Maximum,Latch Retention: 100N Minimum,Rated Durability Cycles: 100 Cycles
Electrical PerformanceCDFP x16 Module,Supply Voltage 3.3 VDC +/- 5%,Supply Current:0.03A Max at 3.135V,Power Consumption 0.125 Watt Max,Voltage: 30V DC Contact MAX (Signal Application only),1.0 Amps Per Power Contact MAX,1.0 Amps Per Signals Contact MAX
Signal IntegrityFollwiing CopprLink External Cable Specifi

Overview

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Product Description: CDFP x16 to CDFP x16 Passive Copper Cable
Series: CDFP for PCIe
Data Rate: PCIe 5.0 32.0GTs/ Lane
Bulk Cable: Twin-Ax HSC Series
Cable Construction: Loose wire with Metial and PET Braid
Signal Wire Size: 28 and 30 AWG
Cable Length : 0.5-2.0 M
LSZH Products Available
Temperature Range: 0-70
