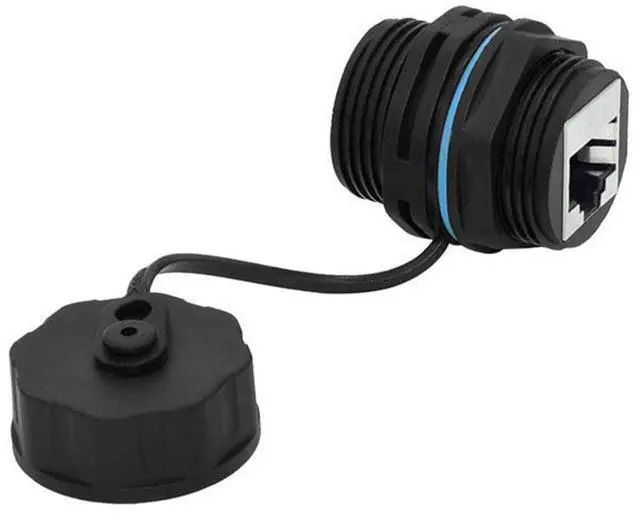

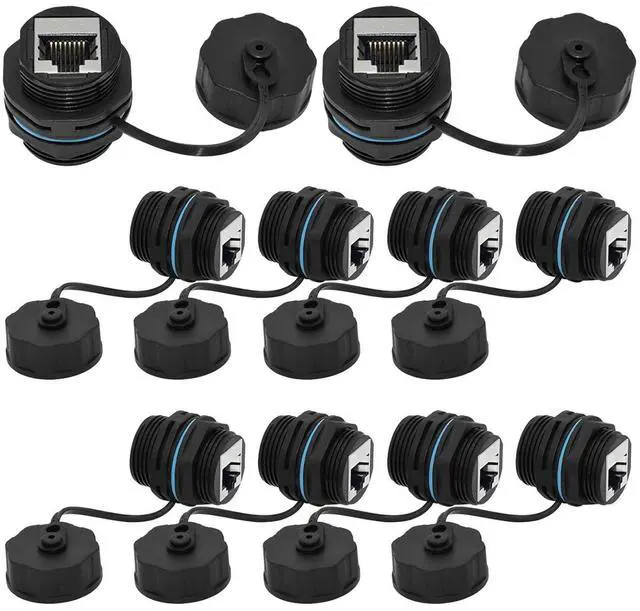

10PCS Panel Mounting Shielded CAT6 RJ45 Waterproof Connector Cat5/5e/6 8P8C Ethernet LAN Cable Coupler Double Head Adapter with Waterproof/Dust Cap
- Shielded RJ45 female to female field installable coupler. Provides feed-through Cat5/5e/6 ethernet connectivity for data and PoE in industrial environments.
- NO ATTENUATION: The socket contacts are nickel-plated phosphor bronze alloy plugs, and the socket does not need to break or interrupt any connection, so there is no signal attenuation.

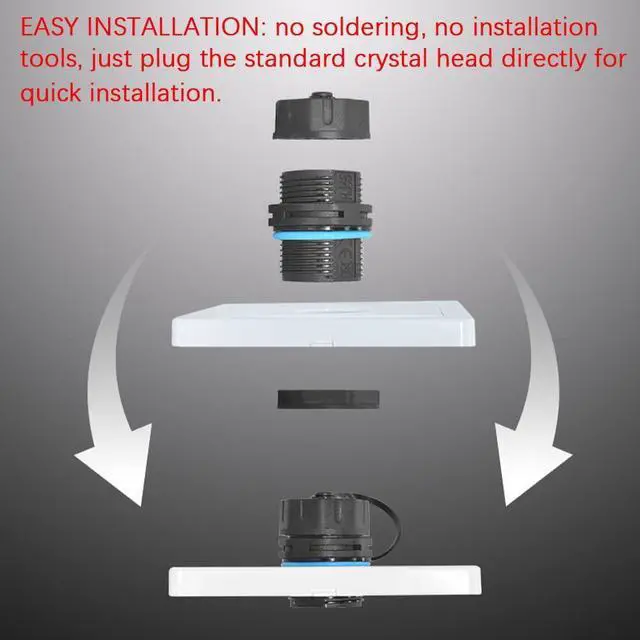

- EASY INSTALLATION: It is miniaturization, and save installation space, RJ45 female to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.

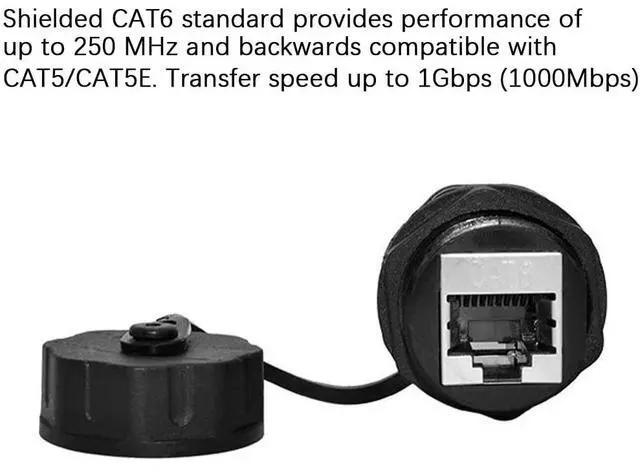

- CAT6 standard provides performance of up to 250 MHz and backwards compatible with CAT5/CAT5E. Transfer speed up to 1Gbps (1000Mbps).
- Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Shielded Industrial Panel Mount is a Waterproof Ethernet LAN Cable Connector. Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference.
Compatible with Cat6/Cat5E/Cat5 ethernet cable, Transmission speed up to 1000 Mbps.
It is injection molded from PA66 nylon plus fiber (UL94V-0), flame retardant, UV resistant, anti-aging, and has a longer service life.

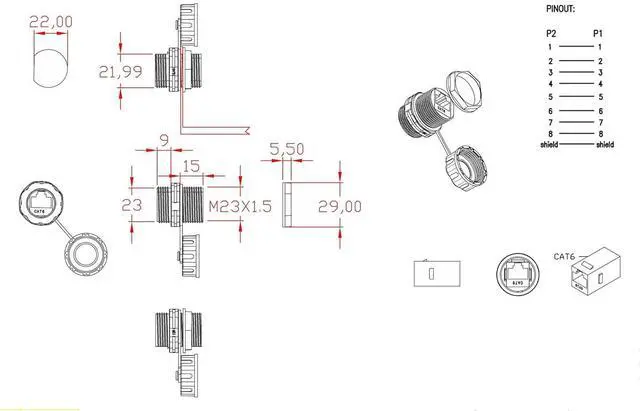

Pins8P8CConnection TypeRJ45Transmission CategoryCAT6Transfer Sspeed10BASE-T100 BASE-T1000 BASE-T10000BASE-TThreadM23Rated Voltage/Current125VAC, 75VDC / 1.5AInsulation Resistancegreater than 500MWithstand Voltage(AC.V)1minAC1000V 50HZ or 60HZ for 1 minuteDurabilitymore than 500 mating&unmating cyclesShell MaterialPA66 nylon plus fiber (UL94V-0)Socket Contact Pin Material0.5mm diameter phosphor copper wireContact Pin Plating6FU goldWaterproof Rubber RingsiliconeWorking Temperature-40~120 Relative Humidityless than 90%Flame Retardant RatingUL94V-0 Disassemble the connector and prepare the network cable
Stable Connection High Speed Transmission Specifications Installation Method STEP1 APPLICATIONS
Compatible with Cat6/Cat5E/Cat5 ethernet cable, Transmission speed up to 1000 Mbps.
It is injection molded from PA66 nylon plus fiber (UL94V-0), flame retardant, UV resistant, anti-aging, and has a longer service life.
Pins8P8CConnection TypeRJ45Transmission CategoryCAT6Transfer Sspeed10BASE-T100 BASE-T1000 BASE-T10000BASE-TThreadM23Rated Voltage/Current125VAC, 75VDC / 1.5AInsulation Resistancegreater than 500MWithstand Voltage(AC.V)1minAC1000V 50HZ or 60HZ for 1 minuteDurabilitymore than 500 mating&unmating cyclesShell MaterialPA66 nylon plus fiber (UL94V-0)Socket Contact Pin Material0.5mm diameter phosphor copper wireContact Pin Plating6FU goldWaterproof Rubber RingsiliconeWorking Temperature-40~120 Relative Humidityless than 90%Flame Retardant RatingUL94V-0 Disassemble the connector and prepare the network cable
Stable Connection High Speed Transmission Specifications Installation Method STEP1 APPLICATIONS
