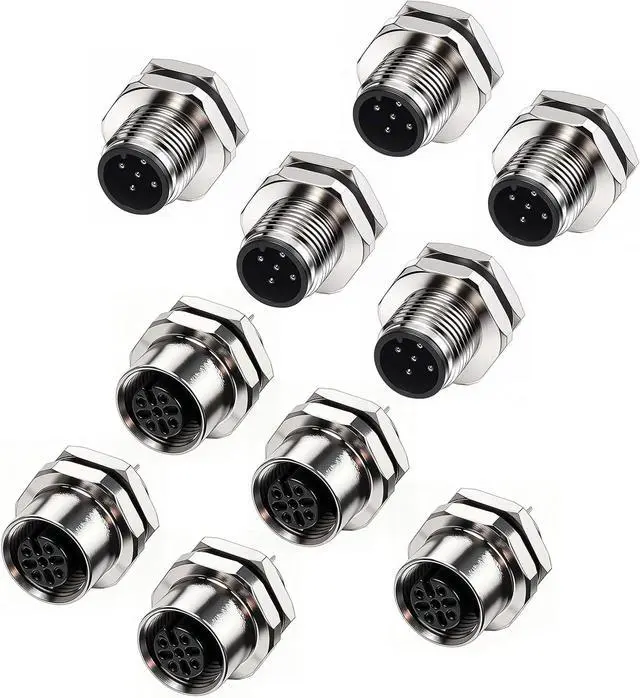

Eonvic M12 5 Pin Male+Female A Code Aviation Panel Back Mount Socket 12mm Industrial Circular Connector IP67 Waterproof for Sensors PLCs and Automation Equipment 5sets

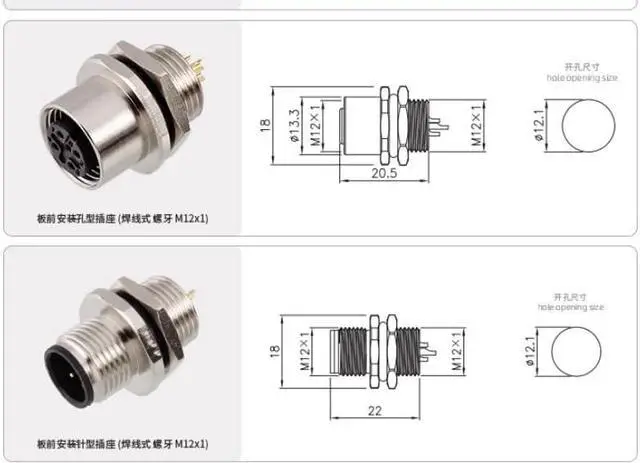

- M12 5-pin A-coded connector with 12mm hole open size flange Socket, for industrial applications. Designed for transmitting low-power signals such as sensor signals and analog signals.
- Rated current: 4A; Rated voltage: AC/DC 250 V; Connection Cable : Soldering; Hole Opening Size: Approx. 12mm.Conductor specification: AWG22, 0.34 mm².Case material: Nickel-plated brass; Connector Pins Material: Pure copper gold plated; Gasket material: Epoxy resin; Core material: PA + GF/TPU; Mold Material: TPU/PVC; Contact impedance: 5m; Applicable temperature: -25°C ~ +80°C.
- Complies with IEC 61076-2-101 standards, IP67 waterproof and dustproof rating. Adapted for humid and dusty industrial environments to prevent connection failures caused by environmental factors.
- The metal housing provides superior electromagnetic shielding, reducing external interference to safeguard internal signal transmission and extend connector lifespan.
- Widely used in industrial automation systems, such as sensor connec
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
M12 5-pin A-coded connector with 12mm hole open size flange Socket, for industrial applications. Designed for transmitting low-power signals such as sensor signals and analog signals.
Rated current: 4A; Rated voltage: AC/DC 250 V; Connection Cable : Soldering; Hole Opening Size: Approx. 12mm.Conductor specification: AWG22, 0.34 mm².Case material: Nickel-plated brass; Connector Pins Material: Pure copper gold plated; Gasket material: Epoxy resin; Core material: PA + GF/TPU; Mold Material: TPU/PVC; Contact impedance: 5m; Applicable temperature: -25°C ~ +80°C.
Complies with IEC 61076-2-101 standards, IP67 waterproof and dustproof rating. Adapted for humid and dusty industrial environments to prevent connection failures caused by environmental factors.
The metal housing provides superior electromagnetic shielding, reducing external interference to safeguard internal signal transmission and extend connector lifespan.
Widely used in industrial automation systems, such as sensor connections on factory production lines and signal transmission in automated equipment, it is also suitable for certain outdoor electronic devices.
Rated current: 4A; Rated voltage: AC/DC 250 V; Connection Cable : Soldering; Hole Opening Size: Approx. 12mm.Conductor specification: AWG22, 0.34 mm².Case material: Nickel-plated brass; Connector Pins Material: Pure copper gold plated; Gasket material: Epoxy resin; Core material: PA + GF/TPU; Mold Material: TPU/PVC; Contact impedance: 5m; Applicable temperature: -25°C ~ +80°C.
Complies with IEC 61076-2-101 standards, IP67 waterproof and dustproof rating. Adapted for humid and dusty industrial environments to prevent connection failures caused by environmental factors.
The metal housing provides superior electromagnetic shielding, reducing external interference to safeguard internal signal transmission and extend connector lifespan.
Widely used in industrial automation systems, such as sensor connections on factory production lines and signal transmission in automated equipment, it is also suitable for certain outdoor electronic devices.
