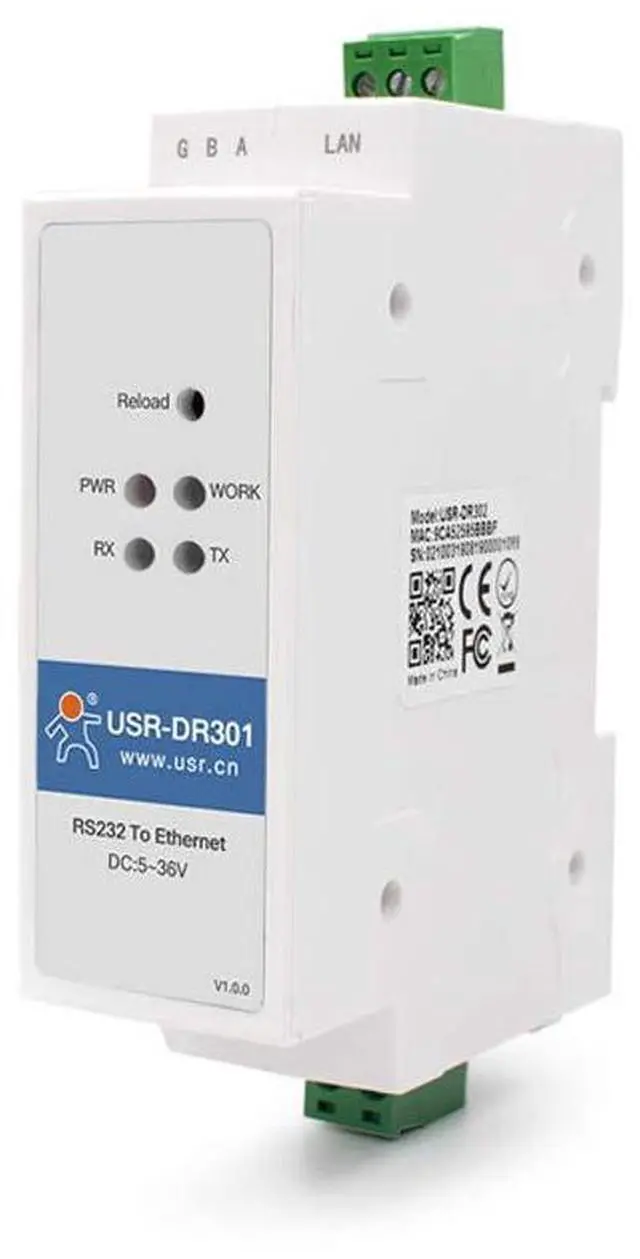

DR301 DIN-Rail Serial Server RS232 Serial to Ethernet Converter Module
- Work Voltage: DC 5.0 - 36.0 V
- Work Current: 130mA@5V
- Ethernet Port: RJ45,10/100Mbps
- Serial Port Baud rate: 600-460.8K(bps)
- Serial Port: RS232*1 (Terminal Type)
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Work Voltage: DC 5.0 - 36.0 V
Work Current: 130mA@5V
Ethernet Port: RJ45,10/100Mbps
Serial Port Baud rate: 600-460.8K(bps)
Serial Port: RS485*1 (Terminal Type)
Network Protocol: TCP/IP, UDP, ARP,ICMP,IPV4
IP Type: Static IP,DHCP
DNS: Support
Configuration: Software, Web-page, AT command Work Mode: TCP Server/TCP Client/ UDP Server/UDP Client Modbus RTU to TCP
Average Transmission Delay: <10ms
Packaging Mechanism: 4 bytes package time 1024 bytes package length
Grade: IP30, 1.5KV

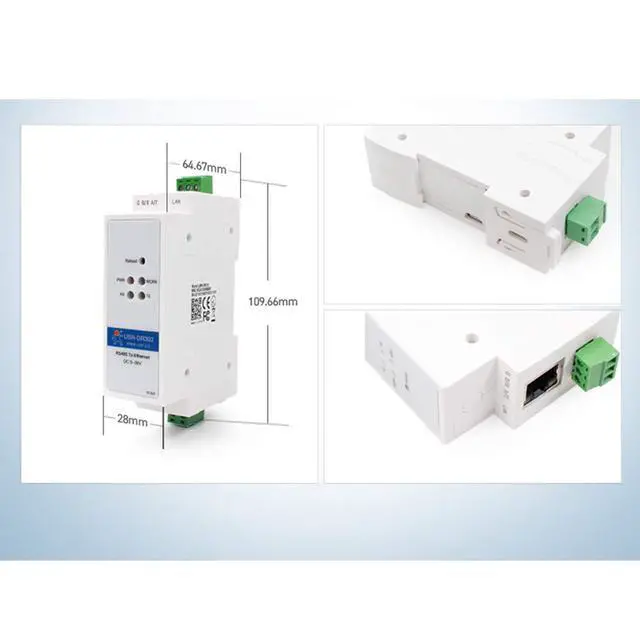

Size: 71.0x60.0x25.0mm
Work Temp: -40 - 85c
Storage Temp: -40 - 105c
Work Humidity : 5% - 95% RH
Storage Temp : 5% - 95% RH
Work Voltage: DC 5.0 - 36.0 V
Work Current: 130mA@5V
Ethernet Port: RJ45,10/100Mbps
Serial Port Baud rate: 600-460.8K(bps)
Serial Port: RS485*1 (Terminal Type)
Network Protocol: TCP/IP, UDP, ARP,ICMP,IPV4
IP Type: Static IP,DHCP
DNS: Support
Configuration: Software, Web-page, AT command Work Mode: TCP Server/TCP Client/ UDP Server/UDP Client Modbus RTU to TCP
Average Transmission Delay: <10ms
Packaging Mechanism: 4 bytes package time 1024 bytes package length
Grade: IP30, 1.5KV
Size: 71.0x60.0x25.0mm
Work Temp: -40 - 85c
Storage Temp: -40 - 105c
Work Humidity : 5% - 95% RH
Storage Temp : 5% - 95% RH
