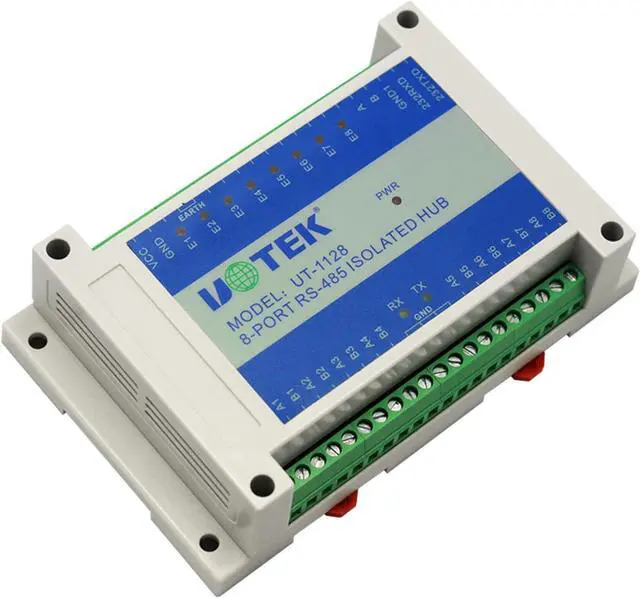

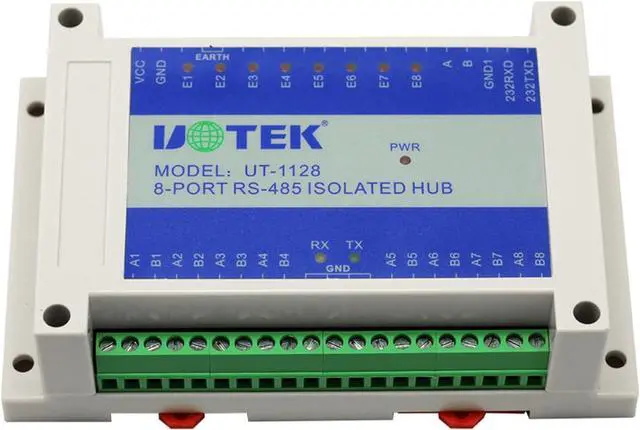

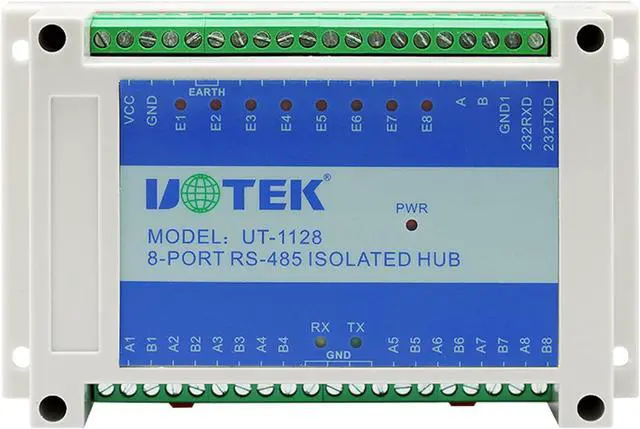

    UOTEK 8 Port RS485 Hub with Isolation RS232 to RS485 Hub Industrial Grade RS485 Serial Converter Hub Din Rail Mountable Hub UT-1128

    Limited time offer, ends 11/10 By ElectroWorks JV

    Be the first to review this product...
    • Interface standards: RS485 isolated hub interface is compatible with RS-232C and RS-485 standards of EIA / TIA. Voltage input: DC12-48V 350Ma
    • Size: 145mm × 90mm × 40mm working mode: Asynchronous half duplex.
    • 11 signal indicators: PWR, TX, RX, E1-E8. Isolation: non-stop isolated voltage 2,500VRMS 500VDC, DC/DC isolated module
    • The transmission rate of RS485 isolated hub can be as high as 115.2Kbps. The maximum transmission distance is 1.2km.
    • Protection: Each wire 15KV ESD protection for RS-232 ports; 1,500W lightning and surge protection for RS-485 ports.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Interface standards: RS485 isolated hub interface is compatible with RS-232C and RS-485 standards of EIA / TIA. Voltage input: DC12-48V 350Ma
    Size: 145mm × 90mm × 40mm working mode: Asynchronous half duplex.
    11 signal indicators: PWR, TX, RX, E1-E8. Isolation: non-stop isolated voltage 2,500VRMS 500VDC, DC/DC isolated module
    The transmission rate of RS485 isolated hub can be as high as 115.2Kbps. The maximum transmission distance is 1.2km.
    Protection: Each wire 15KV ESD protection for RS-232 ports; 1,500W lightning and surge protection for RS-485 ports.
